Liquid Level Switch

Name: Liquid Level Switch
Brand: TRUMEN TECHNOLOGIES PVT. LTD.
Price: 12800.0 INR
Availability: InStock

12800.0 INR/Piece

Get a Price/Quote

Product Details:

Mechanical Life 2 Years
Response Time 1 second Seconds
Number of Module can vary
Max. Current 250mA Milliampere (mA)
Temperature Range -20 to 250 Celsius (oC)
Protection Level IP67/68
Circuit Type PNP, NPN, or NAMUR
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Liquid Level Switch Price And Quantity

Minimum Order Quantity 1 Piece
Price 12800.0 INR/Piece

Liquid Level Switch Product Specifications

Display Type No Display
Number of Module can vary
Current Rating 5 amps at 24VDC or 220VAC
Mechanical Life 2 Years
Response Time 1 second Seconds
Frequency 50 to 60 Hz Hertz (HZ)
Conductor electrode or probe
Usage & Applications Water Treatment, Food and Beverage Industry, Sewage Treatment, Chemical Industry
Features they are compact with a universal power supply, require no calibration, and offer various process connections
Product Type Liquid Level Switch
Protection Level IP67/68
Power Rating 15 to 80 VDC and 15 to 260 VAC
Operating Temperature 250 Celsius (oC)
Rated Current 5 amps at 24VDC or 220VAC Ampere (amp)
Temperature Range -20 to 250 Celsius (oC)
Max. Current 250mA Milliampere (mA)
Color Orange and Steel
Material stainless steel
Mounting Type top mounting and side mounting optional
No Of Poles 1 to 5
Stoke 10
Rated Voltage 12V to 260V AC or DC Volt (V)
Size 3000mm for Rod probe and 20000mm for Rope probe
Cable Type shielded sensor cable
Circuit Type PNP, NPN, or NAMUR
Finish Type stainless steel

Liquid Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wood & Plastic Box
Main Domestic Market All India
Certifications MSME, BIS, ISO, GST, Experience certificates

Product Description

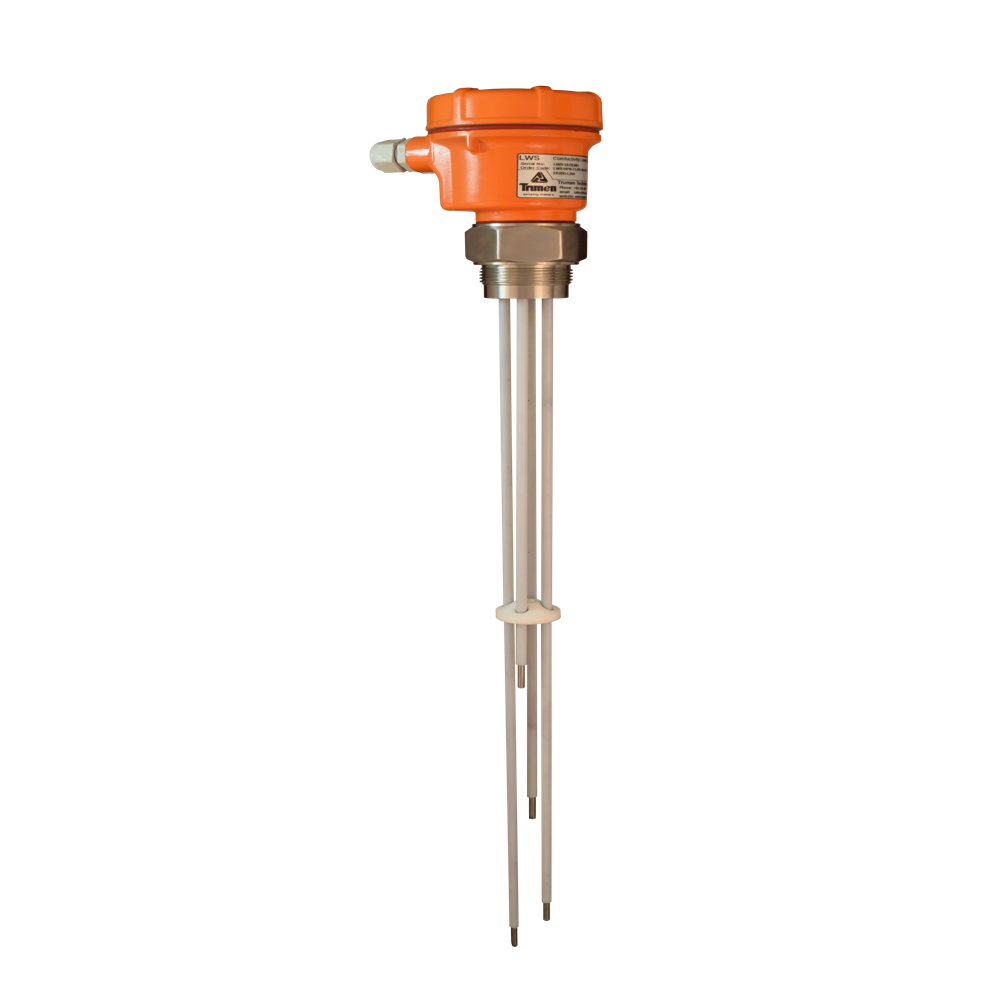

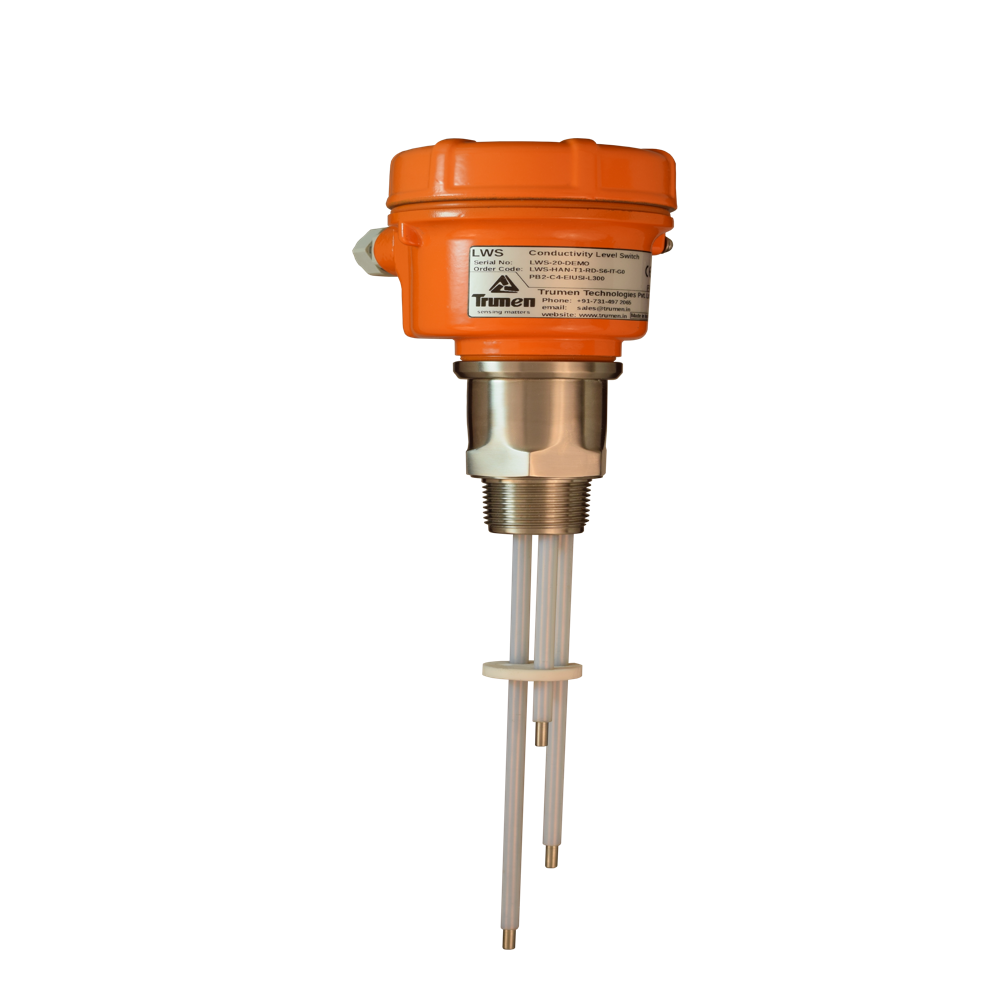

Conductivity Level Switch-LWS

Being a reckoned name in the industry, we are involved in offering an exceptional range of Light Weight Liquid Level Switches. Suitable for conductive liquids like water, this switch is developed utilizing top-notch quality raw material and advanced machinery under the direction of our quality controllers. Also, this switch is obtainable in diverse specifications and can be customized as per precise requirement of clients at reasonable prices. In this Light Weight Liquid Level Switch, no special cable is required for signal transmission.

Features:

Does not need calibration
Compact size
Â Less in power consumption
Â Remote electronic version available on request

Product details

Ambient Temp	-20 to 60 deg C
Material	Stainless Steel
Min Conductivity	20 uSiemens
PNP with DC Supply	12 to 60 VDC
Power Supply	15 to 60 VDC
Probe Length	flush installtion to 3,000mm for rod probe and upto 20,000mm for rope probe
Process Pressure	absolute / max. 5 bar
Process Temp	-20 to 100 deg C
Relay Contact	5 A each @ 24VDC or 220VAC
Universal AC Input	80 to 260 VAC
