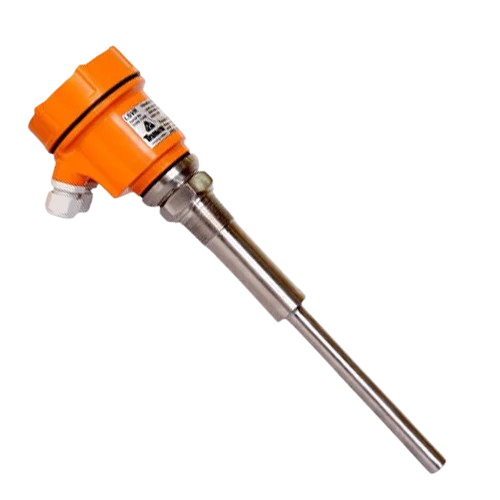

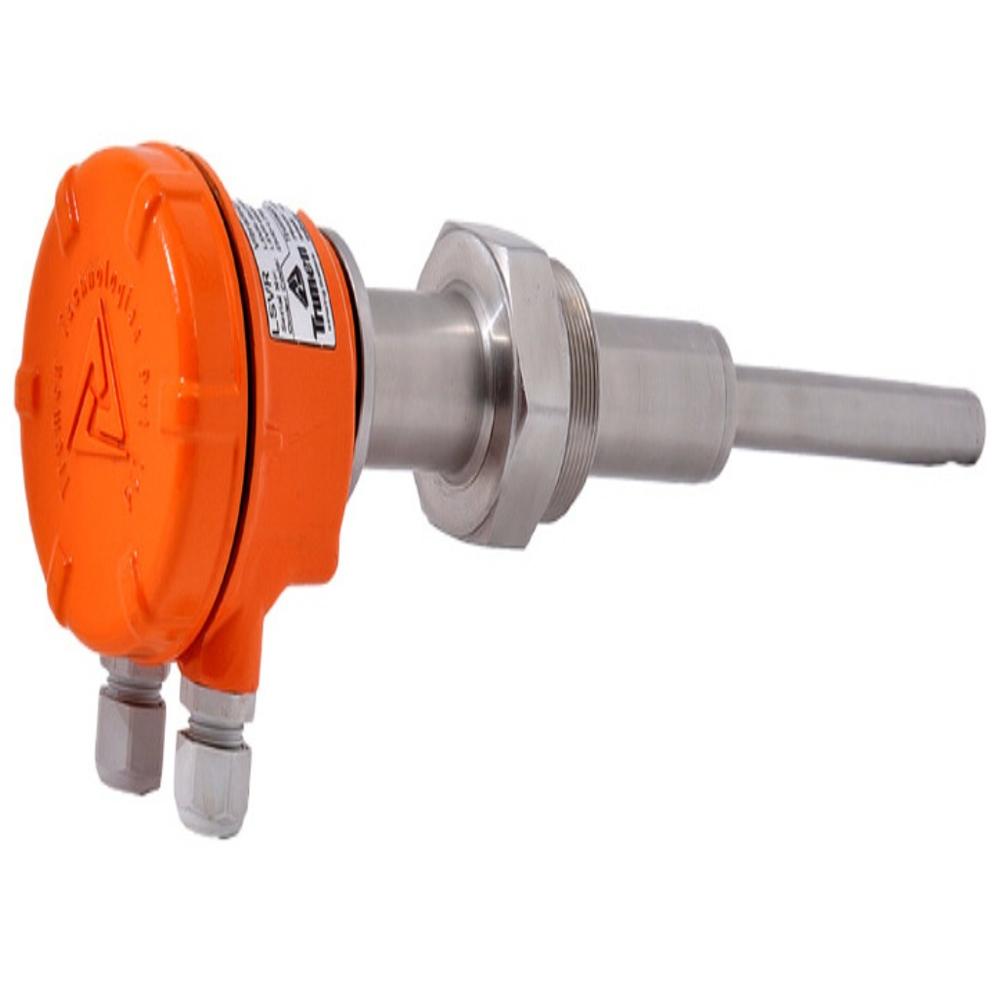

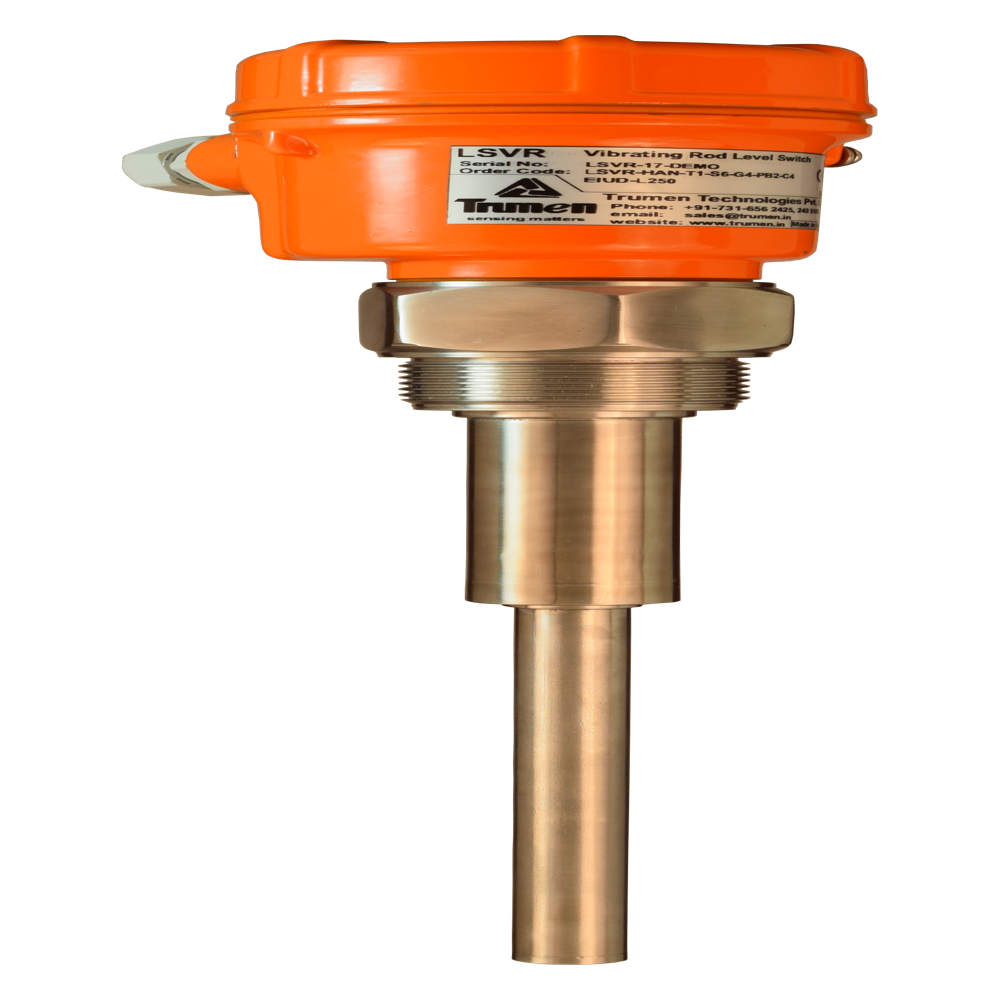

Vibrating Rod Level Switch

Name: Vibrating Rod Level Switch
Brand: TRUMEN TECHNOLOGIES PVT. LTD.
Price: 13800.0 INR
Availability: InStock

13800.0 INR/Piece

Get a Price/Quote

Product Details:

Max. Current 5 Ampere (amp)
Protection Level IP67/68
Temperature Range -20 to 80 Celsius (oC)
Response Time 2 sec Seconds
Product Type Switch for Solids
Power Rating (0.5 to 0.7VA)
Operating Temperature -20Deg C....80DegC Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Vibrating Rod Level Switch Price And Quantity

Minimum Order Quantity 1 Piece
Price 13800.0 INR/Piece

Vibrating Rod Level Switch Product Specifications

Usage & Applications Fly Ash, Coal, Free flowing solid, Cement, Steel
Stoke 10
Color Orange and Silver
Current Rating 5A @ 24VDC or 220VAC
Mounting Type Top/Side
Max. Current 5 Ampere (amp)
Display Type Analog
Operating Temperature -20Deg C....80DegC Celsius (oC)
Material SS-304, SS-316, SS-316L
Temperature Range -20 to 80 Celsius (oC)
Phase Single Phase
Product Type Switch for Solids
Power Rating (0.5 to 0.7VA)
Response Time 2 sec Seconds
Rated Current 5 Ampere (amp)
Protection Level IP67/68
Features Pressure 20Bar, Temperature 150Deg C, Compact size, IP67/68
Size 250mm to 3000mm

Vibrating Rod Level Switch Trade Information

Supply Ability 1 Piece Per Week
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wood & Plastic Box
Main Domestic Market All India

Product Description

https://trumen.in/vibrating-rod-point-level-switch-suppliers.html

Applications of Vibrating Rod Level Switch:

Free flowing powders and granules (size max. 25mm)
Suitable for side as well as top mounting
Minimum and maximum fail safe field selectable
Process temperature max. 150C
Process pressure max. 15 bar
Exd version available-suitable for Gas Group IIC,
T6 as per lEC 60079-1-2007 & lEC 600529-2001

Features of Vibration Rod Level Switch:

Compact size
Universal industrial power supply (15 to 80 VDC & 15 to 260 VAC)
Low power consumption
No calibration required
Customized process connections like Threaded/Flanged/Hygienic etc.
Settable switching delay as a standard feature
Remote electronic version available on request

Vibrating Rod Level Switch Technical Specification:

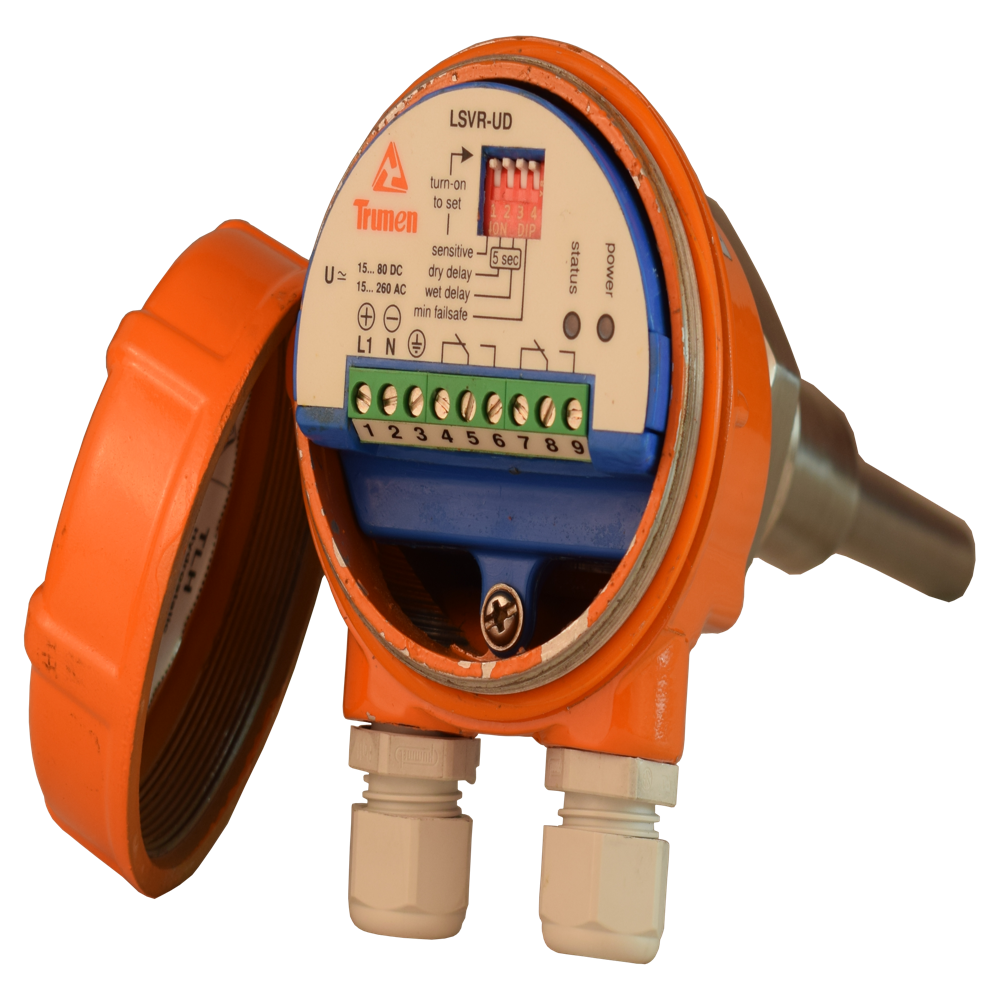

EIUD	Integral Electronics
Supply & Output	Universal Power Supply, DPDT Relay Output 15 to 80 VDC and 15 to 260 VAC 50/60Hz
Relay Type and Rating	Potential Free DPDT Relay Output 5 A each @ 24VDC or 220VAC
EIDP	Integral Electronics for PNP Output
Supply & Output	15 to 60 VDC, PNP
Output Limit	250mA max. Short Circuit Safe.
EIDL	Integral Electronics 4-20mA Loop Powered
Supply & Output	Two Wire DC 8 / 16 mA 15 to 60 VDC
Output Limit	8mA (-1mA max) / 16mA (+1mA max)
ERUD	Remote Electronics
Supply & Output	Universal Supply DPDT relay output 15 to 80 VDC 15 to 260 VAC 50/60Hz
Relay Type and Rating	Potential Free DPDT Relay Output 5 A each @ 24VDC or 220VAC
Sensor Cable	Remote electronics require special cable from fork to controller. 10 meter standard length more available on demand
Min. Density	>=350 gram/litre, not fluidized
Ambient Temp.	-20^oC ... 70^oC (-4^oF ... 158^oF)
Process Temp.	-20^oC ... 80^oC (-4^oF ... 176^oF)
Extended Process Temperature	-30^oC ... 150^oC (-22F ... 302^oF) (extensions & heat sinks required)
Process Pressure	Absolute / max. 15 bar
Wetted Parts	SS 316 or SS 316L
Mountings	NPT / BSP 1", 1", 1", 2" etc Flanged : ANSI/JIS/DIN/ASA/custom
Extensions Tube	SS 304, SS 316, SS 316L
Material & Length	250mm to 3,000mm
