Rotating Paddle Level Switch

Product Description

https://trumen.in/rotating-paddle-point-level-switch-exporter.html

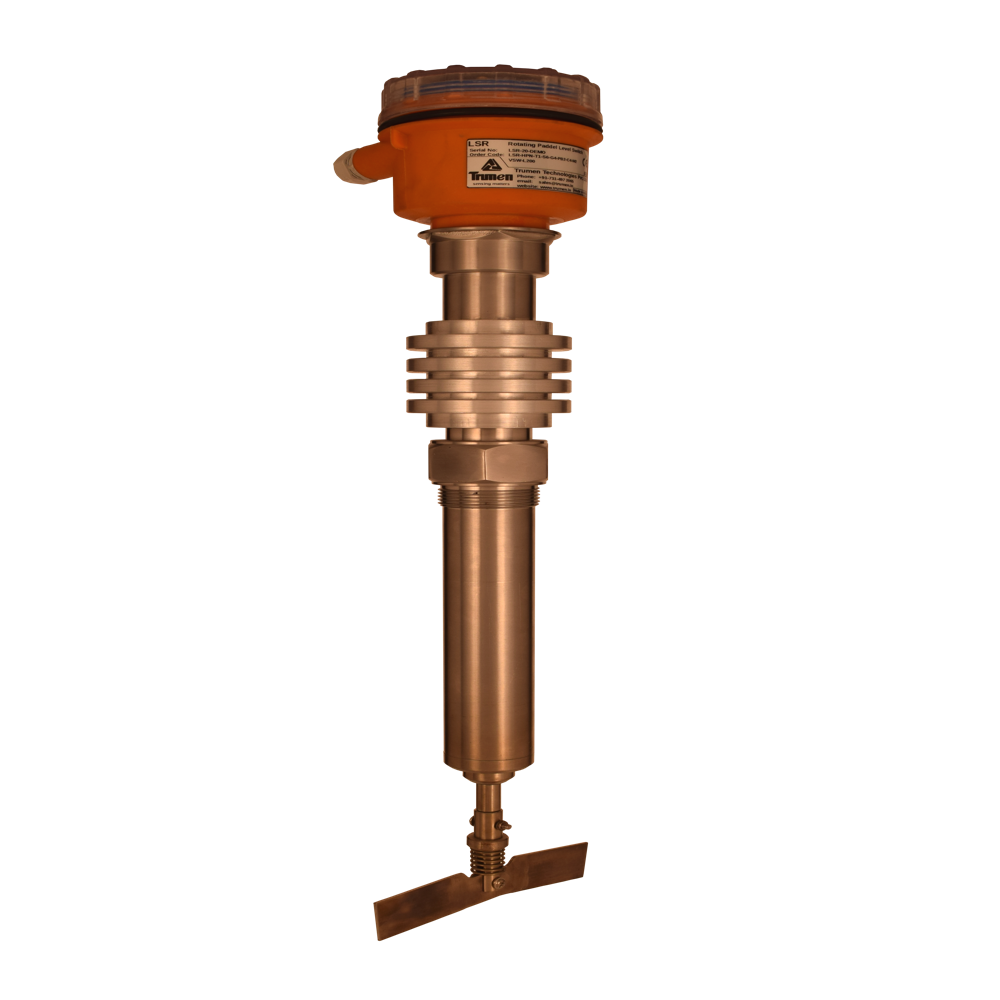

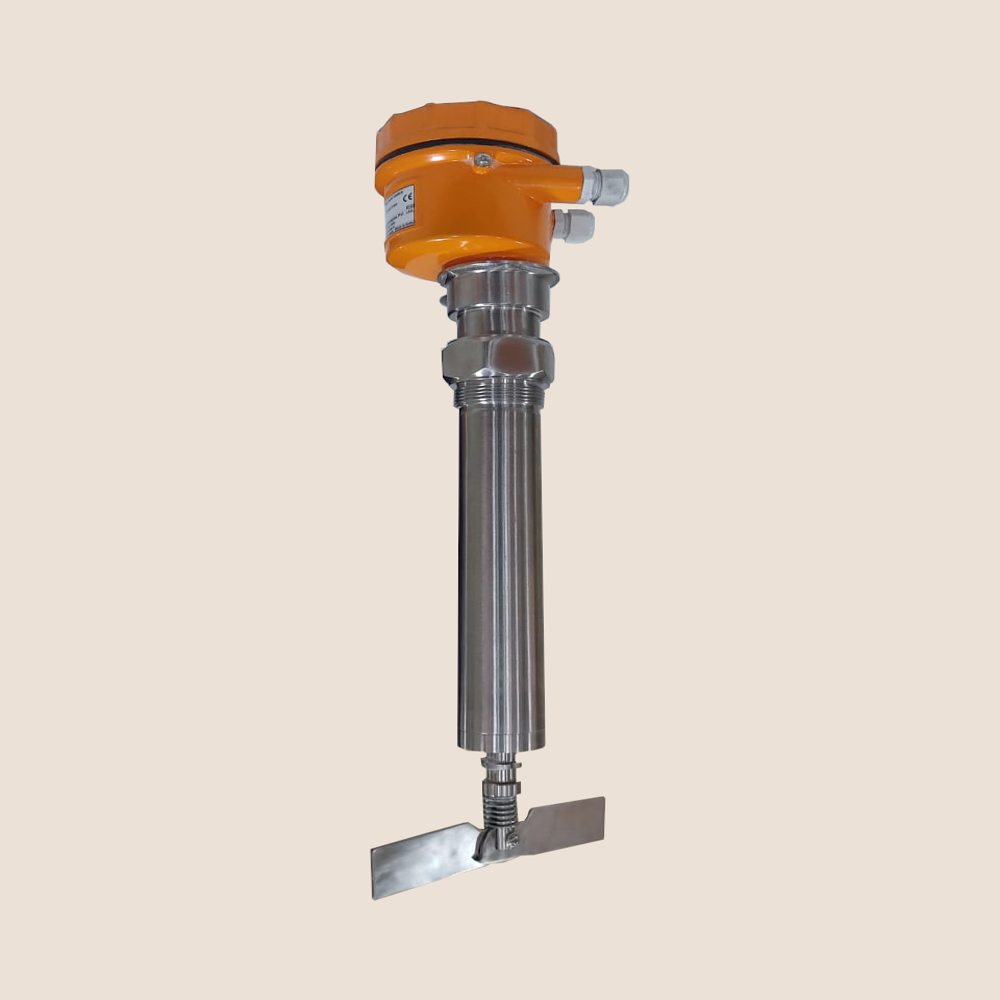

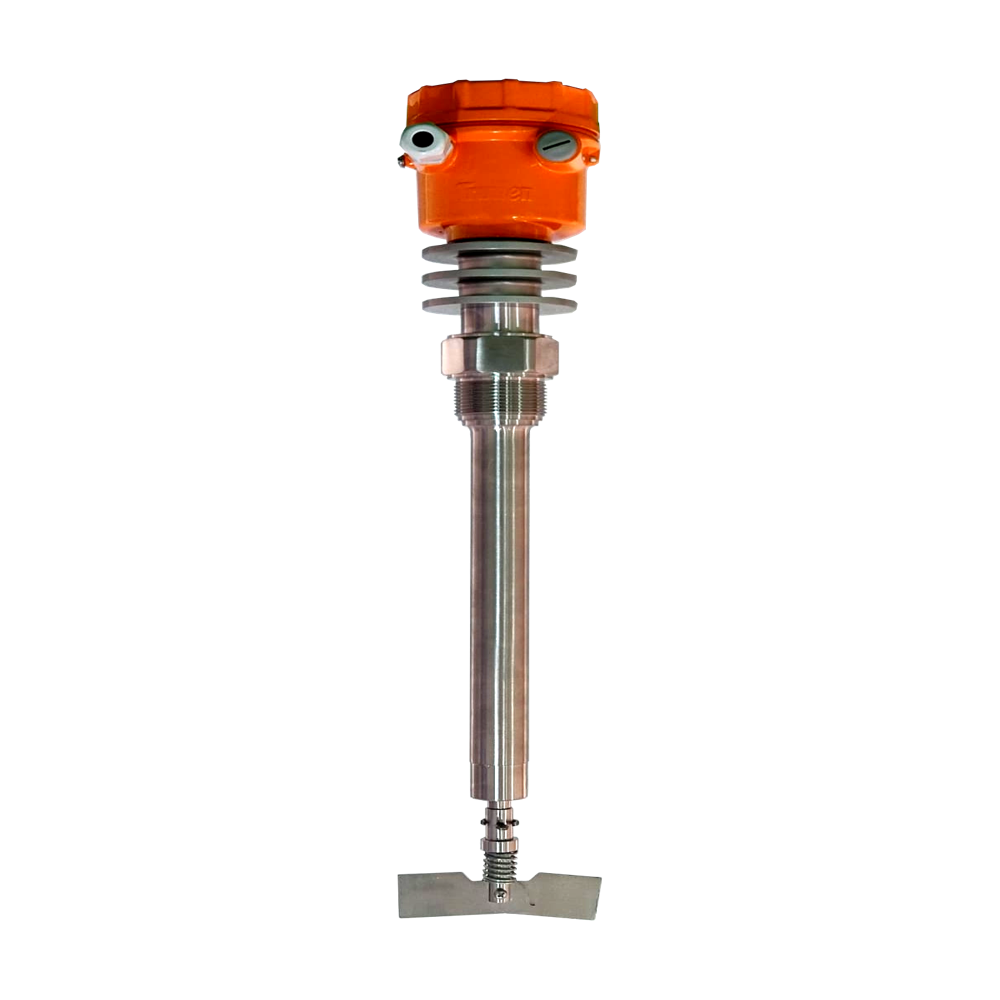

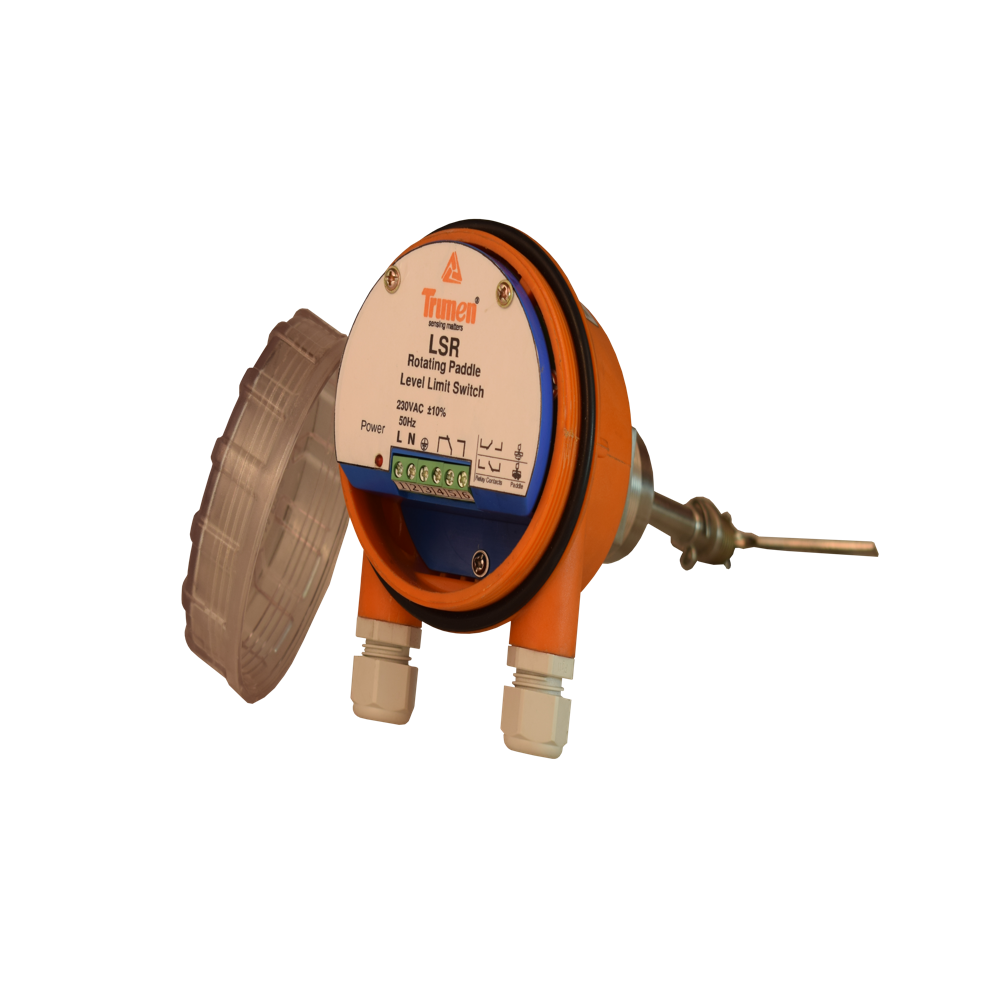

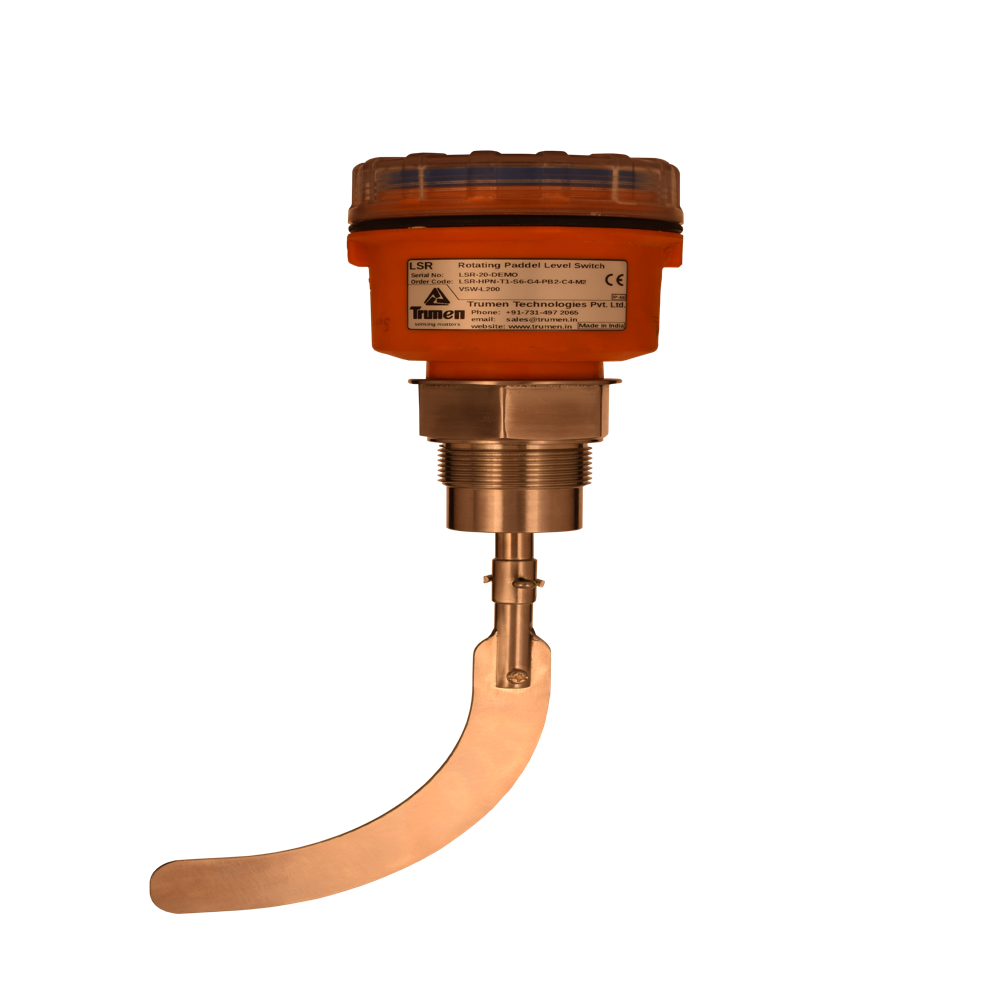

Rotating paddle Level Switch-LSR

In order to meet the various needs of our precious clients, we present a broad classification of 125mm to 1,000mm Rotating Paddle Level Switch that is suitable for free flowing powders and granules. The offered 125mm to 1,000mm Rotating Paddle Level Switch is generally a spring loaded, eccentricaly driven rotating vanes or blades that rotate at a very slow rotation of one revolution per minute. Also, we guarantee quality tested paddle level switch that are highly acclaimed due to their durability all across the nation. Clients can avail the offered 125mm to 1,000mm paddle level switch from us at market leading prices.

Working Principle:

• Rotating Paddle Point Level Switch for Solids are eccentrically controlled movable blades or vanes with spring loaded design. This level switch tends to rotate slowly in every minute by AC synchronous motor.
• Rotating blades or vanes or paddles can rotate without any hindrance in absence of any material. In such condition, the motor is positioned in its proper position by a spring.
• Reverse rotation of movable vanes takes place when its spinning is hindered by a material. This interruption generates stress on the spring which is used to hold the motor.
• Vanes restore their original rotational speed after falling of material level. Stress applied or generated on the spring enables motors to get back to its previous position.


Application:

• Used for fine powder and granule based substances
• Available in top and side mounting design options
• Ability to endure up to 150 degree C processing temperature
• Maximum 3 bar of processing pressure
• Accessible in different fins design based options


Features:

• Solid structure
• Available in 110 VAC/230 VAC power supply based options
• Energy efficient operation
• Calibration free operation
• Long lasting quality
• Consists of spring equipped blades
• Process connection can be availed in tailor made specifications

Technical Specifications:

Supply (M2)	220V AC -/+ 10%, 50/60Hz
Output	Potential Free SPDT Limit Switch
Rating	5 A each  24VDC or 220VAC
Supply (M1)	110V AC -/+ 10%, 50/60Hz
Output	Potential Free SPDT Limit Switch
Rating	5 A each  24VDC or 220VAC
Temperature:
Ambient	-20 deg C - 80 degC (-4 degF - 176 deg F)
Process	-30 degC - 100 degC (-22 deg F - 212 deg F) (Extensions & heat sinks required)
Pressure	Atmospheric
Blade Material	SS 316 or SS 316L
Process	NPT / BSP 3/4", 1", 1 1/4", 1 1/2", 2" etc
Connections	Flanged : ANSI/JIS/DIN/ASA/custom
Paddle guide pipe material	SS 304, SS 316, SS 316L
Max length	125mm to 1,000mm

Reliable Performance in Harsh Conditions

Built to handle extreme temperatures from -30C to 100C, the Rotating Paddle Level Switch ensures reliable operation in both hot and cold environments. Its robust steel construction and IP65 rating offer enhanced resistance to dust and moisture, making it ideal for challenging industrial applications requiring consistent and accurate level detection.


Versatile Installation Options

Engineered for adaptability, this paddle level switch supports top and side mounting, accommodating multiple installation scenarios within silos, hoppers, and vessels. The devices size rangespanning from 100mm to 2,000mmenables it to cater to a variety of operational requirements, contributing to its widespread use in multiple industries.
