Ultrasonic Level Transmitter

Product Description

https://trumen.in/ultrasonic-level-transmitter-manufacturers.html

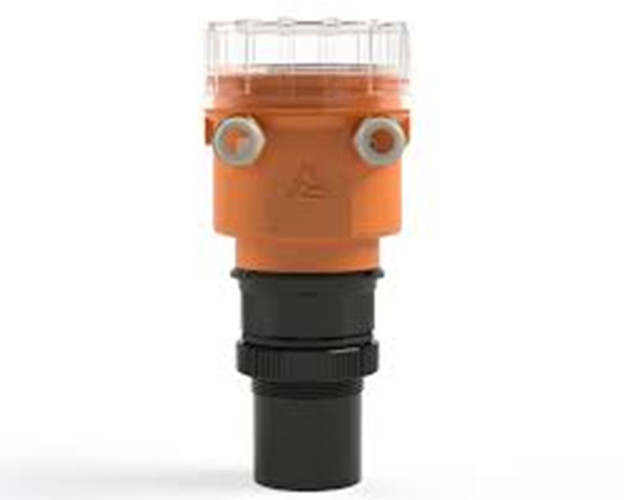

Ultrasonic Level Transmitter-TLU

With the help of our diligent and motivated team of experts, we are able to manufacture, export and supply a quality assured array of Ultrasonic Level Transmitter. By transmitting the ultrasonic waves into the liquid filled tank, it detects the level. Offered product is manufactured using pristine quality components by highly skilled experts. The provided Ultrasonic Level Transmitting Device precisely measures without affecting the densities, bulky nature, viscosity and porosity of objects.

Key Points:

• Mounted at the top of tank
• It consumes less energy
• Hassle free performance

Working Principle:

• Sound wave technology of this Ultrasonic Level Transmitter enables it to detect precise level of slurries, solid or liquid. Apart from its volume measurement job, this instrument is also used to keep a track on exact volume of passed substances in lift stations and open channel flow level.
• This transmitter is also used for managing pump and also for determining differential level.
• One of its common characteristics is Dead Band or maximum measuring distance. It is basically short range of distance (ahead of its sensor) that this transmitter is incapable of measuring.

Applications of Ultrasonic Level Transmitting Device:

• Used for non contact based measurement of large amount of pastes, liquids and coarse substances without any interruption
• Useful for determining flow in open channels
• Up to 30m range in case of liquid
• -40 degree C to 800 degree C process temperature
• Maximum 3 bar of process pressure

Ultrasonic Level Transmitter Features:

• LCD display arrangement
• 1 mm minimum level of resolution
• Easy to manage parameters
• Usage of intelligent signal processing technology
• Plastic made durable enclosure with IP67 protection rating



Ultrasonic Level Transmitting Device Technical Specifications-TLU

Measurement Type	Ultrasonic non-contacting
Measuring Range	5m/10m/15m/20m/30m/40m/50m/60m/70
Accuracy	0.25% F.S, 0.5% F.S, 1.0% F.S
Resolution	3 mm or 0.1% of F.S
Output Analog	4-20 mA- 2 wire( Load Resistance =510 ) 4-20 mA- 2 wire( Load Resistance =250 )
Output option	RS 485, Relay/ Alarm
Power Supply	24V DC, 220 VAC +/- 10% option
Display	LCD, 4 Digit
Display Unit	mm, cm, m
Dead Band	25 cm (min.)
Process Temp.	-20 to +70 degree C(Sensor), -20 to +60 degree C(LCD)
Temp. Comp.	-20 to +60 degree C
Pressure	< 1 bar
Protection Class	IP 65
Process mount	Screwing with thread M 48x2/M60x2/M78x2/G2/Flange
Relay/alarm output(option)	Screwing with thread M 48x2/M60x2/M78x2/G2/Flange alarm for high and low level AC 250V/8A or DC 30V/5A
Weight	3 kg (Not include cable)

Engineered for Extreme Conditions

This ultrasonic level transmitter stands out for its ability to function seamlessly across vast temperature extremes, ranging from icy cold -40C up to scorching 800K. Its stainless steel construction, explosion-proof design, and IP65 protection rating make it highly suited for rigorous industrial settings, including chemical plants and sewage treatment facilities. The device is engineered for reliable operation in both indoor and outdoor environments.


High Performance and Flexible Connectivity

Benefit from a transmitter that delivers 0.2% measurement accuracy, supports both 24V DC and 220V AC power supplies, and offers versatile output options such as RS232, RS485, and Modbus. The unit is equipped with a clear analog display and user-friendly menus for straightforward configuration. Its scalable installation, with multiple threading or flange choices, accommodates varied industrial requirements.
