Capcitance Points Level Switch

12300.0 INR/Piece

Get a Price/Quote

Product Details:

Protection Level IP-67
Display Type No Display
Operating Temperature 300 Celsius (oC)
Usage & Applications Oil, Chemical, Water, WFI, STP, WTP
Features Compact size, Fast switching, Threaded / Flanged / customized process connections
Circuit Type Electrical
Mechanical Life 2 Years
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Capcitance Points Level Switch Price And Quantity

Minimum Order Quantity 1 Piece
Price 12300.0 INR/Piece

Capcitance Points Level Switch Product Specifications

Usage & Applications Oil, Chemical, Water, WFI, STP, WTP
Operating Temperature 300 Celsius (oC)
Size Customized
Stoke 10
Max. Voltage 15-60 VDC Volt (V)
Features Compact size, Fast switching, Threaded / Flanged / customized process connections
Circuit Type Electrical
Display Type No Display
Protection Level IP-67
Mounting Type Top/Side
Max. Current 5 Ampere (amp)
Material SS
Temperature Range 300 Celsius (oC)
Product Type Capcitance Points Level Switch
Mechanical Life 2 Years
IP Rating IP-67
Color Orange And Silver

Capcitance Points Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 3 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details as per product dimension
Main Domestic Market All India
Certifications MSME, BIS, GST, ISO, Performance certificates, RoHS Certification

Product Description

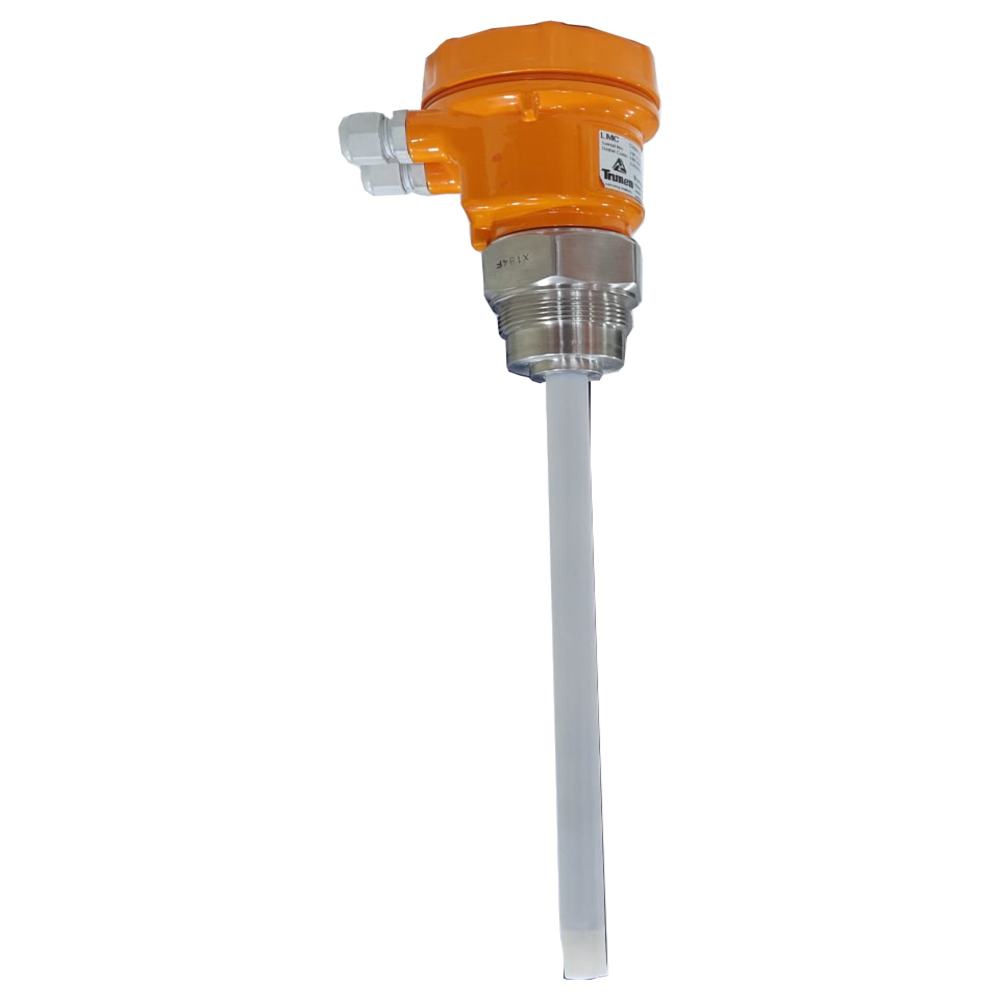

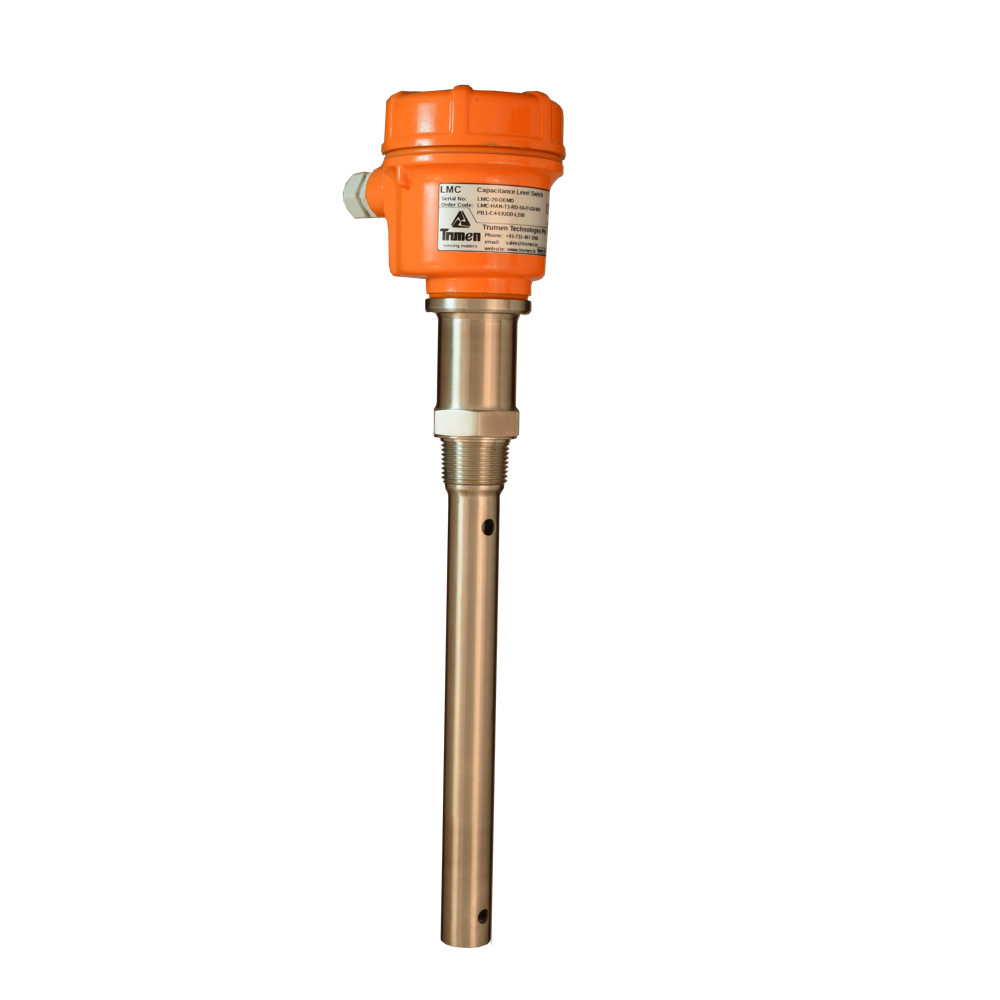

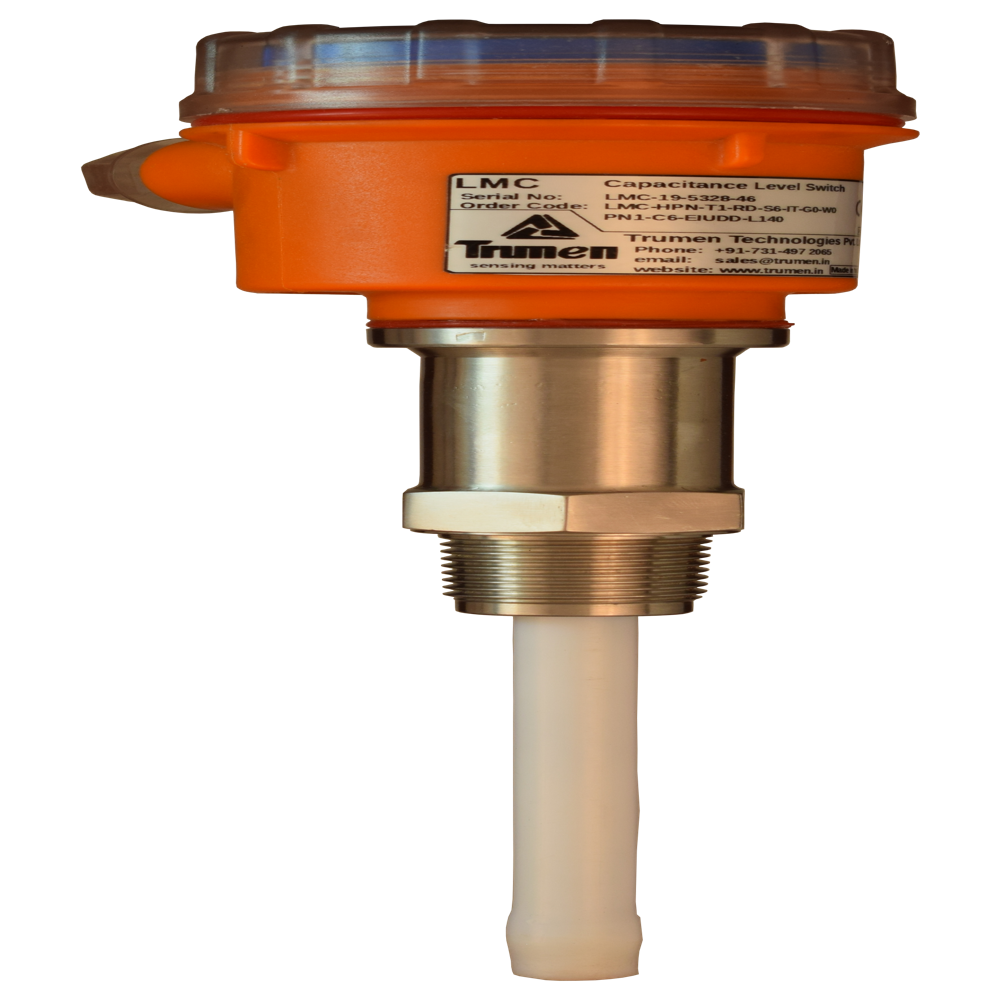

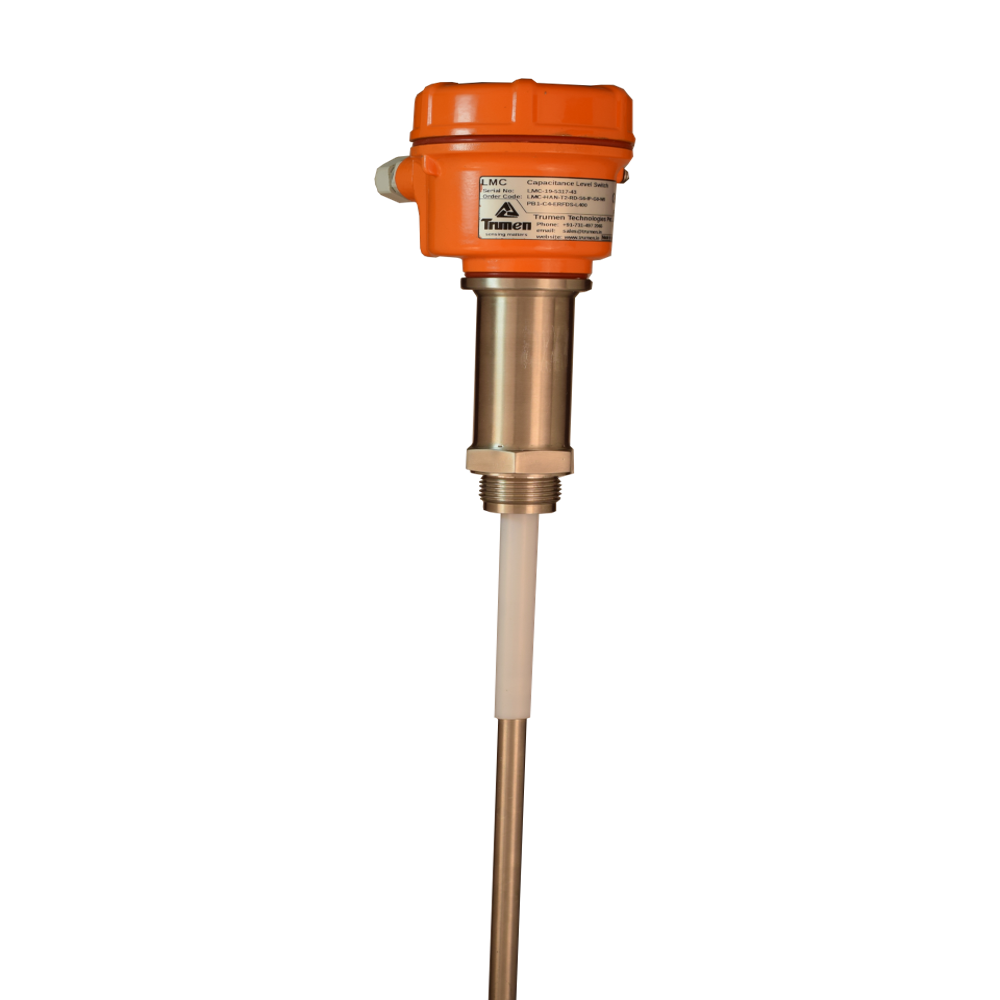

Capacitance Points Level Switch-LMC

There are different types of Capacitance Points Level Switch, which comprise very sensitive components. In the absence of anything to measure, this static level switch functions as an analog for multiplying the dielectric constant of the probe diameter and air. A switch used to set a level is set with the level's material's dielectric constant, and this difference translates into the limit switch's switching value. The Capacitance Points Level Switch is the ideal option for loose solids and liquids, and it is equipped with the option for side or top mounting.

Product details

Ambient Temperature	-20 to 60 deg C
Flexible Rope Length	100mm to 20,000mm
Min Dielectric Constant	1.6
Output Limit	250 mA
Power supply	15 to 80 VDC
Process pressure	Max. 15 bars
Process temperature	-20 to 100 deg C
Relay Rating	5 A
Rigid Rod Length	50mm to 3,000mm
