Level Sensing Controllers For Packaging Machines

Level Sensing Controllers For Packaging Machines

Get a Price/Quote

Product Details:

Mechanical Life 2 Years
Finish Type harsh environments, high temperatures
Number of Module single, dual, triple, quadruple, or five-rod probes
Temperature Range -40C to 260C Celsius (oC)
Response Time 2 Seconds
Rated Voltage 220V AC Volt (V)
Max. Current 24VDC or 220VAC Volt (v)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Level Sensing Controllers For Packaging Machines Price And Quantity

Minimum Order Quantity 1 Piece

Level Sensing Controllers For Packaging Machines Product Specifications

Material SS
Size 125-3000 mm
Stoke 10
Mounting Type Top/Side
Product Type Vibrating Fork Type Level switch
Rated Voltage 220V AC Volt (V)
Response Time 2 Seconds
Temperature Range -40C to 260C Celsius (oC)
Finish Type harsh environments, high temperatures
Mechanical Life 2 Years
Number of Module single, dual, triple, quadruple, or five-rod probes
Max. Current 24VDC or 220VAC Volt (v)
Weight 1.2 Kilograms (kg)
Current Rating 24VDC or 220VAC
Color Orange
Operating Temperature max 250C
Max. Voltage 15 to 80 VDC & 15 to 260 VAC
Circuit Type Electronic Type
Protection Level IP 67/68

Level Sensing Controllers For Packaging Machines Trade Information

Payment Terms Cheque, Cash Against Delivery (CAD), Cash in Advance (CID)
Supply Ability 250 Piece Per Month
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details As per product dimensions
Main Domestic Market All India
Certifications MSME, ISO, GST

Product Description

https://trumen.in/vibrating-fork-point-level-switch-manufacturers.html

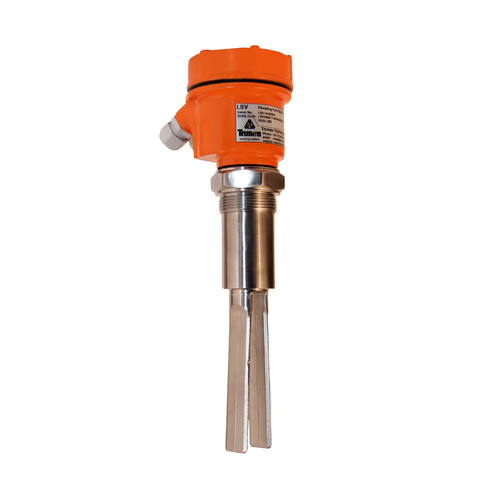

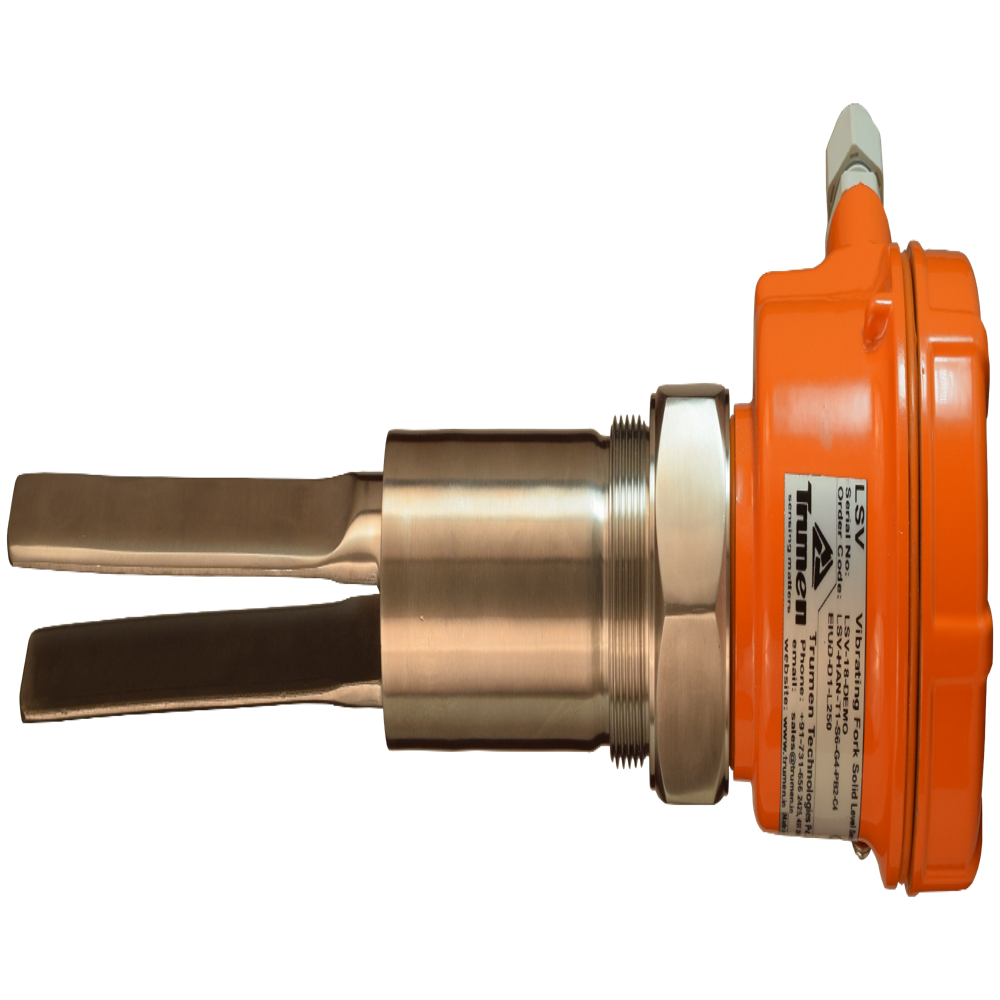

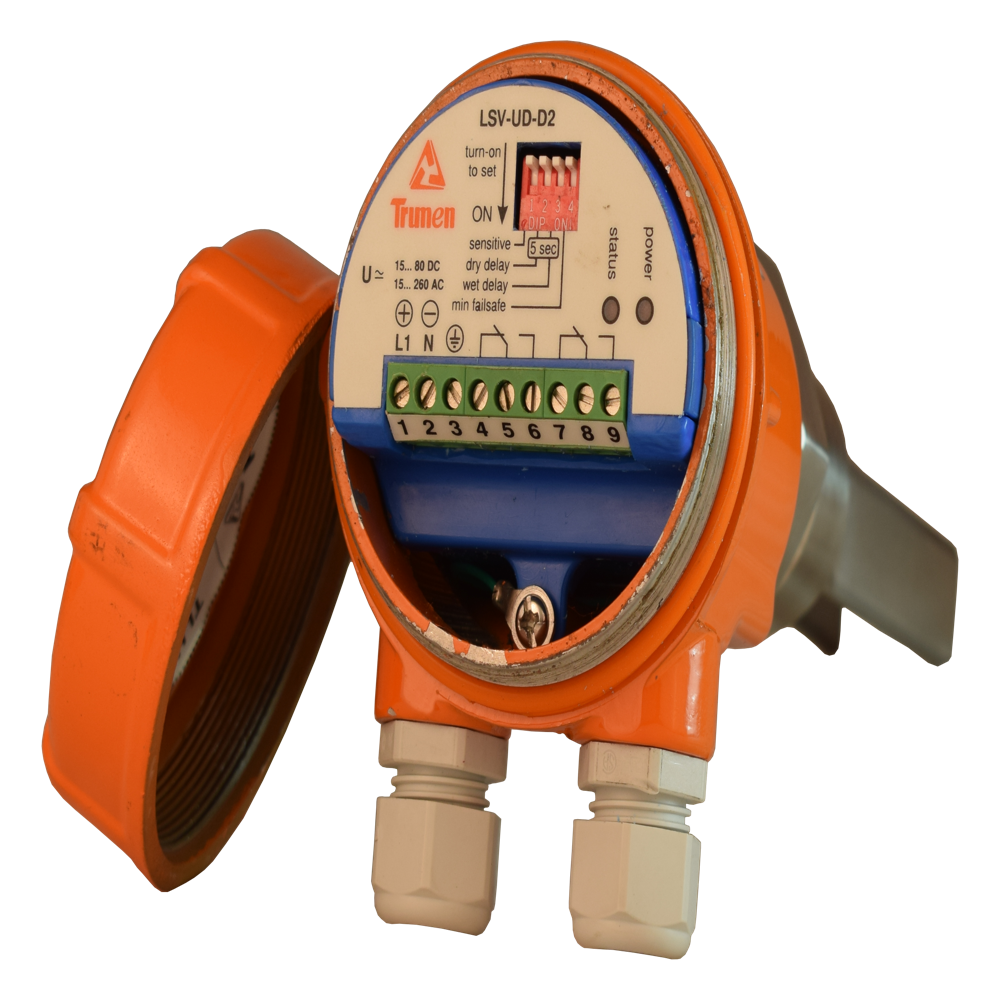

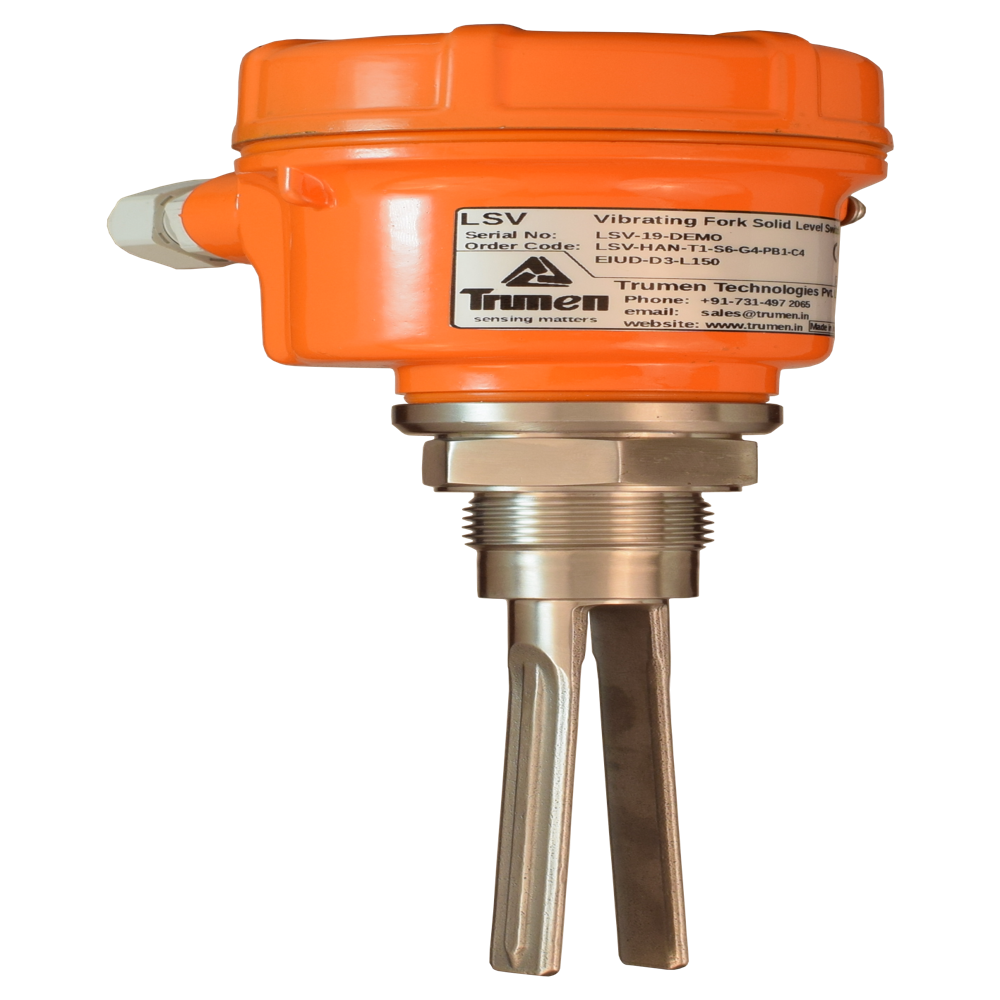

Vibrating Fork Level switch For solid-LSV

Trumen vibrating fork point level switch model LSV is suitable for solid and powder even with low bulk density material and use in all process industries like cement, pvc, food grains, coal, steel and many more. Trumen model LSV is available in 3 different fork length(s) depending upon the material bulk density i.e. D1 (150mmm), D2 (125mm) and D3 (100mm). All these three different length of tuning fork have different operating frequencies depending upon their length.

Features:

Compact size
Fast switching response 2 sec (0.8 sec and 1.5 sec available on demand)
Low power consumption (0.5 to 0.7VA)
Calibration-less operation Durable
construction Immune to External Vibrations
Tropicalized & potted electronics module
Suitable for side as well as top mounting Minimum and maximum failsafe field selectable
Ingress protection: IP 67/68 (as per IS/IEC 60529:2001)
Process temperature max 250C
Process pressure max. 20 bar
1" threaded mountings available
Threaded / flanged / customized process connections
Remote electronics with standard 10 meters cable length

Product details

Cable Gland

2 X PG-11

Model
LSV

Power supply

15 to 80 VDC & 15 to 260 VAC

Switching response

2 sec

Relay o/p

1 DPDT potential free relay contact output

Retransmission

4-20mA

Signal Input

Analog Signal from Transmitter

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Level Switches' category

Liquid Level Switch Price : 12800.0 INR/Piece Minimum Order Quantity : 1 Product Type : Liquid Level Switch Material : stainless steel Color : Orange and Steel Temperature Range : 20 to 250 Celsius (oC) Rated Voltage : 12V to 260V AC or DC Volt (V) Max. Voltage : 15 to 80 VDC and 15 to 260 VAC Protection Level : IP67/68 Max. Current : 250mA Milliampere (mA) Size : 3000mm for Rod probe and 20000mm for Rope probe Stoke : 10 Operating Temperature : 250 Celsius (oC) Display Type : No Display Circuit Type : PNP, NPN, or NAMUR Current Rating : 5 amps at 24VDC or 220VAC IP Rating : IP67/68 Power Rating : 15 to 80 VDC and 15 to 260 VAC Mounting Type : top mounting and side mounting optional Rated Current : 5 amps at 24VDC or 220VAC Ampere (amp) Features : they are compact with a universal power supply, require no calibration, and offer various process connections Usage & Applications : Water Treatment, Food and Beverage Industry, Sewage Treatment, Chemical Industry Frequency : 50 to 60 Hz Hertz (HZ) Response Time : 1 second Seconds Mechanical Life : 2 Years No Of Poles : 1 to 5

Send Inquiry

Capacitance Points Level Switch Price : 13500.0 INR/Piece Minimum Order Quantity : 1 Product Type : Level Switch Material : SS Color : Orange And Silver Temperature Range : 20 to 100 Celsius (oC) Rated Voltage : 15 to 80 VDC and 15 to 260 VAC Volt (V) Max. Voltage : 15 to 80 VDC Volt (V) Protection Level : IP67/68 Max. Current : 5 Amps Size : Compact in size Stoke : Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 20,000mm Operating Temperature : 100 Celsius (oC) Display Type : No, External indication LED available Circuit Type : Electronic Type Current Rating : 5 amps at 24VDC or 220VAC IP Rating : IP 67/68 Power Rating : 15 to 80 VDC and 15 to 260 VAC Mounting Type : Top and side Rated Current : 5 Milliampere (mA) Features : Compact size, Low power consumption, Easy calibration via DIP switch, Process temperature max 600 C, Process pressure max. 20 bar Usage & Applications : point level detection in both liquids and solids, applicable across various industries. Response Time : 1 sec No Of Poles : No Of Poles

Send Inquiry

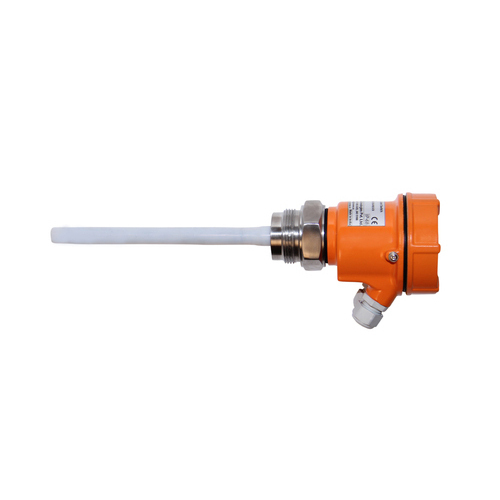

PTFE Capacitance Level Switch Price : 10900.0 INR/Piece Minimum Order Quantity : 1 Product Type : Level Switch Material : Stainless Steel Color : Orange And Silver Temperature Range : Max 600 degree celsius Celsius (oC) Rated Voltage : 15 to 80 VDC and 15 to 260 VAC Max. Voltage : 15 to 80 VDC or 15 to 260 VAC Protection Level : IP67/68 Max. Current : 15 to 80 VDC Volt (v) Size : 125mm to 3000mm Stoke : 10 Operating Temperature : 20C to 600C Display Type : No IP Rating : IP 67/68 Power Rating : 15 to 80 VDC and 15 to 260 VAC Rated Current : 5mA at 24VDC or 220VAC Features : easy dip switch calibration, customized process connections, and remote electronics options Usage & Applications : detecting levels of liquids, solids, and powders in tanks and vessels Frequency : not a directly adjustable parameter
