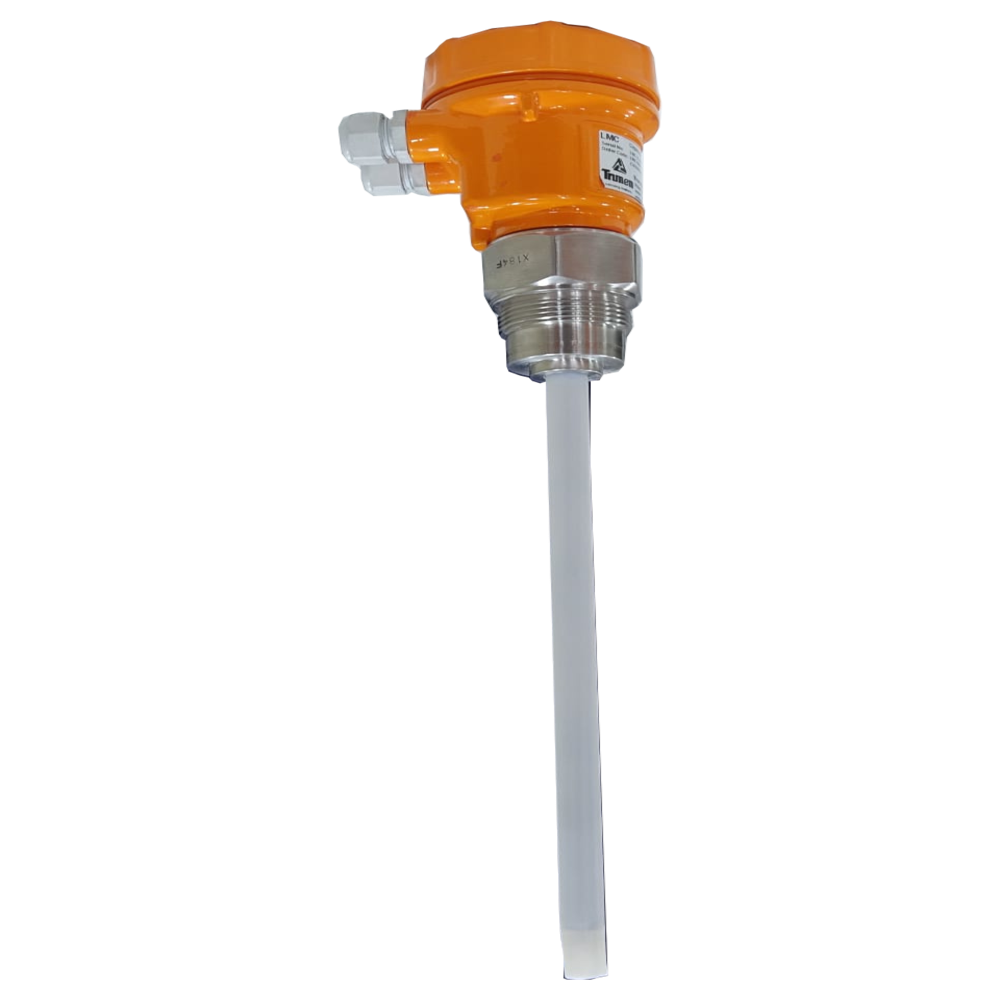

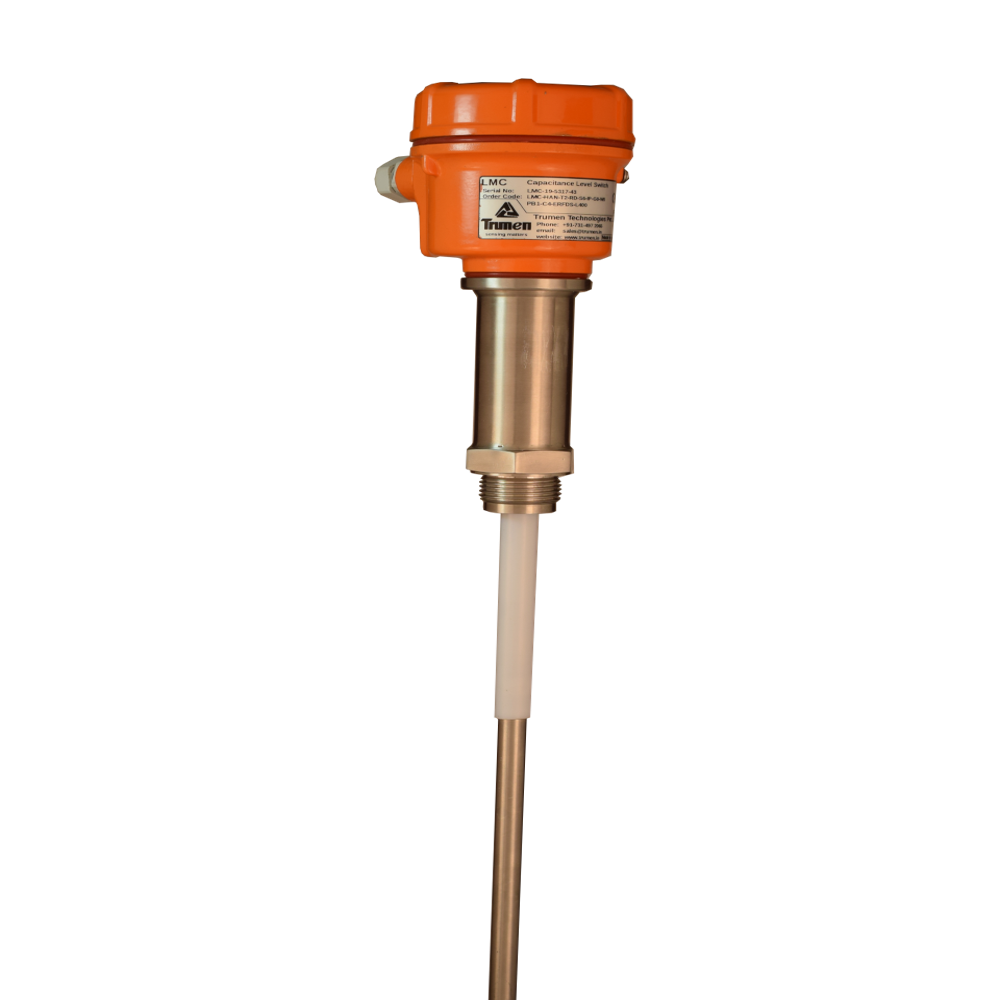

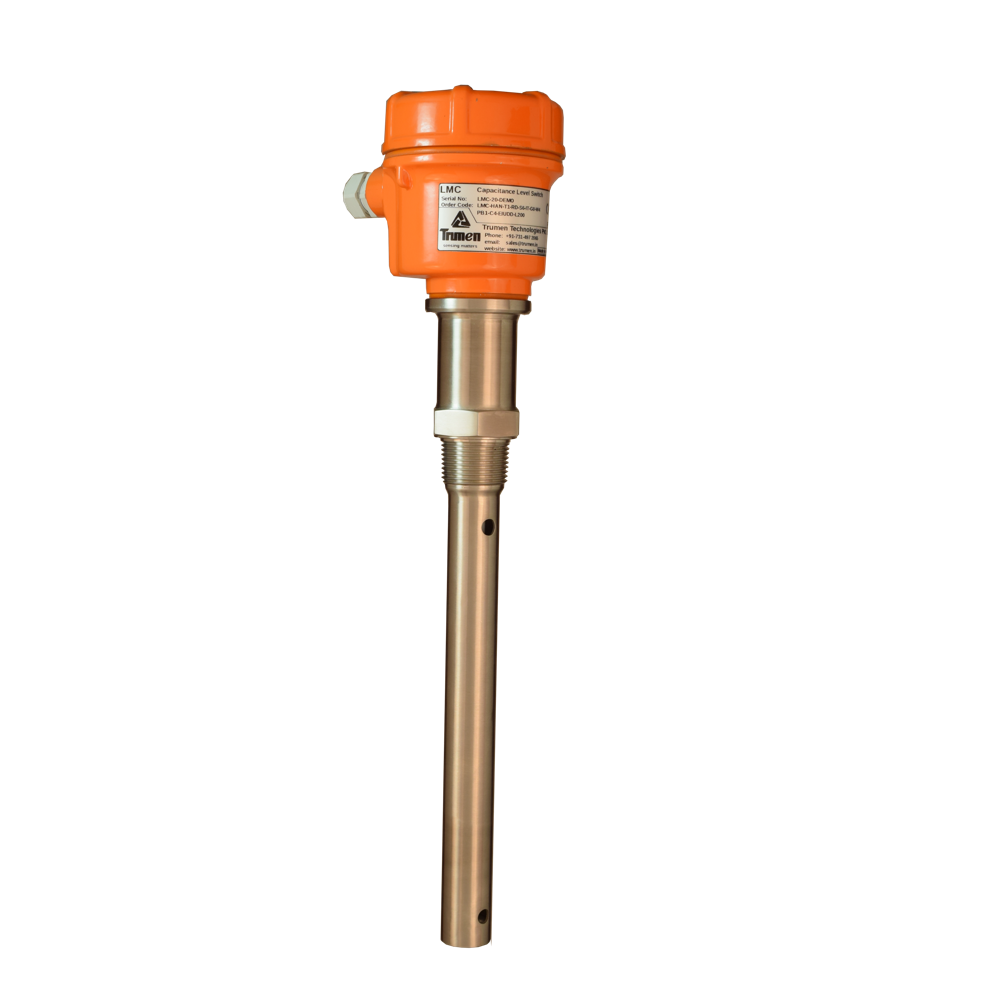

Capacitance Point Level Switch

Name: Capacitance Point Level Switch
Brand: TRUMEN TECHNOLOGIES PVT. LTD.
Price: 14000.0 INR
Availability: InStock

14000.0 INR/Piece

Get a Price/Quote

Product Details:

Protection Level IP67/68
Temperature Range -20 to 60 Celsius (oC)
Circuit Type electronic circuits
Max. Current 5 Ampere (amp)
Rated Voltage 260 Volts AC , 15-80 Volts DC Volt (V)
Product Type Points Level Switch
Power Rating 15 to 80 VDC and 15 to 260 VAC (50/60 Hz)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Capacitance Point Level Switch Price And Quantity

Minimum Order Quantity 1 Piece
Price 14000.0 INR/Piece

Capacitance Point Level Switch Product Specifications

Current Rating 5 A at 24 VDC or 220 VAC
Mounting Type Top/Side
Max. Voltage 260 VAC Volt (V)
Temperature Range -20 to 60 Celsius (oC)
Phase Single Phase
Operating Temperature -20 C ... 100 C Celsius (oC)
Stoke 10
Usage & Applications Water, Paints, Animal feed, Rice plants, Soya plants, Dye powder, Edible oil, Milk powder
Protection Level IP67/68
Power Rating 15 to 80 VDC and 15 to 260 VAC (50/60 Hz)
Display Type Analog
Color Orange
Features Compact size, Fast switching response, Process temperature max 600 C, Process pressure max. 20 bar
Frequency 10-55Hz Hertz (HZ)
Product Type Points Level Switch
Circuit Type electronic circuits
Size Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 20,000mm
Max. Current 5 Ampere (amp)
Rated Voltage 260 Volts AC , 15-80 Volts DC Volt (V)
Material SS 316, SS 316L, PTFE, Part ceramic

Capacitance Point Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 120 Piece Per Month
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wood & Plastic Box
Main Export Market(s) Asia, Eastern Europe, Africa
Main Domestic Market All India
Certifications MSME, ISO, GST, BIS, Experience letter

Product Description

https://trumen.in/capacitnace-point-level-switch-manufacturers.html

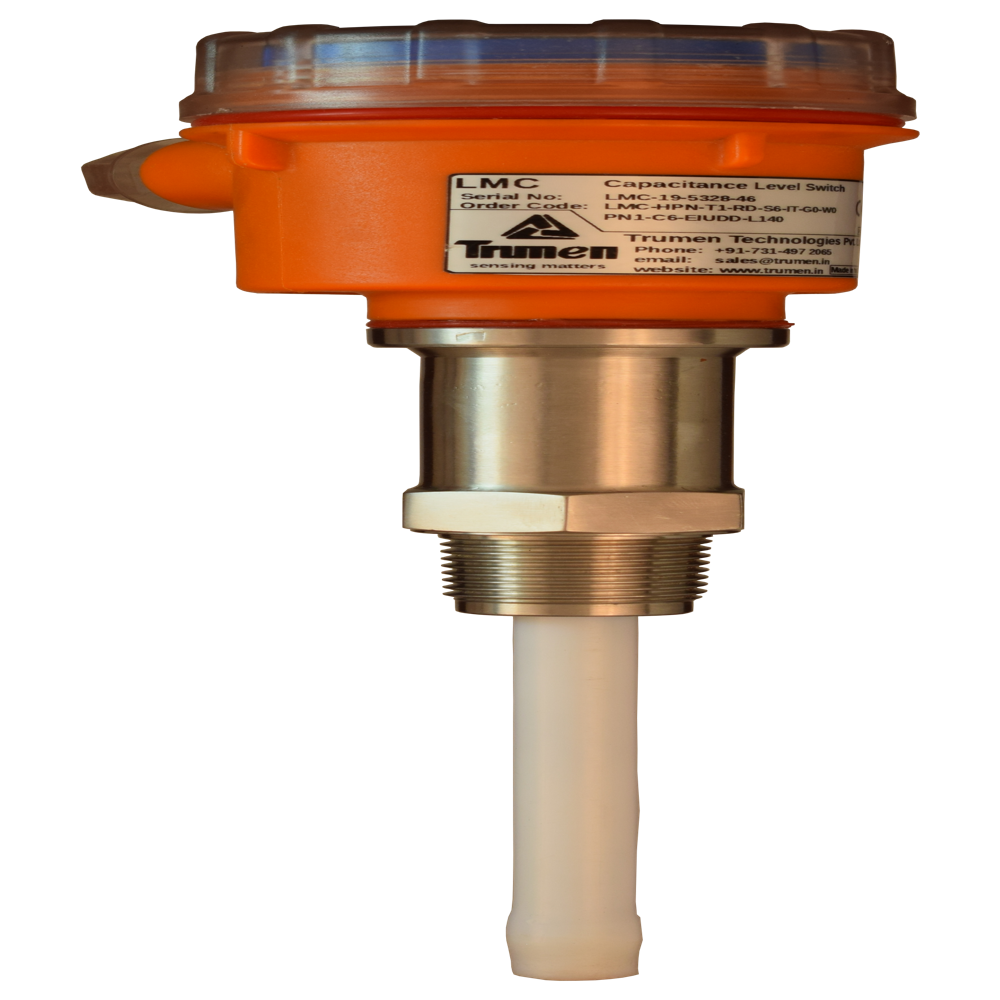

Capacitance level switch -LMC

Working Principle of Capacitance Point Level Switch:

LMC Capacitance Points Level Switch consists of highly sensitive parts that include
a.Sensing rope or rod depending on application type
b.Metallic Earth extension tubes
This static level sensor acts as analogical multiplication of dielectric constant of air (air)1} and probe diameter in case there is no material is present.
In presence of material, its dielectric constant {(material)>2} is used to multiply the level switch.
This difference in capacitance value is converted into switching value of limit switch.

Applications of Capacitance Point Level Switch:

Perfect for free flowing solids and liquid substances
Available with top and side mounting facility based option
Single probe based design with pump or multipoint or single point switch controlling arrangement
Facility to select maximum and minimum fail safe value
With having ceramic insulation arrangement, it can endure up to 600 degree C processing temperature
Up to 15 bar of process pressure
Coated with PTFE to avoid conductive and corrosive fluids

Capacitance Point Level Switch Features:

Solid structure
Standard industrial power supply that ranges between 15 to 260 VAC and 15 to 80 VDC
Energy efficient operation

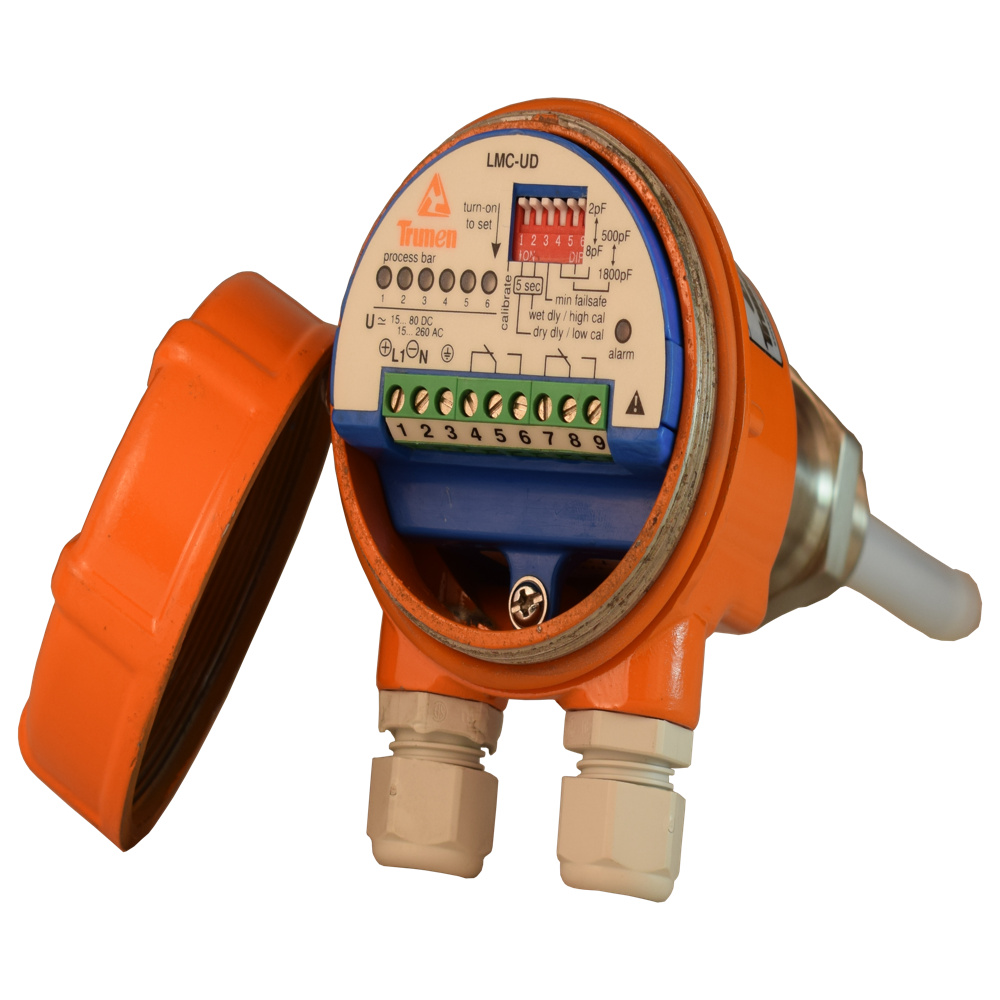

Trouble free calibration of dip switch
Process connections type ( hygienic/flanged/threaded) can be custom made
We also offer this product in remote controlled based version on demand.
Exd variant is also accessible and this version is perfect for gas group IIC (hazardous gases) T6 as specified by IEC 600529-2001 and IEC 60079-1-2007.

Product details

Ambient Temp	-20 to 60 deg C
High Temperature Probes	600 deg C
Max Viscosity	10,000 cStokes (= cPose/(g/cm3)) (Higher viscosity available on request)
PNP with DC Supply	12 to 60 VDC
Process pressure	Max. 20 bar
Process Temp	-20 to 80 deg C
Sensor Cable Length	10 meter
Two wire AC with Series Relay	18 to 260 VAC
Universal In DPDT Output	15 to 80 VDC
Material	Stainless Steel
Brand	Trumen

Reliable Level Detection Across Industries

Engineered for reliability, this level switch works effectively with a diverse range of materials, including water, powders, and viscous liquids. Its broad compatibility makes it an optimal choice for sectors such as food, agriculture, chemicals, and manufacturing. Designed for ease of installation on both top and side tank mounts, you can trust it for continuous level monitoring and process control.

Advanced Features for Maximum Efficiency

The Capacitance Point Level Switch boasts a compact size and fast switching response, enabling efficient filling, emptying, or monitoring of containers. It supports process pressures up to 20 bar and delivers dependable performance at frequencies between 10 and 55 Hz. With flexible probe optionsrigid rods (50mm to 3,000mm) and ropes (100mm to 20,000mm)this device offers customization for different tank sizes and media types.

FAQs of Capacitance Point Level Switch:

Q: How does the Capacitance Point Level Switch function in various applications?

A: The switch operates by detecting changes in capacitance caused by the presence or absence of materials like water, powders, or oils around its probe. This enables accurate point-level monitoring for storage and process tanks across industries such as food, chemical processing, and feed manufacturing.

Q: What materials and environments is the level switch designed for?

A: This device is crafted from high-grade SS 316, SS 316L, PTFE, ceramic, and steel, making it suitable for corrosive and challenging environments found in handling water, edible and non-edible liquids, powders, and granular substances. Its protected to IP67/68 for high durability.

Q: When should I choose a Capacitance Point Level Switch over other level sensors?

A: Select this switch when you require reliable point-level detection in demanding conditionsespecially for applications with varying process temperatures (up to 600C), high pressures, and a need for compatibility with multiple materials. It is ideal where robust, maintenance-free performance is essential.

Q: Where can the switch be mounted for optimal performance?

A: The switch offers flexibility, allowing installation on either the top or side of tanks, silos, or hoppers. This maximizes adaptability based on your specific process setup and space constraints.

Q: What is the process for integrating this level switch into an existing system?

A: Integration is straightforward due to its wide operating voltage range (1580 VDC or 15260 VAC) and electronic circuitry. Simply install the probe at the desired location and connect it to your control or alarm system for instant monitoring.

Q: How does the device benefit my operations?

A: With its fast switching response, compact footprint, and broad compatibility, the Capacitance Point Level Switch helps reduce manual monitoring, minimizes spillage risks, and ensures efficient process controlleading to safer, smoother, and more productive operations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Level Switches' category

Compact Vibrating Fork Level Switch for Liquid Price : 11500.0 INR/Piece Minimum Order Quantity : 1 Color : Silver Stoke : 10 Temperature Range : 150 Celsius (oC) Operating Temperature : 80 Celsius (oC) Material : Stainless steel Product Type : Level Switch Size : Compact in size Mounting Type : top/side Protection Level : IP65/67 Circuit Type : electronic circuit Current Rating : IP65/67 No Of Poles : DPDT Max. Current : 16 Milliampere (mA) Rated Voltage : 220 Volt (V) Number of Module : TFP11 & TFP12 Mechanical Life : 2 Years Weight : 180 Grams (g) Max. Voltage : 220 Ampere (A) Response Time : 1 Seconds Finish Type : SS

Send Inquiry

Vibrating Fork Point Level Switch for Solids Price : 13500.0 INR/Piece Minimum Order Quantity : 1 Color : Orange Stoke : 10 Temperature Range : 20 to 80 Celsius (oC) Operating Temperature : 20 C ... 80 C Celsius (oC) Material : SS304, SS316, SS316L Product Type : Point Level Switch for Solids Size : 1253000 mm Mounting Type : Top/Side Protection Level : IP67/68 Circuit Type : PNP, NPN, or NAMUR output circuit types Current Rating : 5 A at 24 VDC or 220 VAC Max. Current : 5 Ampere (amp) Response Time : 2 Seconds Display Type : Analog Power Rating : 15 to 80 VDC and 15 to 260 VAC Features : Compact Size, easy calibration, Temperature 250Deg C, Pressure 20Bar

Send Inquiry

Capacitance Level Sensor Price : 13050.0 INR/Piece Minimum Order Quantity : 1 Color : Orange Stoke : 10 Temperature Range : 20 to 100 Celsius (oC) Operating Temperature : 20C ... 100C Celsius (oC) Material : SS Product Type : Point Level Switch Size : 50mm to 3,000mm Mounting Type : Top/ Side Protection Level : IP67/68 Circuit Type : Electronic Type Current Rating : 5 A or 6 A @ 24 VDC or 230 VAC No Of Poles : 1 or 2 poles Rated Voltage : 15 to 80 VDC and 15 to 260 VAC Volt (V) Number of Module : 3 Mechanical Life : 2 Years Weight : 1.3 Kilograms (kg) Max. Voltage : 15 to 80 VDC and 15 to 260 VAC Volt (V) Finish Type : harsh environments, high temperatures

Send Inquiry

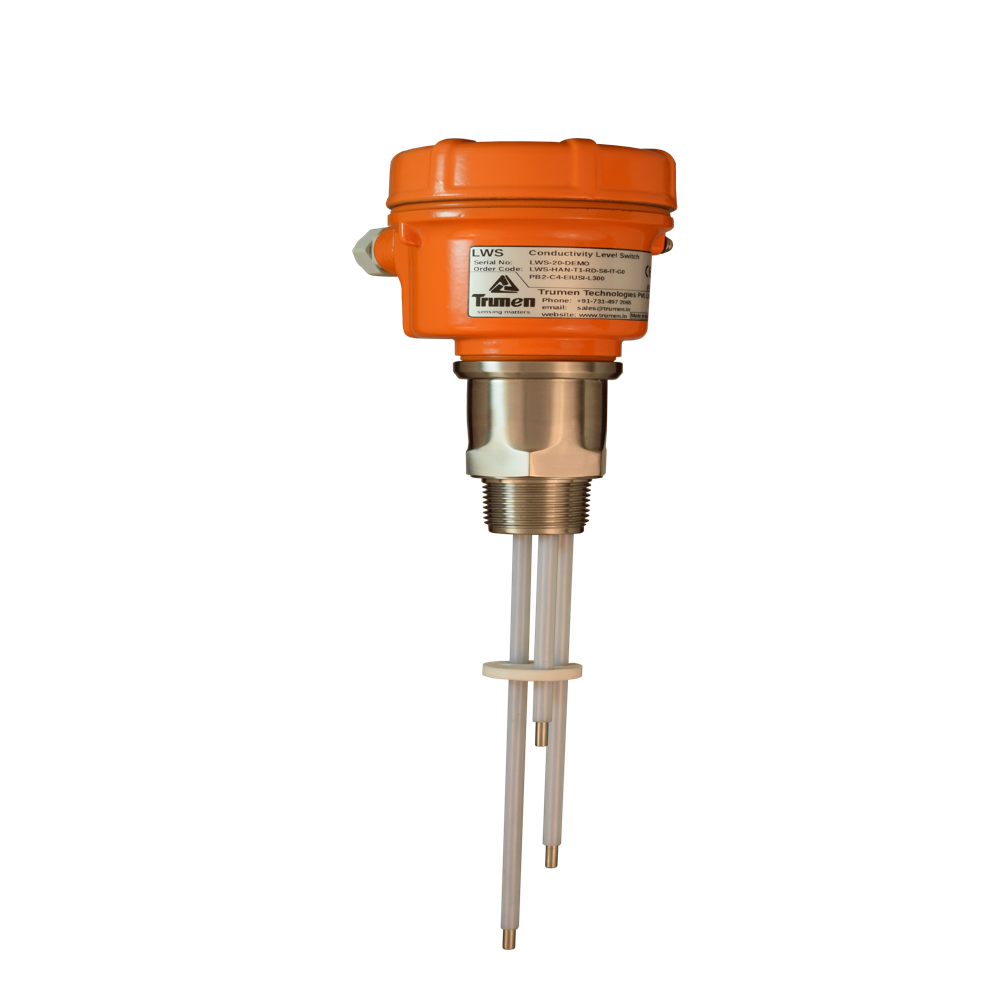

Conductivity Level Switch LWS Price : 22000.0 INR/Piece Minimum Order Quantity : 1 Color : Orange Stoke : 10 Temperature Range : 250 Celsius (oC) Operating Temperature : 20 to 100C Celsius (oC) Material : stainless steel Product Type : Level Switch Size : Compact in size Mounting Type : Top mounting/ side mounting optional available Protection Level : IP 67/68 Circuit Type : Electronic type Current Rating : 5 amps at 24VDC or 220VAC No Of Poles : 15 Max. Current : 250 Milliampere (mA) Rated Voltage : 12V to 260V AC or DC Volt (V) Number of Module : single, dual, triple, quadruple, or fiverod probes Mechanical Life : 2 Years Max. Voltage : 240V AC and 24V DC Volt (V)
