Capacitance Points Level Switch

13500.0 INR/Piece

Get a Price/Quote

Product Details:

Usage & Applications point level detection in both liquids and solids, applicable across various industries.
Rated Voltage 15 to 80 VDC and 15 to 260 VAC Volt (V)
Rated Current 5 Milliampere (mA)
Power Rating 15 to 80 VDC and 15 to 260 VAC
Protection Level IP67/68
Display Type No, External indication LED available

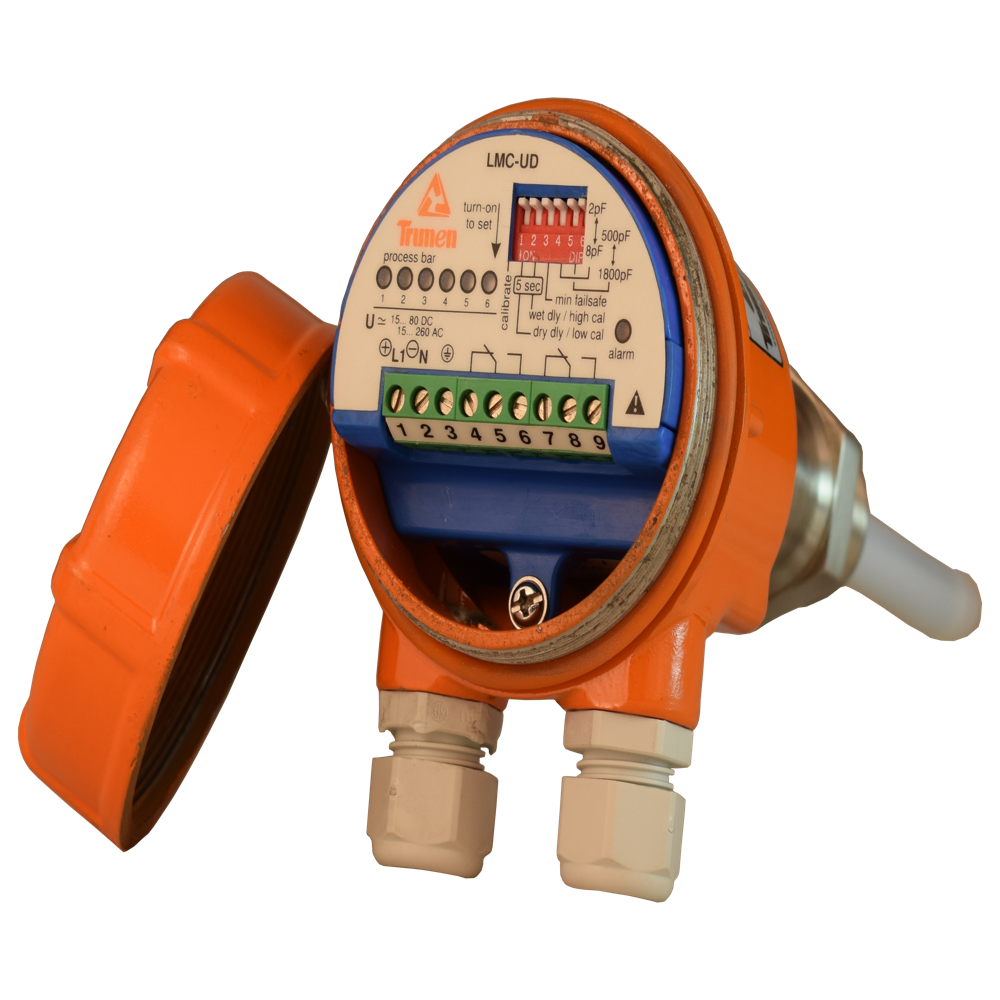

Features Compact size, Low power consumption, Easy calibration via DIP switch, Process temperature max 600 C, Process pressure max. 20 bar
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Capacitance Points Level Switch Price And Quantity

Minimum Order Quantity 1 Piece
Price 13500.0 INR/Piece

Capacitance Points Level Switch Product Specifications

Rated Current 5 Milliampere (mA)
Color Orange And Silver
Product Type Level Switch
Power Rating 15 to 80 VDC and 15 to 260 VAC
Protection Level IP67/68
Size Compact in size
Display Type No, External indication LED available
No Of Poles No Of Poles
Usage & Applications point level detection in both liquids and solids, applicable across various industries.
Rated Voltage 15 to 80 VDC and 15 to 260 VAC Volt (V)
Response Time 1 sec
Material SS
Stoke Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 20,000mm
Max. Current 5 Amps
Circuit Type Electronic Type
IP Rating IP 67/68
Max. Voltage 15 to 80 VDC Volt (V)
Operating Temperature 100 Celsius (oC)
Features Compact size, Low power consumption, Easy calibration via DIP switch, Process temperature max 600 C, Process pressure max. 20 bar
Temperature Range -20 to 100 Celsius (oC)
Current Rating 5 amps at 24VDC or 220VAC
Mounting Type Top and side

Capacitance Points Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details As per product dimensions.
Main Domestic Market All India
Certifications MSME, ISO, GST, BIS

Product Description

https://trumen.in/capacitnace-point-level-switch-manufacturers.htmlÂ

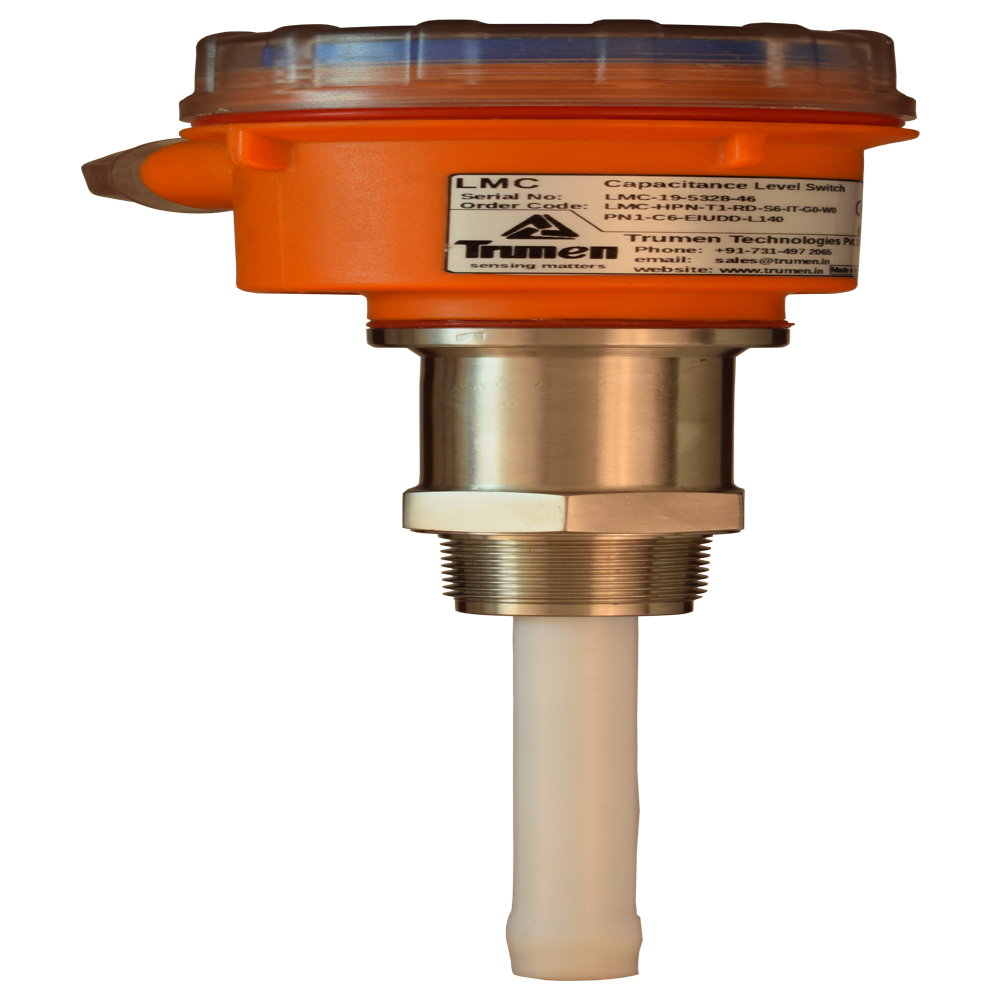

Capacitance Level Switch-LMC

Developed from high strength stainless steel, Capacitance Points Level Switch is used for determining precise level of foam, fluid, granular, powder and foam based substances. Known for its short response time, this level switch is simple to install, adjust and handle. It can be used for handling corrosive as well as conductive materials. Enclosure of this Capacitance Points Level Switch has IP67 protection rating. Standard detection range, required vibration level, low power consumption and adjustable delay time setting arrangement are some of its key characteristics. This switch measures the level of substances by impedance variation between earth electrode and main electrode.

Features:

It can measure exact level of granular, powder, liquid and foam substances stored inside silo chute, hopper or tank.
High sensitivity level, adjustable time delay function
Easy to comprehend single time calibration, can be used even when there is accumulation inside storage vessel
Flexible parameters, sensor status viewing arrangement

Product details

Ambient Temp	-20 to 60 deg C
High Temperature Probes	600 deg C
Max Viscosity	10,000 cStokes (= cPose/(g/cm3)) (Higher viscosity available on request)
PNP with DC Supply	12 to 60 VDC
Process pressure	Max. 20 bar
Process Temp	-20 to 80 deg C
Sensor Cable Length	10 meter
Two wire AC with Series Relay	18 to 260 VAC
Universal In DPDT Output	15 to 80 VDC
Material	Stainless Steel
Brand	Trumen
