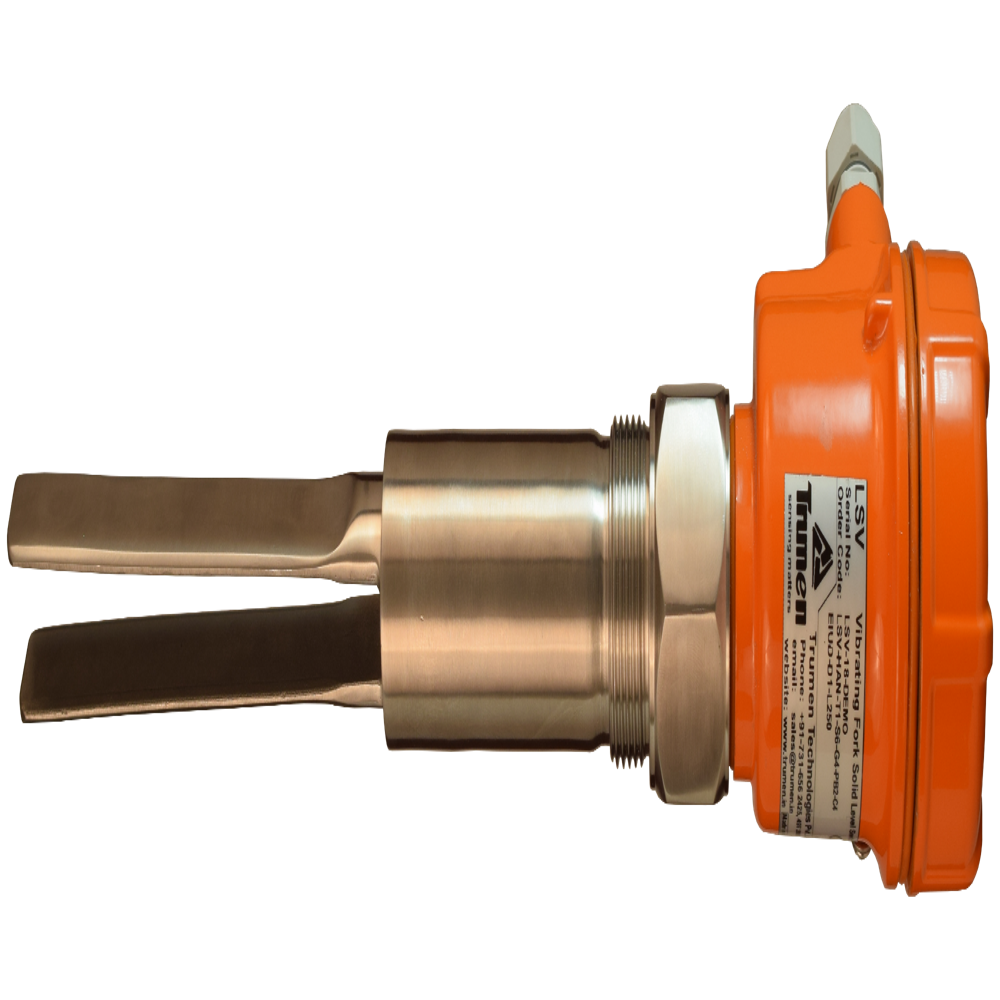

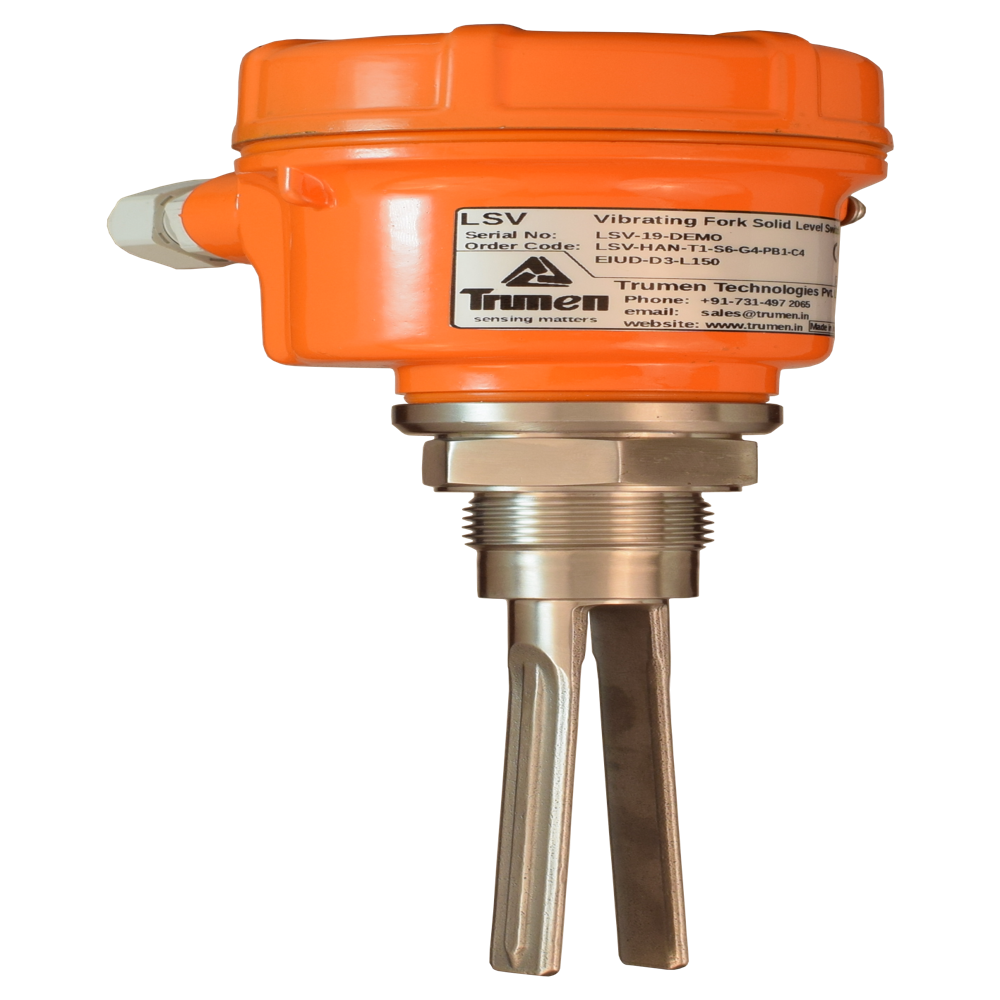

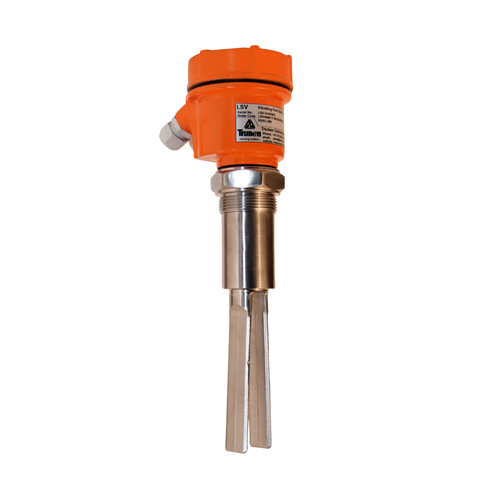

Vibrating Fork Point Level Switch for Solids

We are instrumental in serving to our customers with an excellent quality range of Vibrating Fork Level Switch for Solids. The offered fork level switch is suitable for side as well as top mounting. Apart from this, our Vibrating Fork Level Switch for Solids is perfect for detecting high, low levels in dry powders & fine grained solid applications. Vibrating rod is a single element tunned mechanical element-type level sensing device. Clients can avail this fork level switch from us in different specifications.

Working Principle:
1) As part of mechanism of this LSV, its piezo-electric-crystals are driven by its electronics. The agitation of these crystals helps to generate vibratory force inside the fork by creating frequent resonance in internal air.
2) Generated vibration reaches to maximum level in case the tines are vibrated without any hindrance.
3) When material comes in contact with fork tines, the resonance is hindered. As its consequence, produced vibration tends to cease.
4) Existence of material is identified when the vibration amplitude is less than the threshold strength.

Application:
1) Suitable for lumps free granular and powder based substances having up to 10 mm particle size
2) Ideal for top and side mounting purpose
3) Available with ECTFE/PFA/PTFE coating to avoid rust causing solids
4) Highest and lowest fail safe field can be selected
5) Up to 25 degree C processing temperature
6) Maximum 20 bar of process pressure

Features:
1) Firm structure
2) Available in 15 to 260 VAC and 15 to 80 VDC Universal industrial power supply based options
3) Energy efficient functioning
4) Free from calibration
5) Available in different process connection based options (accessible range starts from 1 thread diameter) as per specific application needs of clients
6) Switching delay can be programmed as part of its standard feature
7) Can also be accessed in remote electronic based design to suit precise application needs
8) Exd variant of this product is meant for Gas Group IIC, T6 in compliance with IEC 600529-2001 and IEC 60079-1-2007.

Technical Specifications:

EIUD	Integral Electronics
Supply & Output	Universal Power Supply, DPDT Relay Output 15 to 80 VDC and 15 to 260 VAC 50/60Hz
Relay Type and Rating	Potential Free DPDT Relay Output 5 A each @ 24VDC or 220VAC
EIDP	Integral Electronics for PNP Output
Supply & Output	12 to 60 VDC, PNP
Output Limit	250mA max. Short Circuit Safe.
EIAR	Integral Electronics AC series relay
Supply & Output	Two Wire 18 to 260 VAC, Series Relay less than 4mA to release external relay maximum 150mA to magnetize relay
Output Limit	Use relays/contactors will less than 4mA holding current
EIDL	Integral Electronics 4-20mA Loop Powered
Supply & Output	Two Wire DC 8 / 16 mA 12 to 60 VDC
Output Limit	8mA (-1mA max) / 16mA (+1mA max)
ERUD	Remote Electronics
Supply & Output	Universal Supply DPDT relay output 15 to 80 VDC 15 to 260 VAC 50/60Hz
Relay Type and Rating	5 A each @ 24VDC or 220VAC
Sensor Cable	Remote electronics require special cable from fork to controller. 10 meter standard length more available on demand
Min. Density	15 gram/litre for D1 (Fork length 150mm) 75 gram/litre for D2 (Fork length 125mm) 500 gram/litre for D3 (Fork length 100mm)
Ambient Temp.	-20oC- 70oC (-4oF- 158oF)
Process Temp.	-20oC- 80oC (-4oF- 176oF)
Extended Process Temperature	-30oC- 200oC (-22oF- 392oF) {250oC available on request} (extensions & heat sinks required)
Process Pressure	Absolute / max. 15 bar
Wetted Parts	SS 316 or SS 316L
Mountings	NPT / BSP 1", 1 1/4", 1 1/2", 2" etc Flanged : ANSI/JIS/DIN/ASA/custom
Extensions Tube	SS 304, SS 316, SS 316L
Material & Length	125mm to 3,000mm
