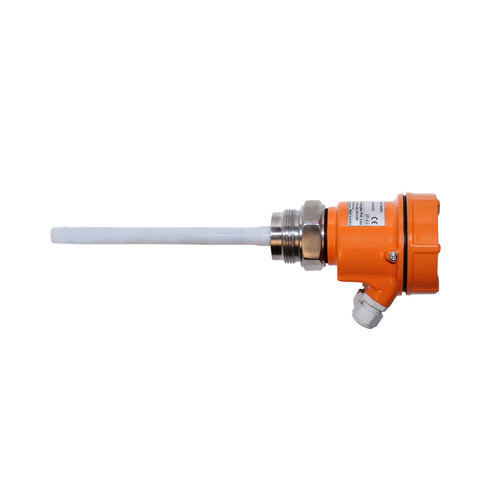

PTFE Capacitance Level Switch

10900.0 INR/Piece

Get a Price/Quote

Product Details:

Display Type No
Protection Level IP67/68
Usage & Applications detecting levels of liquids, solids, and powders in tanks and vessels
Features easy dip switch calibration, customized process connections, and remote electronics options
Operating Temperature -20C to 600C
Material Stainless Steel
Temperature Range Max 600 degree celsius Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PTFE Capacitance Level Switch Price And Quantity

Price 10900.0 INR/Piece
Minimum Order Quantity 1 Piece

PTFE Capacitance Level Switch Product Specifications

Product Type Level Switch
Max. Current 15 to 80 VDC Volt (v)
Max. Voltage 15 to 80 VDC or 15 to 260 VAC
Size 125mm to 3000mm
Rated Current 5mA at 24VDC or 220VAC
Power Rating 15 to 80 VDC and 15 to 260 VAC
Frequency not a directly adjustable parameter
Rated Voltage 15 to 80 VDC and 15 to 260 VAC
Color Orange And Silver
IP Rating IP 67/68
Display Type No
Stoke 10
Usage & Applications detecting levels of liquids, solids, and powders in tanks and vessels
Protection Level IP67/68
Temperature Range Max 600 degree celsius Celsius (oC)
Material Stainless Steel
Features easy dip switch calibration, customized process connections, and remote electronics options
Operating Temperature -20C to 600C

PTFE Capacitance Level Switch Trade Information

Supply Ability 150 Piece Per Month
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details As per product dimensions
Main Domestic Market All India
Certifications MSME, ISO, GST, Performance certificate

Product Description

https://trumen.in/capacitnace-point-level-switch-manufacturers.html

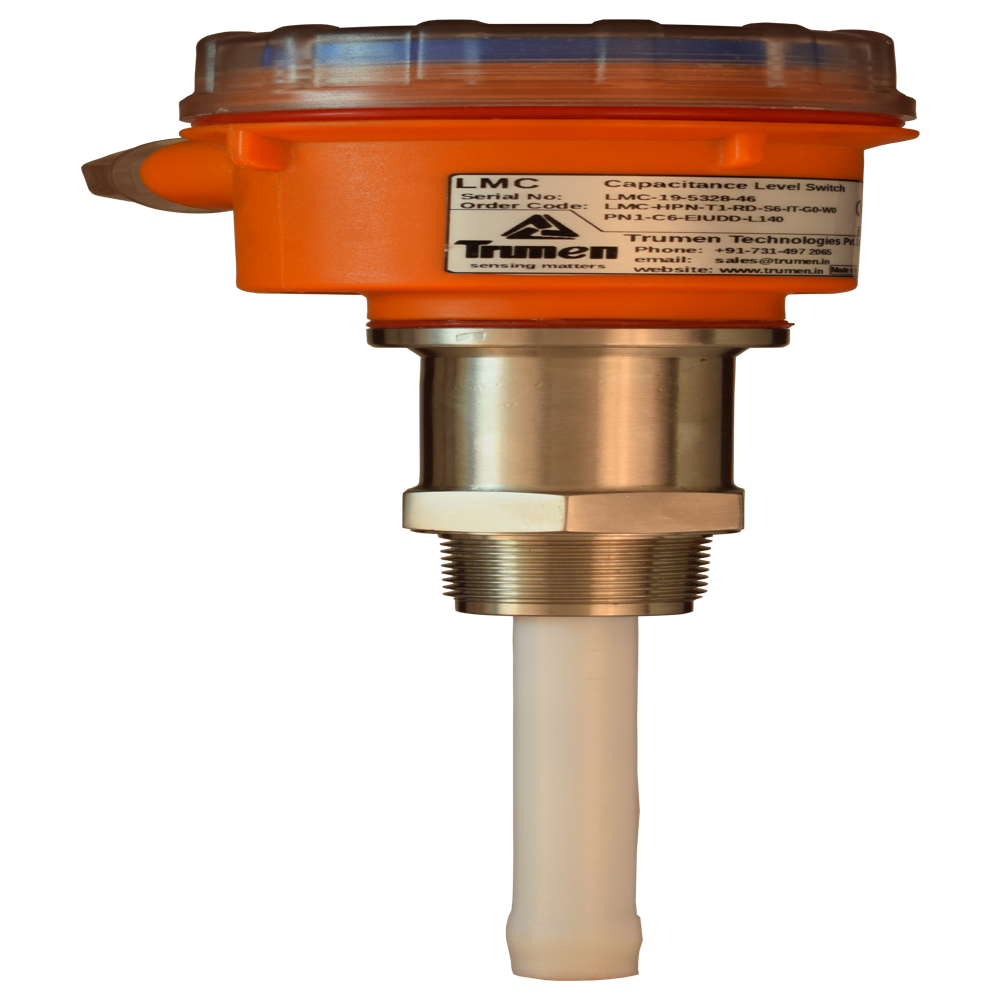

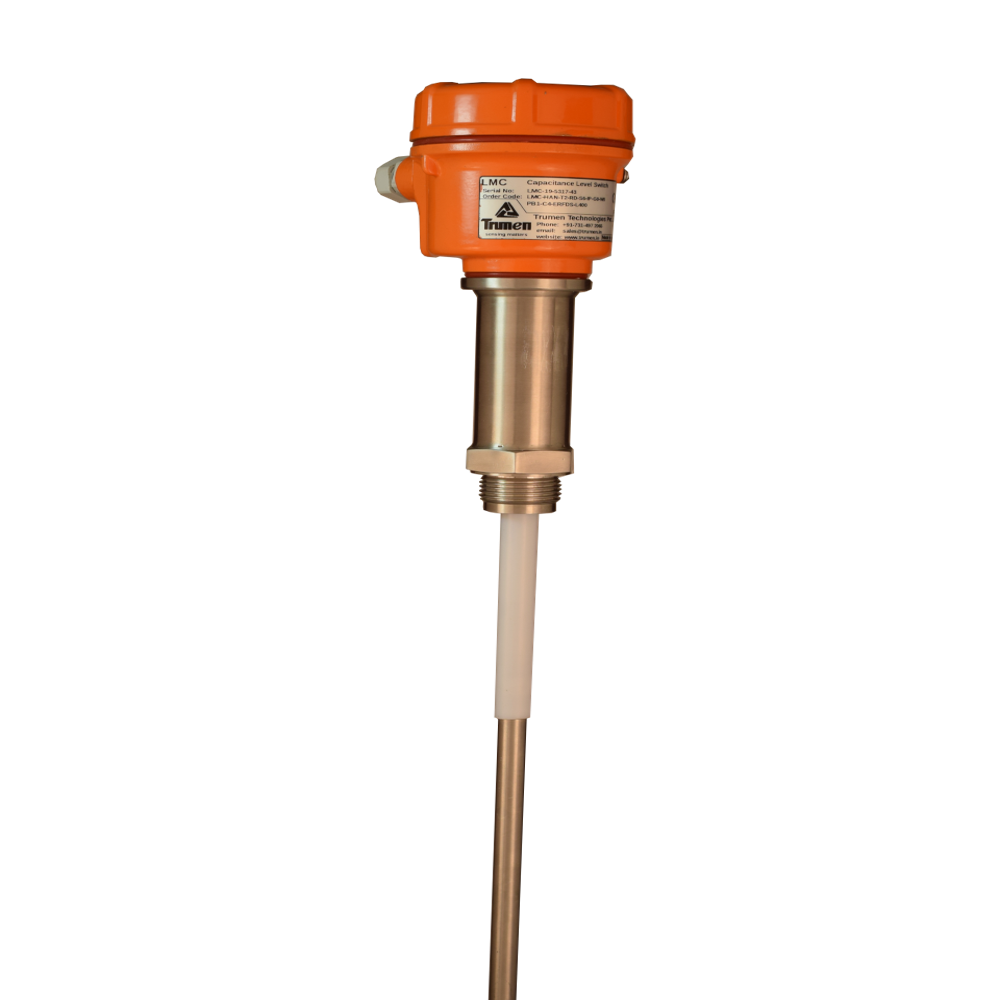

Full PTFE Coated Capacitance Level Switch- LMC

This precisely developed Capacitance Level Switch is used for determining level of viscous liquid which is conductive by nature and dirt etc. This switch can endure maximum 600 degree C operating temperature. Its cast aluminum housing has IP66 protection rating. This specially designed housing can resist impact. Probe of this product is made of ceramic or PTFE or stainless steel (316/304 grade). Circuit design of this Capacitance Level Switch helps to improve its sensitivity level. It can be availed with plate probe or wire probe type design choice to suit specific application needs. Burst proof design, high temperature protection capacity, anti static mechanism and long working life are its key features.

Features:

Short response time and stable operation are the key characteristics of this product.
Suitable for handling corrosive and conductive materials
Long lasting quality and high mechanical strength
Works on the principle of capacitance variation of grounding and main electrodes

Product details

Finishing	PTFE coated
Power supply	15 to 80 VDC
Process pressure	Max. 20 bars
Process temperature	Max 600 degree celsius
Brand	Trumen
Mounting Options	Side Mount
Model Number	LMC
