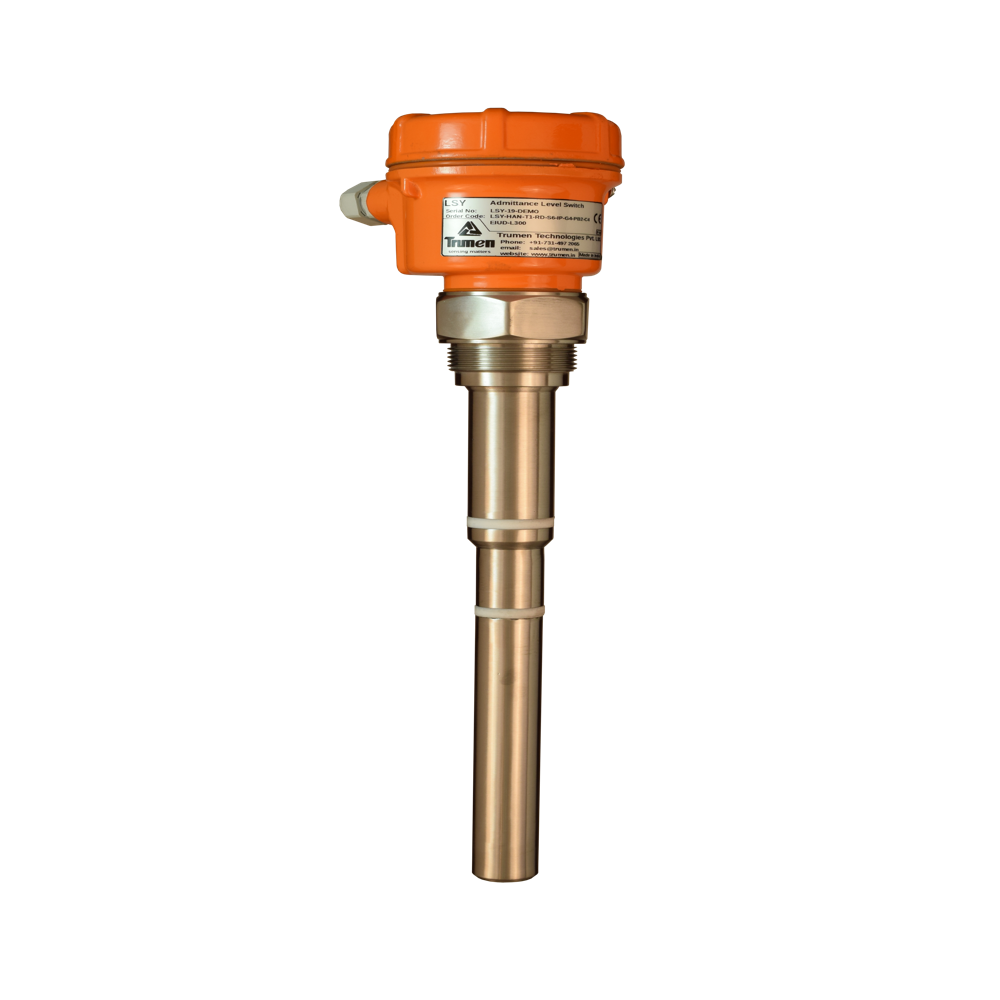

Hopper Level Sensor LSY

13050.0 INR/Piece

Get a Price/Quote

Product Details:

Sensor Type Level Switch
Signal Type Analog
Application Cement- Fly ash- Hot clinker- Lime stone- Plastic- Oil Extaction- Rice husk- Chemical- Grease- Dairy- Chocolate- Animal feed and pallet
Wireless No
Cable Length 5 Meter (m)
IP Rating IP 67/68
Measurement Range 50 to 3000mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Hopper Level Sensor LSY Price And Quantity

Minimum Order Quantity 1 Piece
Price 13050.0 INR/Piece

Hopper Level Sensor LSY Product Specifications

Product Type Level Sensor/Switch
Usage For Industrial use
IP Rating IP 67/68
Cable Length 5 Meter (m)
Wireless No
Application Cement- Fly ash- Hot clinker- Lime stone- Plastic- Oil Extaction- Rice husk- Chemical- Grease- Dairy- Chocolate- Animal feed and pallet
Signal Type Analog
Sensor Type Level Switch
Output 1 DPDT
Warranty 1 Year
Operating Temperature 600 Celsius (oC)
Mounting Type Top /Side
Input 15 to 80 VDC
Material Steel
Measurement Range 50 to 3000mm
Voltage 230 Volt (v)

Hopper Level Sensor LSY Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 200 Piece Per Month
Delivery Time 4 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Cartoon box
Main Domestic Market All India
Certifications MSME, GST, ISO

Product Description

Leveraging on our vast industrial experience, we bring forth an excellent quality 230 Volt Hopper Level Sensor. This admittance point level switch is manufactured using the optimum grade basic material and the latest technology in complete accordance with the international quality standards. Our provided Steel Hopper Level Sensor is best for all sticky/non-sticky bulk solids & liquids. RF Admittance is a static level sensor with no moving parts.

Features :

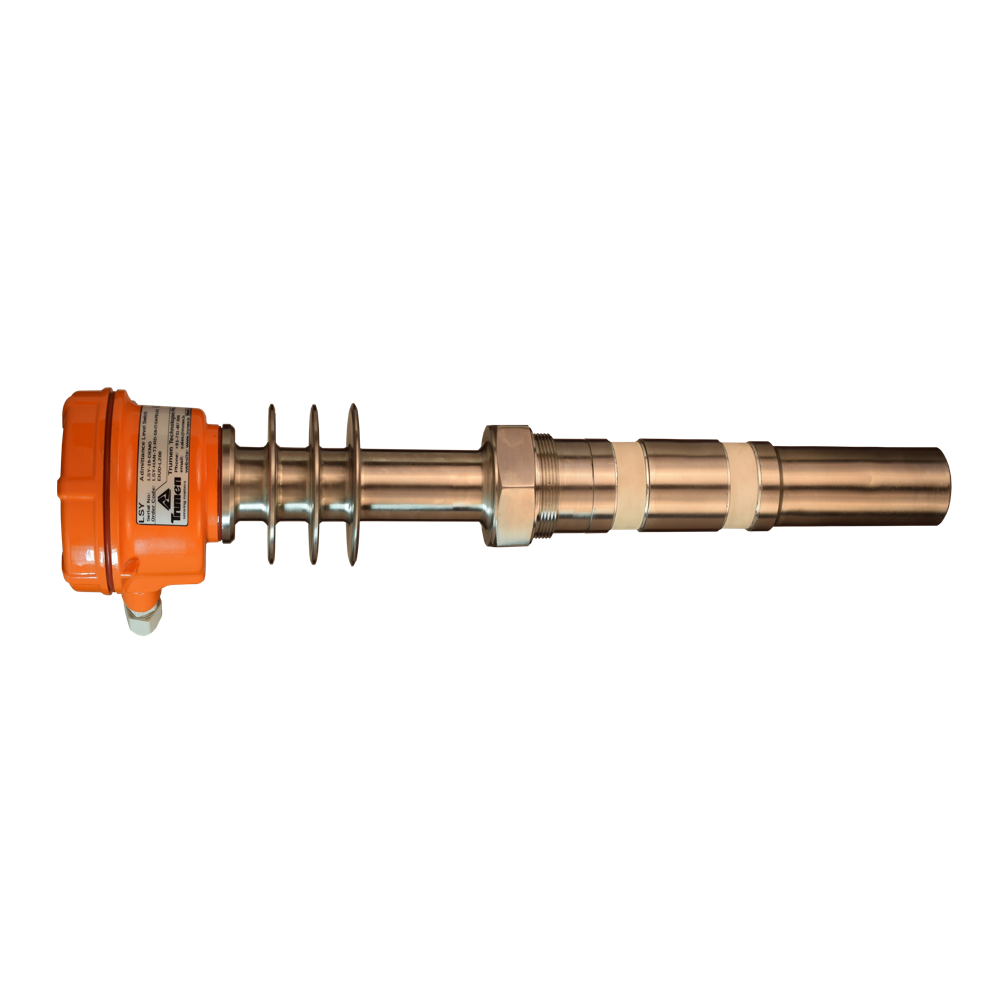

Process temperature max 600 C (ceramic insulation)
Static charge safe for fly-ash, acids, plastic & other applications susceptible to static charge/electricity
Easy calibration
Needs less maintenance

Product details

Product name- RF Admittance level switch

Ambient Temp	-20 to 60 deg C
Extended Process	-30 to 200 deg C
Min Density	greater than 500 gram/lite
PNP NPN with DC Supply	12 to 60 VDC
Process Pressure	absolute / max. 15 bar
Process Temp	-20 to 80 deg C
Relay Type and Rating	Potential Free DPDT Relay Output
Sensor Type	Magnetic Float Basedt
Temperature	250 deg C available on request
Two wire AC with Series Relay	18 to 260 VAC
Universal In DPDT Output	15 to 80 VDC
Material	Stainless steel

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Level Sensor' category

Capacitance Level Sensor Price : 13050.0 INR/Piece Minimum Order Quantity : 1 Usage : Industrial Product Type : Level Sensor Warranty : 1 Year Material : Metal Voltage : 12 Volt (v) Operating Temperature : 20 to 60 Celsius (oC) Color : Orange Output : 250 mA Temperature Range : 20 to 100 Celsius (oC) Cable Length : 2 Meter (m) Wireless : No Sensor Type : Capacitance type IP Rating : IP 67/68 Measurement Range : Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 20,000mm Mounting Type : Top & side mounted Application : emical WTP STP Cement Steel Food & Beverages Diesel Features Response Time : 2 Seconds

Send Inquiry

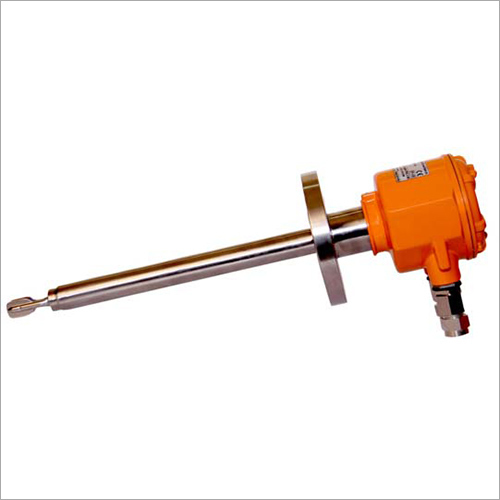

LFV Liquid Level Sensor Price : 18500.0 INR/Piece Minimum Order Quantity : 1 Usage : 1. Free flowing liquids 2. Suitable for side as well as top mounting 3. Minimum and maximum failsafe field selectable 4. Process temperature max 200 C 6. Process pressure max.15 bar 7. Flow/noflow detection in pipeline Product Type : Vibrating Fork type level switchLFV Warranty : 1 Year Material : SS 304, SS 316, SS 316L Voltage : 15 to 80 VDC Volt (v) Operating Temperature : 250 Celsius (oC) Input : 24VDC or 220VAC Output : relay Cable Length : 10 Meter (m) Sensor Type : vibrating fork type IP Rating : IP67/68 as per IS/IEC 60529:2001 Measurement Range : 50mm to 3,000mm Mounting Type : top/side mounted Application : Water Milk Diesel Edible Oil Paints WFI water Chemical Beverages Hydraulic oil Response Time : 2 Seconds
