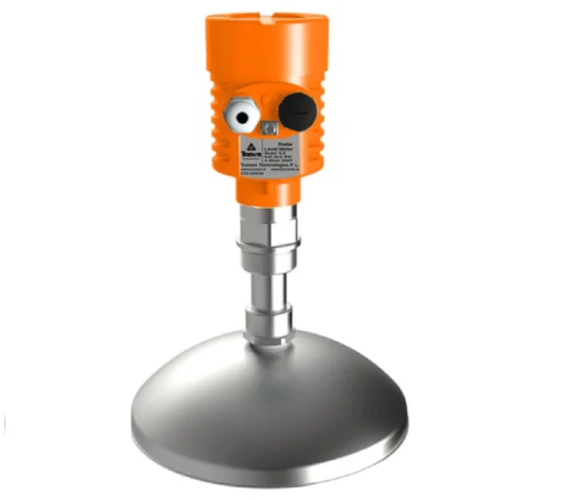

Non Contact Radar Level Transmitter

Our firm is a leading manufacturer, exporter and supplier of supreme grade Non Contact Radar Level Transmitter. This transmitter is manufactured using the best quality components and innovative techniques under the vigilance of our adroit professionals. Provided transmitter is extensively used in defense & weather forecasting departments for detecting the angle, velocity and range of aircrafts, ships and missiles. Apart from this, the offered Non Contact Radar Level Transmitting Device can be purchased from us at budget friendly rates within promised time frame.

Key Points:

• Longer service life
• High strength
• Excellent performance
• Simple installation

Applications of Non Contact Radar Level Transmitter:

• Continuous, non-contact level measurement in applicable for liquids and solids in large storage tanks
• Various antennas MOC as per process requirement
• Maximum measuring range up to 70M
• Process Temperature -40 to 2000C (Special Temperature Range available on request)
• Process Pressure max -1 to 16 bar

Feature:

• Min resolution 1mm
• LCD graphic-capable dot matrix display
• Intelligent signal processing technology
• Simple configuration parameters, without waiting for emptying containers
• Die Cast aluminum enclosure
• Two wire 4-20mA/HART output
• Easy configuration

Non Contact Radar Level Transmitting Device Technical Specifications:

• Measuring range (maximum): 20m (depends on dielectric constant of different medium and the concrete working conditions)
• Process connection: Thread, flange
• Medium temperature: -60oC to +120oC
• Process pressure: -0.1 to +0.3MPa
• Accuracy: ±3mm
• Repeatability: ±1mm
• Frequency range: 26GHz
• Explosion proof: Ex ia IIC T6 Ga
• Enclosure protection grade: IP67
• Signal output: 4-20mA/ HART (2-wire/ 4-wire) , RS485/ Modbus
• Air purging and liquid rinsing: on request
• For those with communication of RS485/MODBUS, backlight is available on request.
