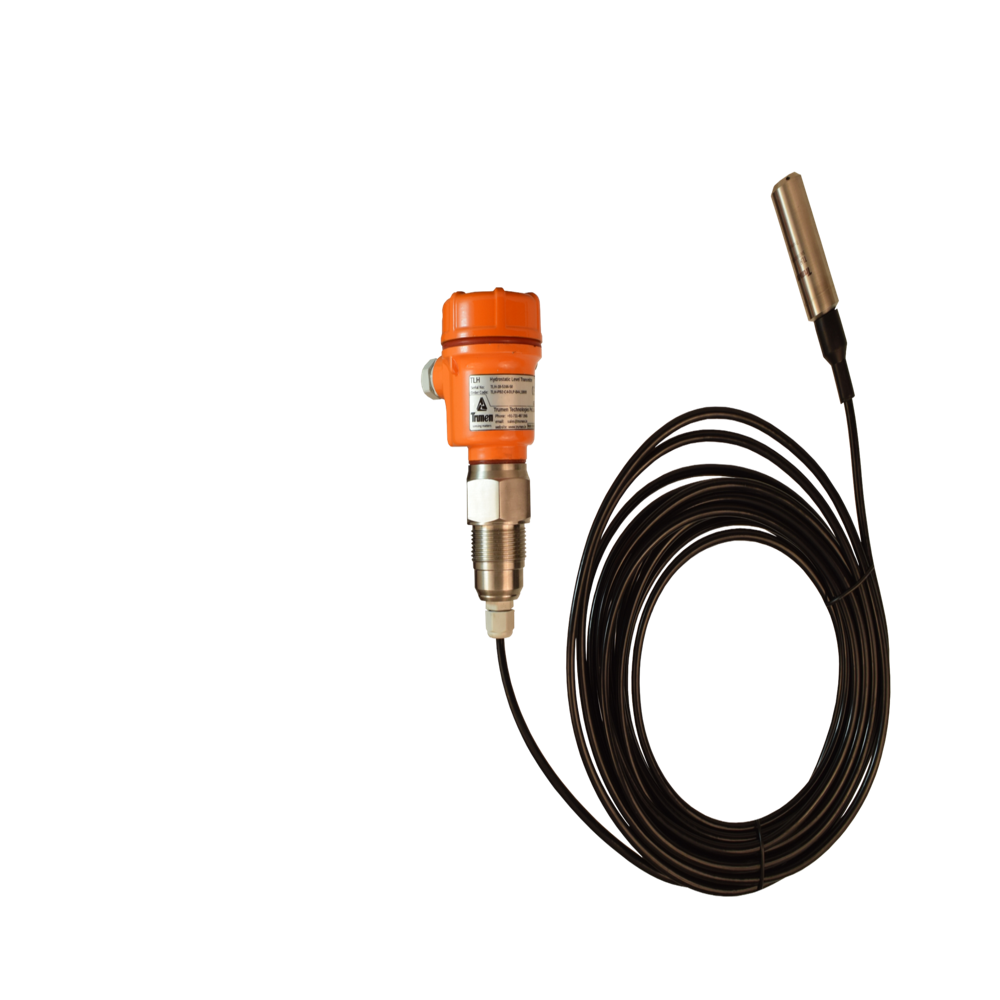

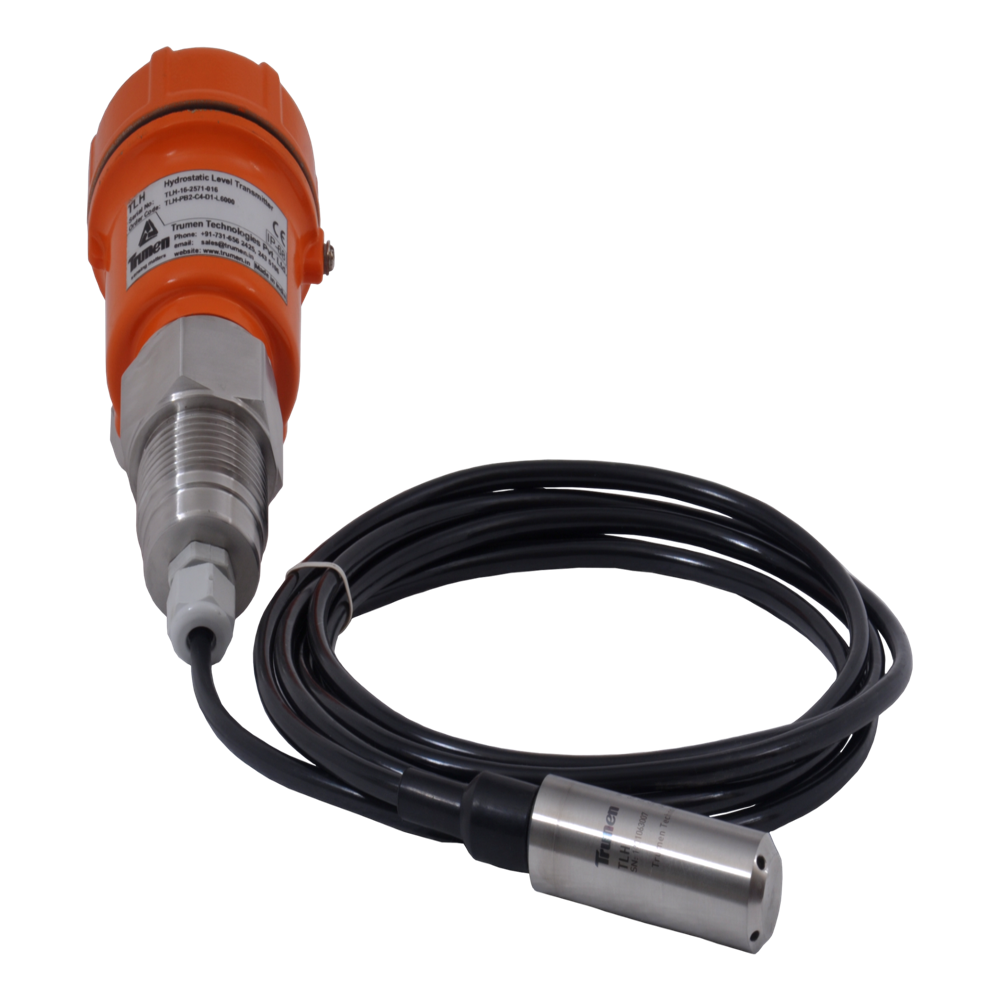

Hydrostatic Continuous Level Transmitter

Hydrostatic Continuous Level Transmitter

14,500 INR/Piece

Product Details:

  • Product Type Liquid Level Transmitter
  • Output 4-20 mA
  • Color Silver & Black
  • Measuring Range 1to 100 Celsius (oC)
  • Operating Temperature 80 Celsius (oC)
  • Material Strainless Steel
  • Working Temperature 0 to +80 Celsius (oC)
  • Supply Ability : 1000 -1500 Per Month
  • Click to view more
X

Price And Quantity

  • 1
  • Piece/Pieces
  • 14,500 INR

Product Specifications

  • 4-20 mA
  • Silver & Black
  • 1to 100 Celsius (oC)
  • Liquid Level Transmitter
  • 80 Celsius (oC)
  • Strainless Steel
  • 0 to +80 Celsius (oC)
  • Analog Only

Trade Information

  • 1000 -1500 Per Month
  • 1 Week
  • Yes
  • Contact us for information regarding our sample policy
  • Wood & Plastic Box
  • All India

Product Description

Running with an objective to accomplish diversified demands of clients, we are offering Hydrostatic Continuous Level Transmitter that is perfect for drinking water, dam water, bore well, well etc. This transmitter is manufactured utilizing best in class raw material with the help of advanced technology in compliance with the set quality standards. Our offered transmitter is known for its feature like 4-core„ shielded cable with vent hose which is mechanically strong enough for deep submersible liquid level measurements.

Working Principle:
- As part of the mechanism of Hydrostatic Continuous Level Transmitting Device, it subtracts liquid pressure by air pressure by utilizing air vent in connection cable and pressure sensitive diaphragm.
- When this transmitter is submerged deep in the fluid, the liquid pressure becomes higher than air pressure. As its consequence, the diaphragm tends to deform slightly.
- This deformation of diaphragm is not clearly visible in the naked eyes, although piezo-resistive sensors detect this difference.
- In this way liquid pressure is identified by Trumen hydrostatic sensor.

Applications of Hydrostatic Continuous Level Transmitter:
- This pressure sensor is required for hydrostatic level measuring purpose.
- Suitable for water obtained from dam, well and bore well
- Also used for drinking water
- Perfect for top mounting purpose
- Maximum 80 degree C process temperature and up to 200 mH2O process pressure
- Ideal for corrosion causing fluids

Features:
- Dense body

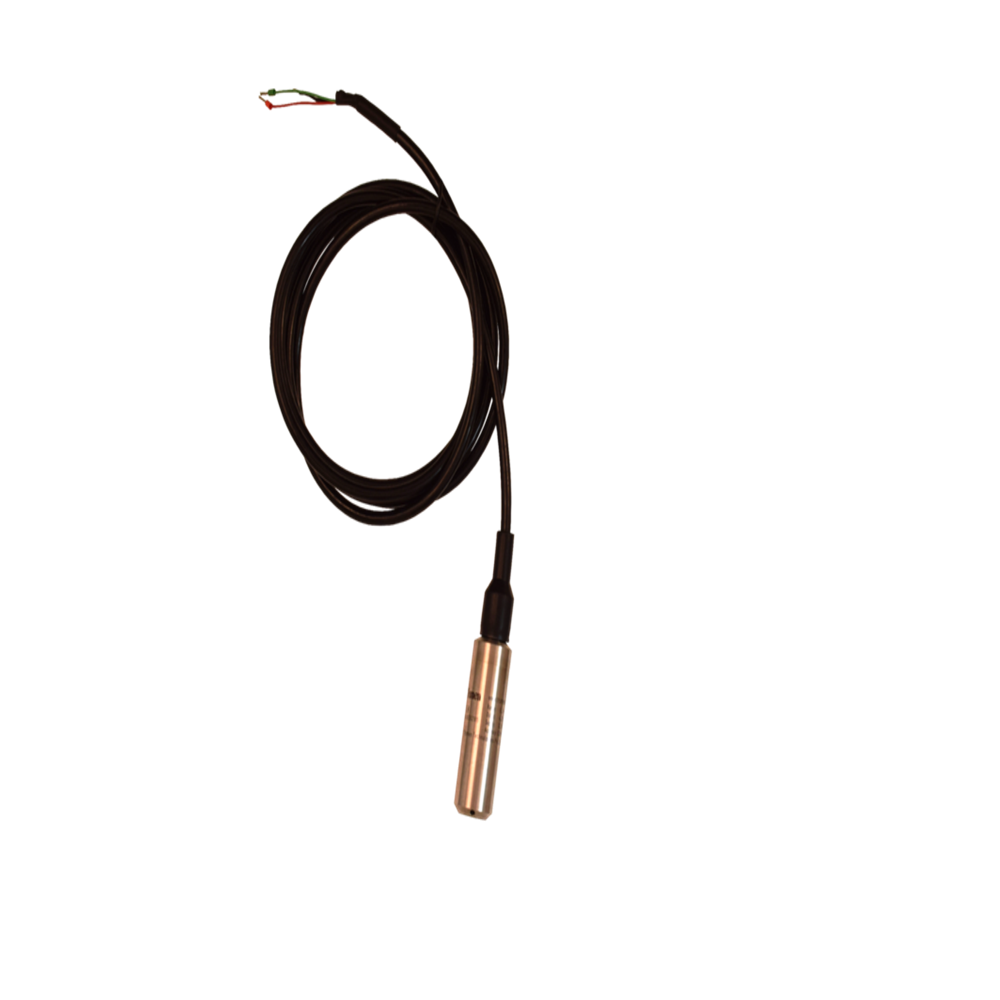

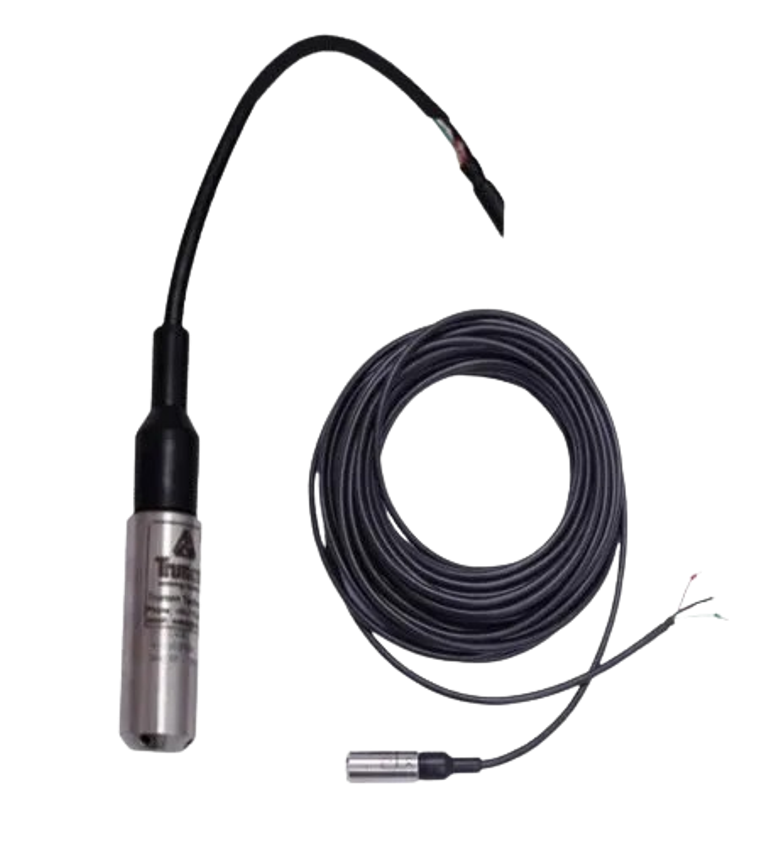

- Equipped with four core shielded cable that has highly durable vent hose so that it can be used for submerged liquid level measuring purpose
- 12 VDC to 36 VDC industrial DC power supplying range
- Consists of loop powered device
- Free from calibration process
- Process connections can be custom made, as for instance, hygienic/flanged/threaded to name a few
- +/- 0.25% of FS precision level

Hydrostatic Continuous Level Transmitting Device Technical Specifications:

Sensor Supply

14 to 36VDC

Output

4-20mA

Load

250 Ohm @14V to

1100 Ohm @ 36V

Pressure Range

1: 0...1mH2O 2: 0...2mH2O

3: 0...5mH2O 4: 0...10mH2O

5. 0...15mH2O 6: 0...20mH2O

7: 0...50mH2O 8: 0...80mH2O

9: 0...100mH2O 10: 0...150mH2O

11: 0...200mH2O

Accuracy

± 0.25% (standard)

± 0.5% minimum

% of Full Scale

Long-Term Stability:

< ± 0.5% of Full Scale per Year

Response Time

<2 mili seconds

Temperature


Storage

-40oC to +100oC

Usable

0oC to +80oC

Compensated

0oC to +50oC

Sense Diaphragm Material

SS316L

Wetted Sensor Material

SS316 / SS316L

Cable Insulation

Polycarbonate/Polyurathene

Submersible Protection Class

IP68

Protection Head


Material

Aluminum Pressure Die-Cast

Paint

Eopxy Polyurathene Coated

Protection Class

IP-68

Process Connection

Threaded: NPT/BSP 1” to 2”

Flanged: ANSI/JIS/DIN/ASA


TRUMEN TECHNOLOGIES PVT. LTD.
