Ceramic Insulation RF Admittance Level Sensor

Product Video

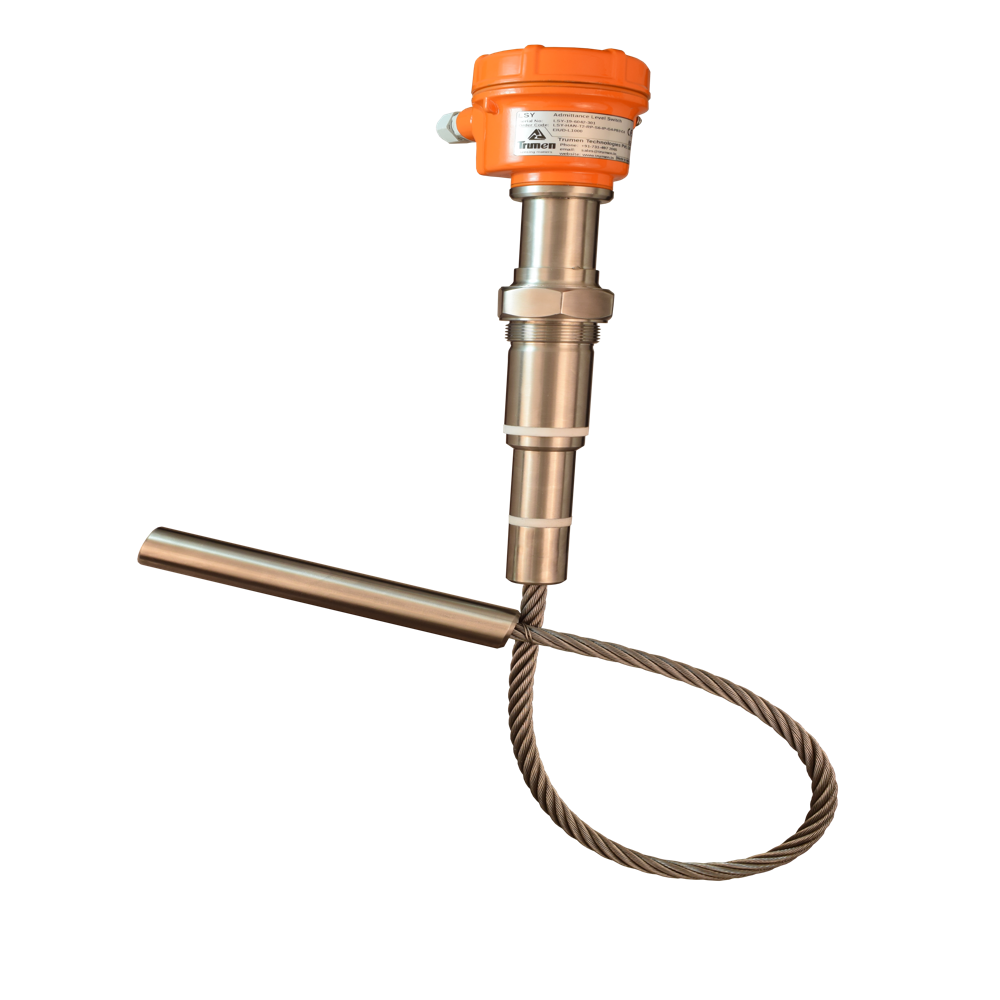

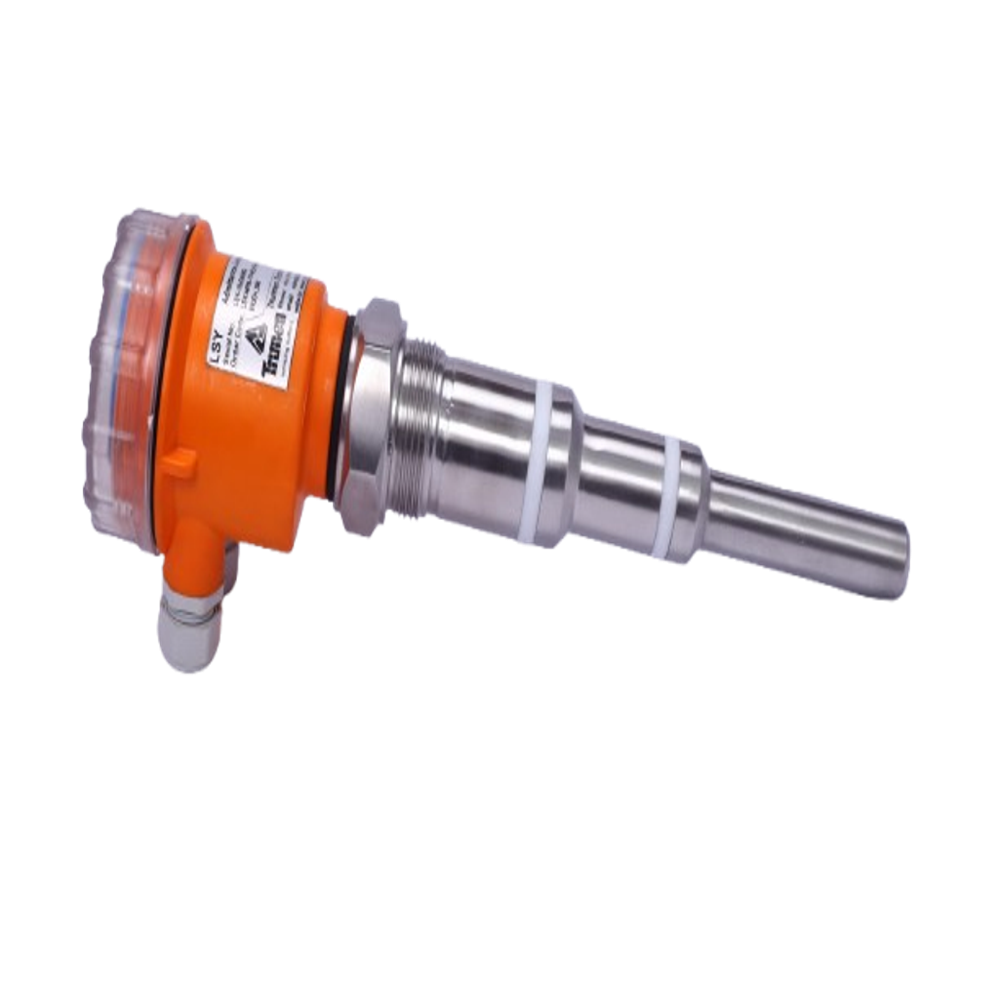

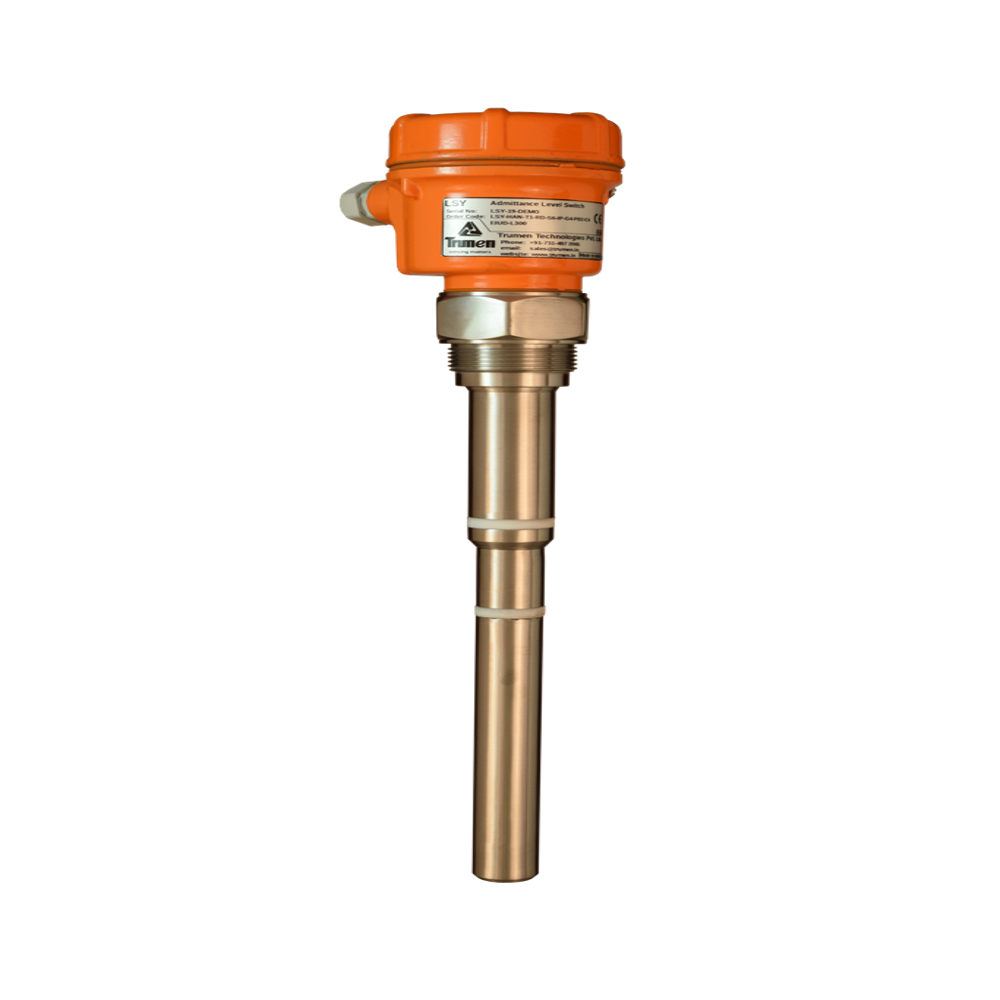

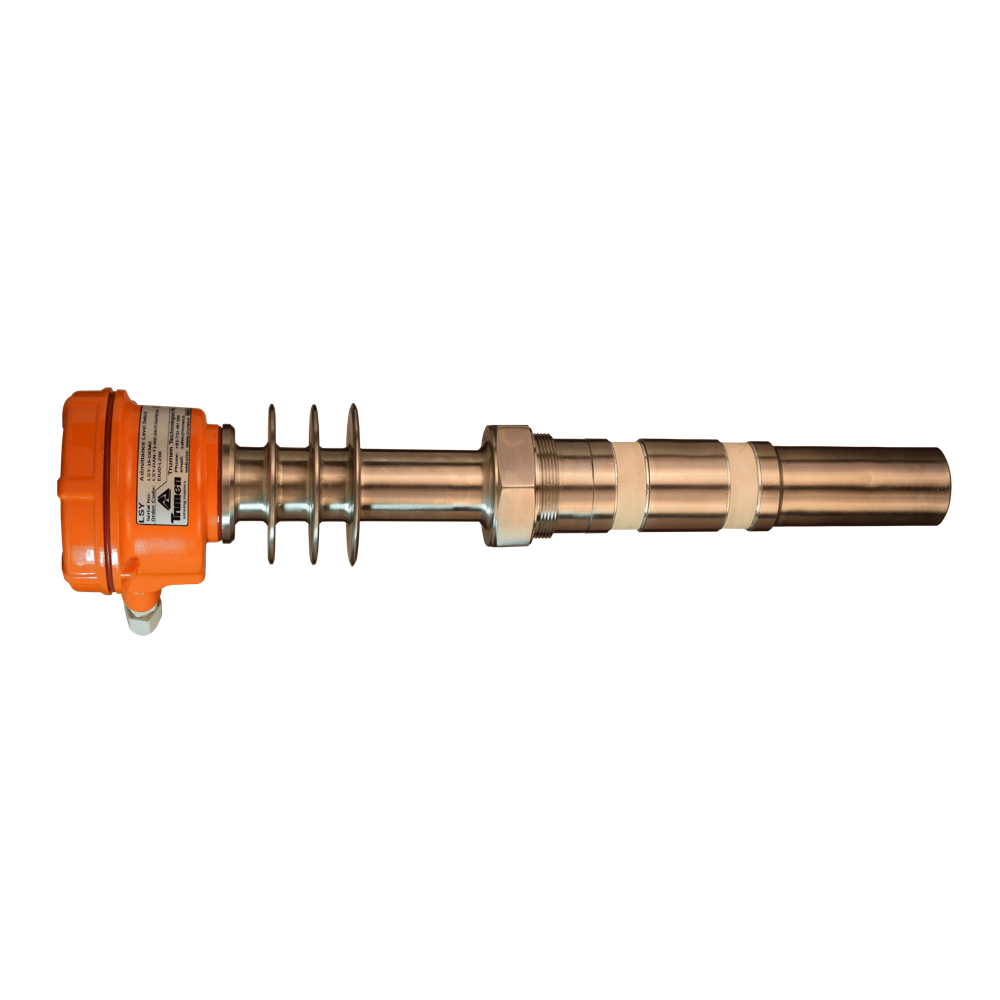

Ceramic Insulation RF Admittance Level Sensor

13500.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature 100 Celsius (oC)
Measurement Range Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 10,000mm
IP Rating IP 67/68
Sensor Type Rod, Tube
Material Stainless Steel
Power Consumption 5 Volt-Ampere (VA)
Application Cement , Fly Ash, Chemicals, pharma
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ceramic Insulation RF Admittance Level Sensor Price And Quantity

Minimum Order Quantity 1 Piece
Price 13500.0 INR/Piece

Ceramic Insulation RF Admittance Level Sensor Product Specifications

Warranty 1 Year
Measurement Range Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 10,000mm
IP Rating IP 67/68
Operating Temperature 100 Celsius (oC)
Material Stainless Steel
Power Consumption 5 Volt-Ampere (VA)
Application Cement , Fly Ash, Chemicals, pharma
Product Type Level Sensor
Output 4-20mA, 1 DPDT
Sensor Type Rod, Tube
Usage Industrial

Ceramic Insulation RF Admittance Level Sensor Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 4 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details BIS, MSME, ISO, GST
Main Export Market(s) Asia, Middle East, Africa
Main Domestic Market All India
Certifications MSME, ISO, GST, BIS, Performance certificate

Product Description

https://trumen.in/admittance-point-level-switch-manufacturers.html

RF Admittance level switch-LSY

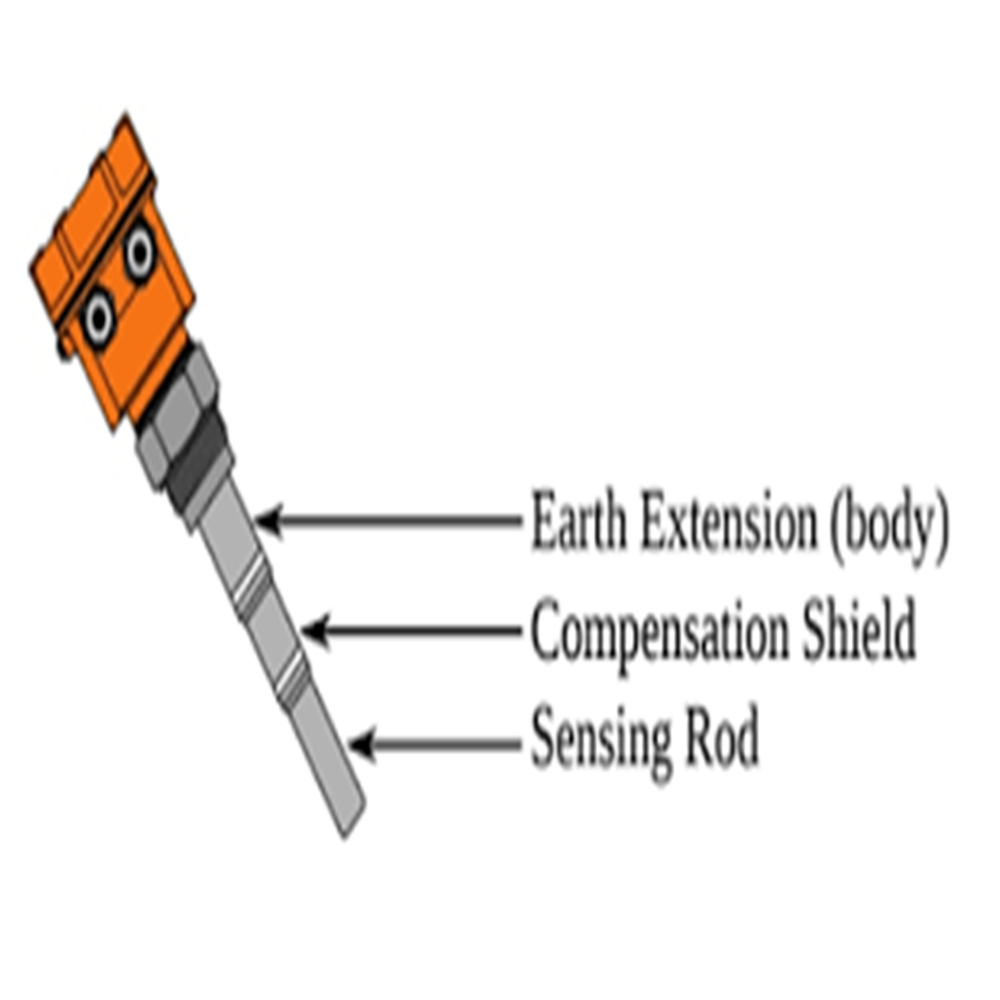

Ceramic Insulation RF Admittance Level Sensor can be used for handling slurry, liquid, powder, foam and particle based materials. This stainless steel made instrument has IP 68 protection rating and it can be operated under 200 degree C temperature. This sensor consists of stainless steel probe with high temperature proof design. Its anti adhesion electronic circuit is capable of inhibiting erroneous signals produced by adhesion materials. Provided Ceramic Insulation RF Admittance Level Sensor uses LED lights for denoting its operating status. Parameters of its power failure can be adjusted easily. High strength enclosure of this product has IP65 protection rating.

Features:

Connecting part of this instrument is equipped with flange or is featured with threaded design.
Burst proof design, can endure high pressure and high temperature
Equipped with power failure protection arrangement with adjustable parameters
Features stainless steel made insulated layer, accurate diameter, highly durable, corrosion protected

Product details

IP rating	IP 68
Material	Stainless steel
Process process	150 bars
Process temperature	200 degree celsius
Country of Origin	Made in India
Brand	Trumen
