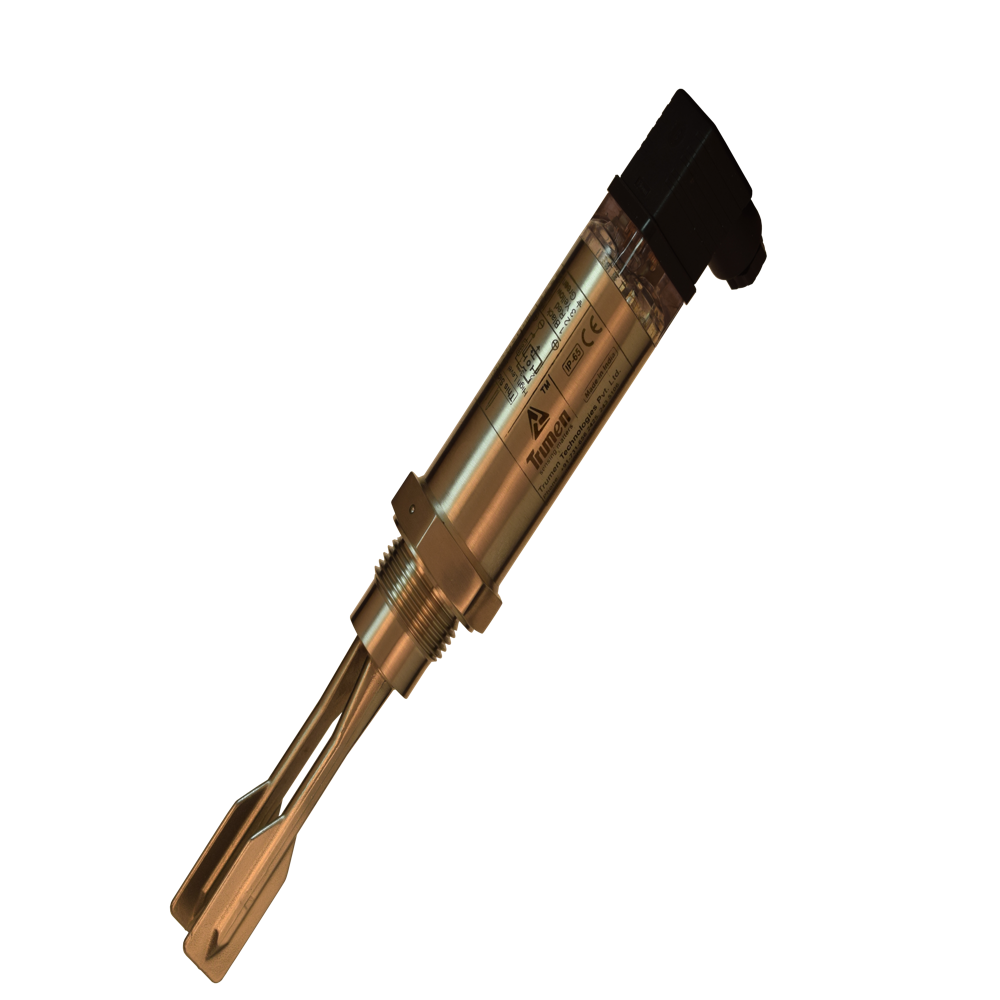

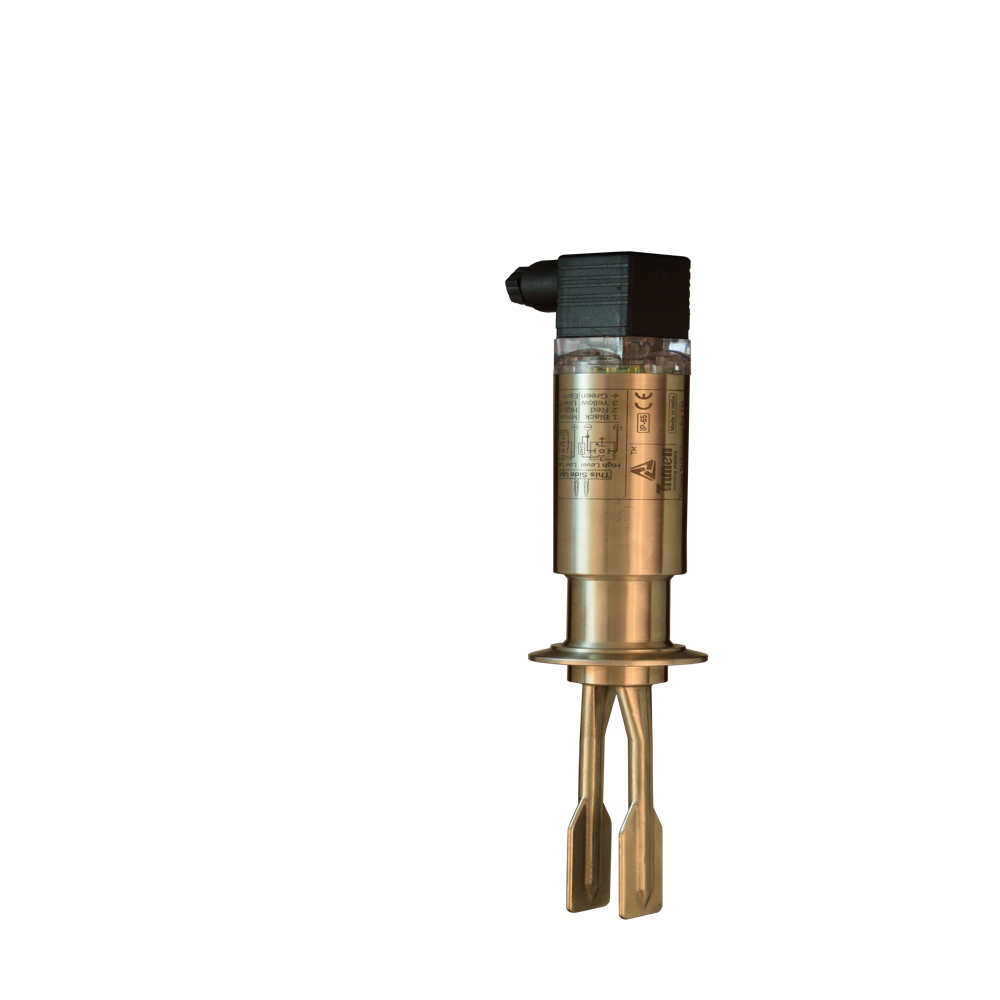

Compact Vibrating Fork Level Switch

Name: Compact Vibrating Fork Level Switch
Brand: TRUMEN TECHNOLOGIES PVT. LTD.
Price: 10200.0 INR
Availability: InStock

10200.0 INR/Piece

Get a Price/Quote

Product Details:

Temperature Range -20 to 60 Celsius (oC)
Finish Type stainless steel
Protection Level IP67/68
Response Time 1 Seconds
Circuit Type PNP, NPN, NAMUR, etc.
Power Rating 15 to 80 VDC and 15 to 260 VAC
Product Type Fork Level Switch for Liquids
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Compact Vibrating Fork Level Switch Price And Quantity

Price 10200.0 INR/Piece
Minimum Order Quantity 1 Piece

Compact Vibrating Fork Level Switch Product Specifications

Features small size, universal power supply, low power consumption, and lack of calibration requirements
Material stainless steel, specifically SS316 or SS316L
Size 128 mm including threads
Protection Level IP67/68
Finish Type stainless steel
Phase Single Phase
Stoke 10
Temperature Range -20 to 60 Celsius (oC)
Color Silver And Black
Rated Voltage 15 to 80 VDC, 15 to 260 VAC Volt (V)
Display Type No
Operating Temperature -20 to 60 C Celsius (oC)
Circuit Type PNP, NPN, NAMUR, etc.
Frequency 10-55Hz Hertz (HZ)
Mounting Type Top/Side
Current Rating 5A at 24VDC or 220VAC
No Of Poles DPDT
Rated Current 250 Milliampere (mA)
Insulation Resistance 15 to 80 VDC and 15 to 260 VAC
Response Time 1 Seconds
Usage & Applications milk & milk products, edible oil, fuel oil, lube oil, brewery, pharmaceutical fluids etc.
Product Type Fork Level Switch for Liquids
Power Rating 15 to 80 VDC and 15 to 260 VAC
Conductor piezo-electric crystals
Cable Type no
Weight 300 Kilograms (kg)

Compact Vibrating Fork Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wood & Plastic Box
Main Domestic Market All India
Certifications MSME, ISO, GST,

Product Description

https://trumen.in/capacitance-level-switch-manufacturer-india.html

https://trumen.in/tuning-fork-point-level-switch.html

Applications of Compact Vibrating Fork Level Switch

All liquids from free-flowing to viscosity up-to 10,00ocP
Suitable for side as well as top mounting
Minimum and maximum fail safe field selectable
Suitable for free flowing solid & liquid applications
Process temperature max 150C
Process pressure max. 15 bar

Compact Vibrating Fork Level Switch Features

Compact size
12 to 80 VDC for PNP/NPN o/p
Low power consumption
No calibration required
Various customized process connections. like Threaded/Flanged/TC etc starting from 1/2"
Various o/p available like DC PNP/NPN/ Two wire DC 8/16, Two wire AC and NAMUR
External test option using magnet test key

Compact Vibrating Fork Level Switch Technical Specifications

EIUD	Integral Electronics DPDT Output
Supply & Output	Universal Supply DPDT Output 15 to 80 VDC 15 to 260 VAC 50/60Hz
Relay Rating	5 A each @ 24VDC or 220VAC
EIDP	Integral Electronics for PNP Output
Supply & Output	12 to 60 VDC, PNP
Output Limit	250mA max. Short Circuit Safe.
EIAR	Integral Electronics AC series relay
Supply & Output	Two Wire 18 to 260 VAC, Series Relay less than 4mA to release external relay maximum 150mA to magnetize relay
Output Limit	Use relays/contactors will less than 4mA holding current
EIDL	Integral Electronics 4-20mA Loop Powered
Supply & Output	Two Wire DC 8 / 16 mA 12 to 60 VDC
Output Limit	8mA (-1mA max) / 16mA (+1mA max)
EINL/EINH	NAMUR (L-H / H-L) as per IEC-60947-5-6
Supply & Output	8.2 VDC (through NAMUR barrier/isolator)
ERUD	Remote Electronics DPDT Output
Supply & Output	Universal Supply DPDT Output 15 to 80 VDC 15 to 260 VAC 50/60Hz
Relay Rating	5 A each @ 24VDC or 220VAC
Sensor Cable	Remote electronics require special cable from fork to controller. 10 meter standard length (more available on demand)
Max. Viscosity	10,000 cStokes (= cPose/(g/cm3)) (Higher viscosity available on request)
Ambient Temp.	-20^oC ... 60^oC (-4^oF ... 140^oF)
Process Temp.	-20^oC ... 80^oC (-4^oF ... 176^oF)
Extended Process Temperature	-30^oC ... 200^oC (-22^oF ... 392^oF) (extensions & heat sinks required)
Process Pressure	Absolute / max. 15 bar
Wetted Parts	SS 316 or SS 316L, PTFE, PFA, TEFZEL, HALAR
Process Connections	NPT / BSP / Hygienic 1/2", 3/4", 1", 1 1/4", 1 1/2", & Flanged ANSI/JIS/DIN/ASA/custom
Extensions Tube	SS 304, SS 316, SS 316L
Material & Length	50mm to 3,000mm

Robust Stainless Steel Design

Constructed from premium SS316/SS316L stainless steel, this level switch offers exceptional resistance to corrosion and chemical exposure, ensuring longevity in challenging processing conditions. The silver and black finish underscores its durability and professional appearance, suited for both sanitary and industrial applications.

Simple Installation and Maintenance-Free Operation

Designed for top or side mounting, this vibrating fork level switch requires no calibration, significantly reducing setup time. Its compact 128 mm build (including threads) allows for easy integration, while the universal power supply makes it compatible with various voltage ranges, catering to a wide spectrum of industries.

Versatile Application and Reliable Performance

Ideal for a diverse range of fluids including milk, edible oil, fuel, brewery and pharmaceutical liquids, the device operates efficiently between -20 to 60C and under high protection (IP67/68). Its rapid one-second response time and stable DPDT output ensure prompt and accurate level detection.

FAQs of Compact Vibrating Fork Level Switch:

Q: How does the vibrating fork level switch detect fluid levels?

A: The switch utilizes piezo-electric crystals to vibrate its fork; when the forks come into contact with liquid, vibration changes are detected, which then triggers a relay signal for liquid presence or absence.

Q: What types of mounting options are available for this device?

A: This model supports both top and side mounting installations, offering flexibility to suit tank or vessel design constraints in various industrial settings.

Q: Where is this vibrating fork level switch typically used?

A: It is widely applied in the food and beverage, dairy, oil, brewery, and pharmaceutical industries for monitoring levels of fluids such as milk products, edible oil, fuel oil, lube oil, and process fluids.

Q: What is the installation process for the vibrating fork level switch?

A: Installation involves securing the switch using threaded connections at the desired tank or vessel location (top or side). No calibration is necessarysimply connect the universal power supply and integrate with your control system.

Q: What are the benefits of using a cable-free, compact vibrating fork level switch?

A: Advantages include straightforward integration due to compact size, minimal energy usage, versatile voltage acceptance (1580 VDC or 15260 VAC), and the elimination of calibration requirements, reducing operating costs and complexity.

Q: What protection ratings does this level switch offer?

A: Designed with either IP67 or IP68 protection, the switch resists dust ingress and water immersion, making it suitable for rigorous washdown or harsh industrial environments.
