Ceramic Pressure Transmitter

12500.0 INR/Number

Get a Price/Quote

Product Details:

Display no
Installation Type tri-clamp connections
Usage & Applications Process control systems Refrigeration and HVAC controls Hydraulic systems and valve Mechanical and plant engineering Pumps and compressors
Output 4-20 mA, 0-5V, 0-10V, or 0.5-4.5V
Current 20 Milliampere (mA)
Mounting Type Top and Side
Protection Level IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ceramic Pressure Transmitter Price And Quantity

Minimum Order Quantity 1 Number, Number, Number
Price 12500.0 INR/Number

Ceramic Pressure Transmitter Product Specifications

Weight 175 Grams (g)
Accuracy 0.5%FSO %
Output 4-20 mA, 0-5V, 0-10V, or 0.5-4.5V
Connectivity Type Threaded Connections:
IP Rating IP65
Pole Type SPDT
Current 20 Milliampere (mA)
Operating Temperature -20 to +85 Celsius (oC)
Mounting Type Top and Side
Protection Level IP65
Features Measuring ranges from 1.6bar to 250bar Gauge type Accuracy: 0.5%FSO Calibrated and temperature compensated Ceramic pressure sensor design Variety of Pressure & Electrical connections Output 4...20mA, 0...10V, 0.5...4.5V and others
Sensor Type piezoresistive sensors
Working Temperature -20 to +85 Celsius (oC)
Measuring Range 0-25bar
Diameter 18mm Millimeter (mm)
Display no
Product Type Ceramic Pressure Transmitter
Supply Voltage 12....36Vdc
Pressure Type gauge
Usage & Applications Process control systems Refrigeration and HVAC controls Hydraulic systems and valve Mechanical and plant engineering Pumps and compressors
Installation Type tri-clamp connections
Application Industrial
Warranty 1 Years
Dimension (L*W*H) typically small and compact

Ceramic Pressure Transmitter Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 200 Number, Number, Number Per Week
Delivery Time 4 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details As per product dimension
Main Domestic Market All India
Certifications ISO, MSME, GST

Product Description

https://trumen.in/ceramic-pressure-transmitter-manufacturer.html

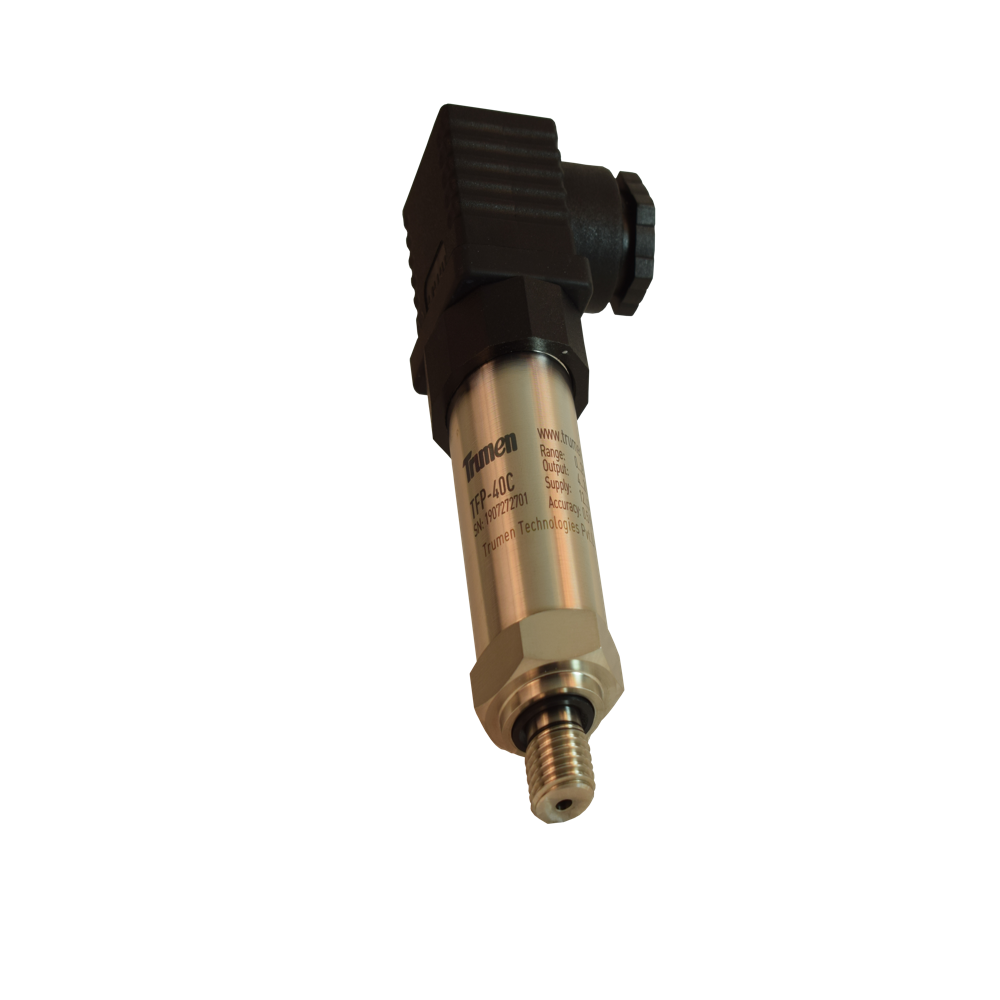

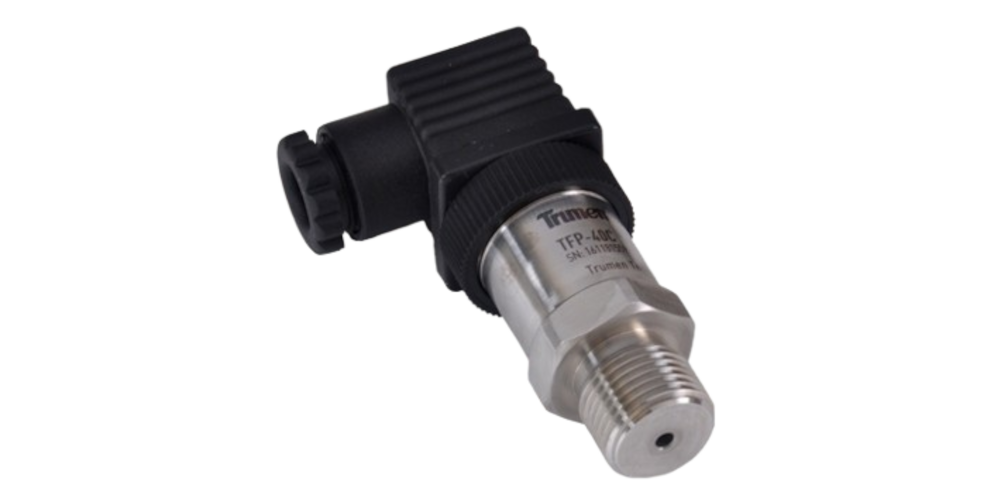

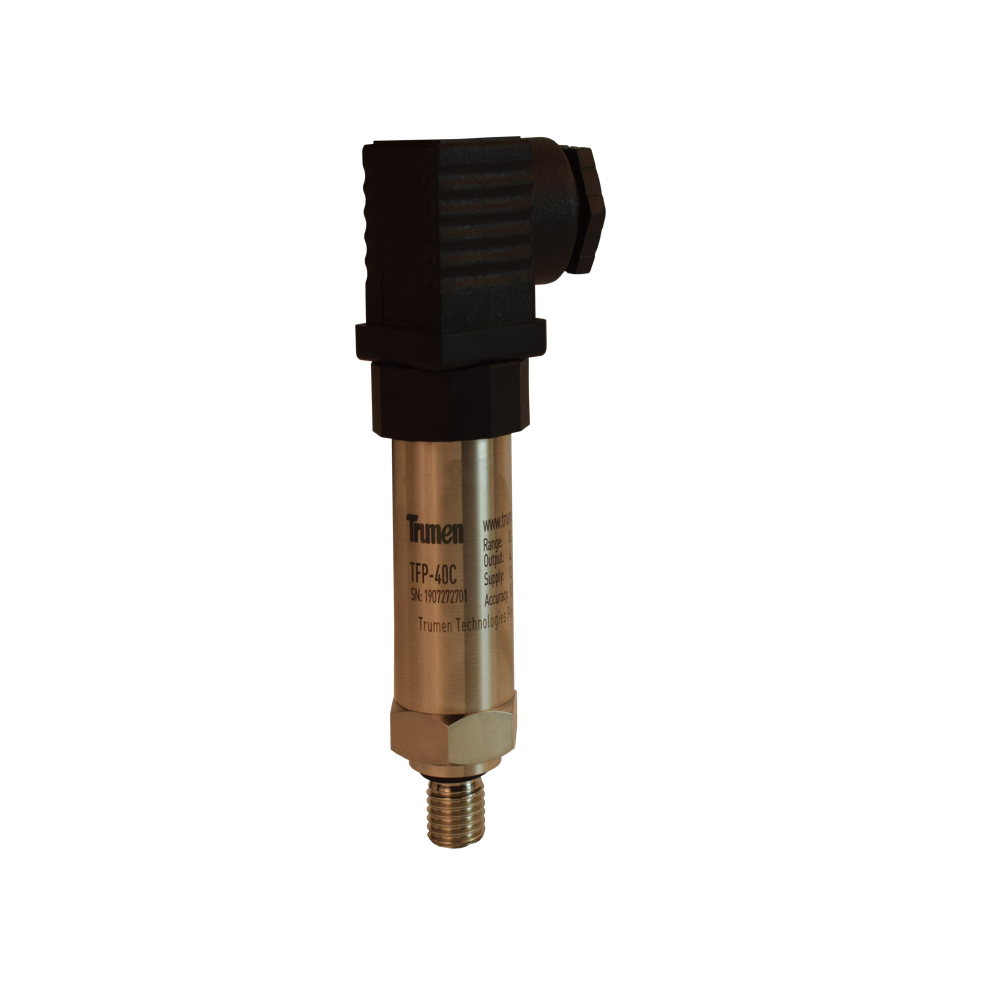

Ceramic Pressure Transmitter-TFP40C

The Ceramic Pressure Transmitter uses air venting in the cable connection to eliminate liquid pressure with air pressure. Once immersed, the transmitter's fluid pressure will be greater than the air pressure. Because of this, the diaphragm tends to become slightly distorted. This distortion is invisible to the human eye, but it may be identified with piezoresistive sensors. Trumen Ceramic Pressure Transmitter identifies liquid pressure in this way.

Product details

Ceramic Pressure Transmitter- TFP 40C Model

Compensated Temperature Range	0 to +70 deg C
Insulation Resistance	100 M ohm
Net Weight	Approx 175 g
Operating Temperature Range	-20 to +85 deg C
Output Signal	4-20mA
Over Pressure	1.5xFS
Pressure Range	0-250 bar
Shock	100 g
Storage Temperature Range	-40 to +125 deg C
Vibration	10 g
Power Supply	12-36 V DC

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pressure Transmitter' category

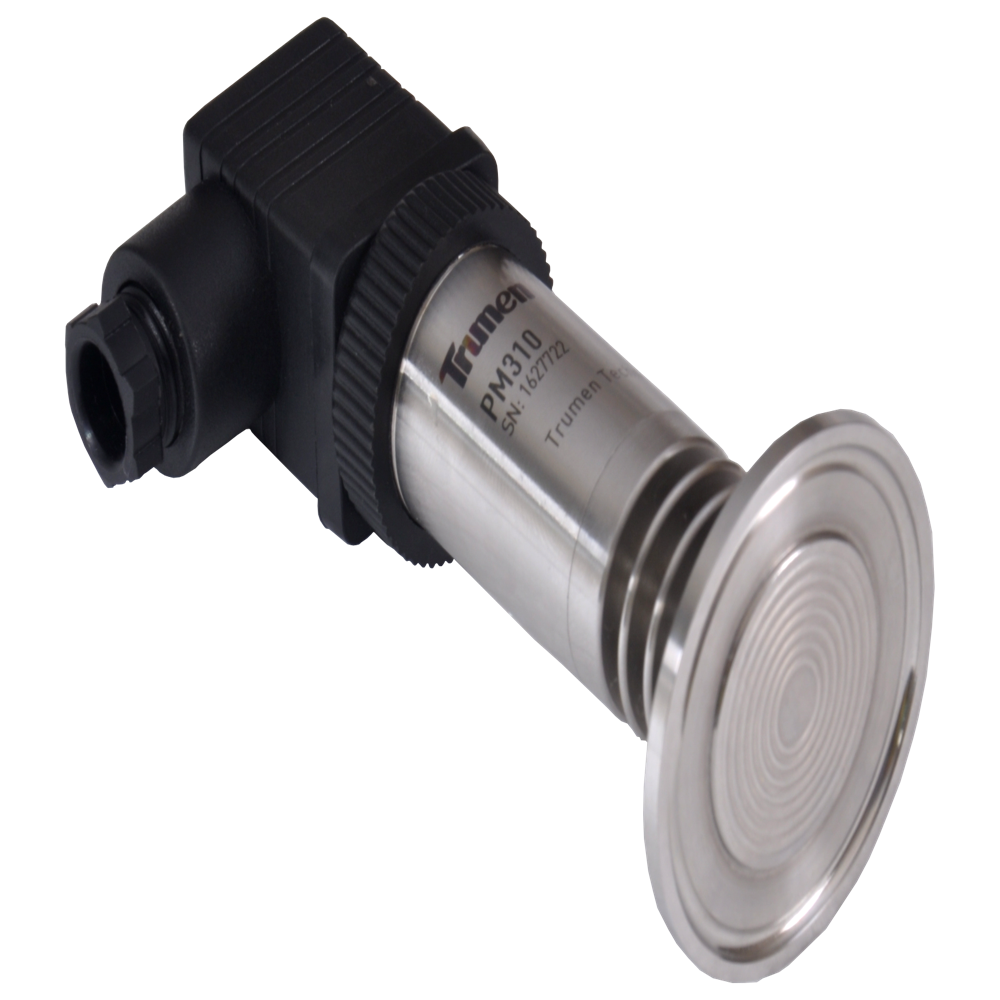

Flush Diaphragm Pressure Transmitter Price : 18000.0 INR/Piece Minimum Order Quantity : 1 Supply Voltage : 24 vdc Volt (v) Pressure Type : Gauge, Absolute, sealed gauge Display : no Usage & Applications : Food & beverage, process control, pharmaceutical, Dairy process, paper & pulp industry Installation Type : direct mounting with threaded connections or, in some cases, welded connections Output : 420 mA, 010V, 05V and Modbus RS485 Accuracy : 0.5 % Protection Level : IP65 Mounting Type : Top Current : 20 Milliampere (mA) Product Type : Pressure Transmitter Diameter : 50.5 Millimeter (mm) Measuring Range : 250 Working Temperature : 125 Celsius (oC) Frequency : 2.4 Kilohertz ( KHZ ) Sensor Type : piezoresistive pressure sensor Warranty : 1 year Application : Process control system, Food & beverage , Pharmaceutical , Dairy industry, Connectivity Type : 11/2 inch clamp flange interface( 50.4mm),and cutomized Weight : Approx 285 Grams (g) Features : measuring range 10mBar to 250Bar, Accuracy 0.5%, Operating Temperature : 150 Celsius (oC) IP Rating : IP65 Input : 1236 VDC Function : Pressure measurement Measurement Range : 0250Bar Material : Stainless steel Switch Type : micro switch SPDT (Single Pole, Double Throw) Voltage : 1236 Volt (v) Interface : piezoregistive pressure sensor Wireless : Yes Power Supply : 1236 V DC Signal Type : Analog Pole Type : SPDT Usage : Industrial
