Solid Level Switch

Name: Solid Level Switch
Brand: TRUMEN TECHNOLOGIES PVT. LTD.
Price: 13500.0 INR
Availability: InStock

13500.0 INR/Piece

Get a Price/Quote

Product Details:

Response Time 1 sec Seconds
Temperature Range 150 Celsius (oC)
Max. Current 5 Amps Ampere (amp)
Protection Level High
Circuit Type Electronic Type
Product Type Switch for Solid
Power Rating 15 to 80 VDC and 15 to 260 VAC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Solid Level Switch Price And Quantity

Price 13500.0 INR/Piece
Minimum Order Quantity 1 Piece

Solid Level Switch Product Specifications

Usage & Applications to detect the level of bulk solids, powders, and granular materials in storage and process vessels
Cable Type specialized cable for remote electronics
Color Orange and Silver
Power Rating 15 to 80 VDC and 15 to 260 VAC
Rated Voltage 15 to 80 VDC and 15 to 260 VAC Volt (V)
Max. Voltage 220-260 Volt (V)
Rated Current 5 A each @ 24VDC or 220VAC Ampere (amp)
Product Type Switch for Solid
Features compact size, low power consumption, and lack of required calibration
Circuit Type Electronic Type
Material stainless steel
Protection Level High
Max. Current 5 Amps Ampere (amp)
Display Type No.
Operating Temperature -20 to 80C Celsius (oC)
Stoke 10
Size 250mm to 3000mm
Response Time 1 sec Seconds
Temperature Range 150 Celsius (oC)

Solid Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wood & Plastic Box
Main Domestic Market All India
Certifications MSME, ISO, GST

Product Description

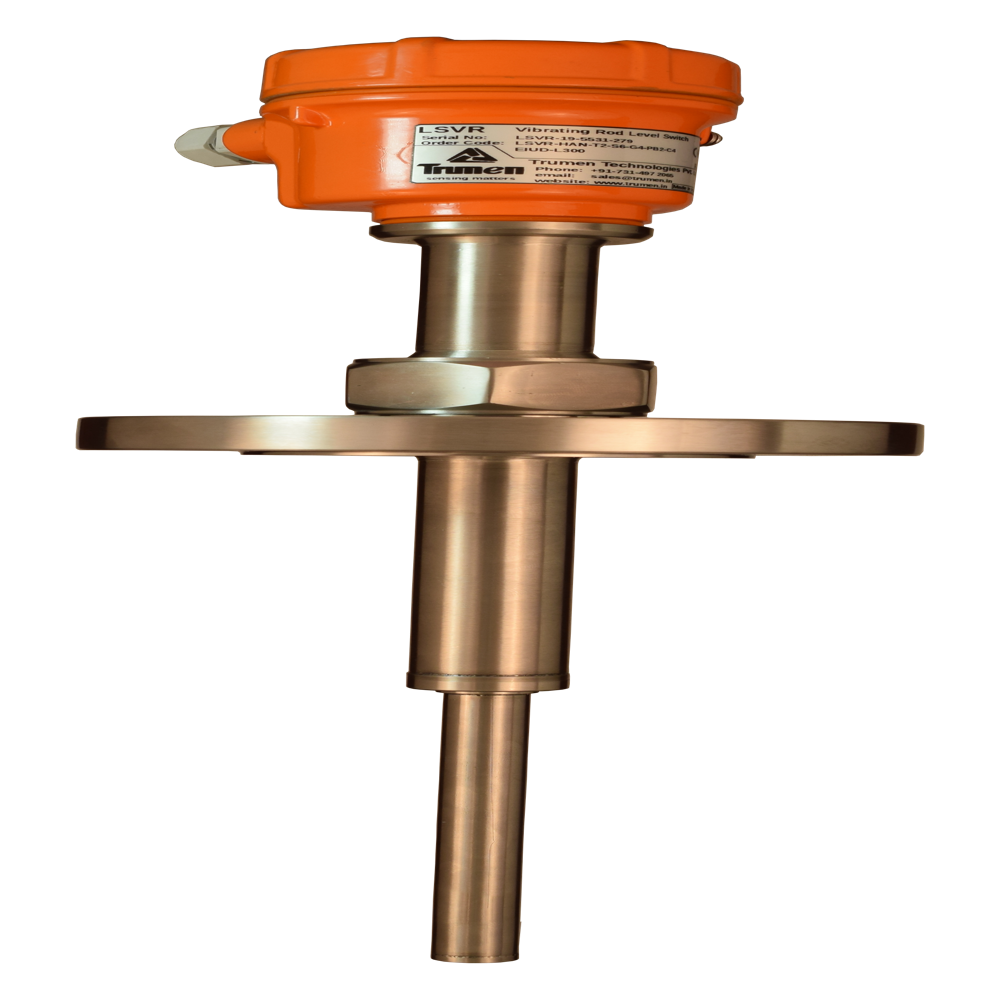

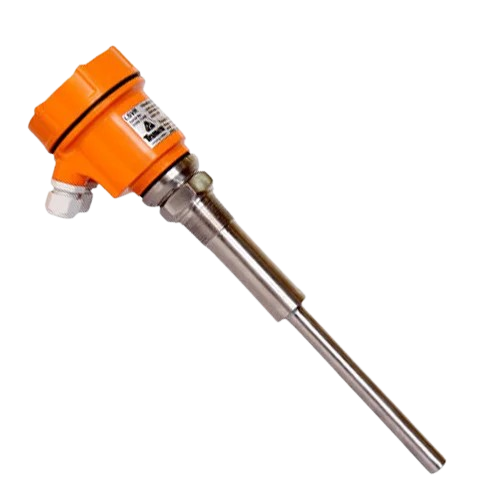

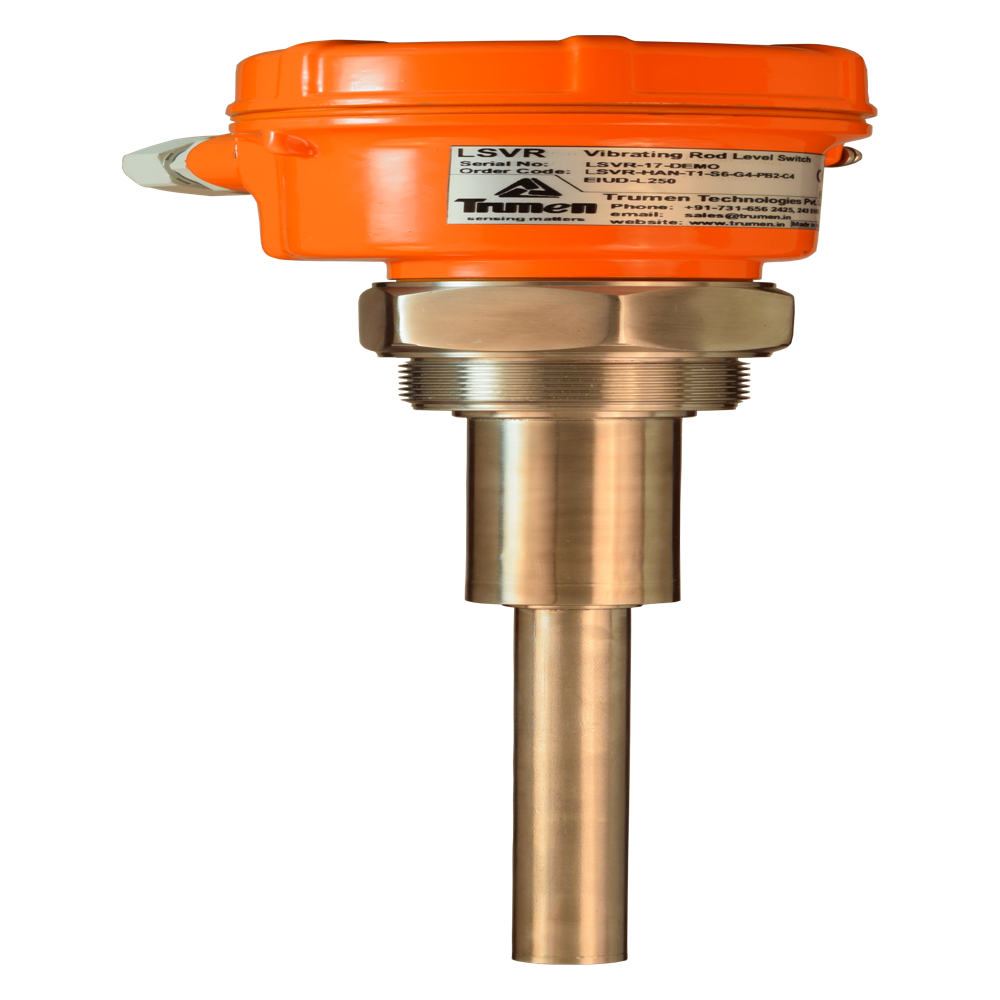

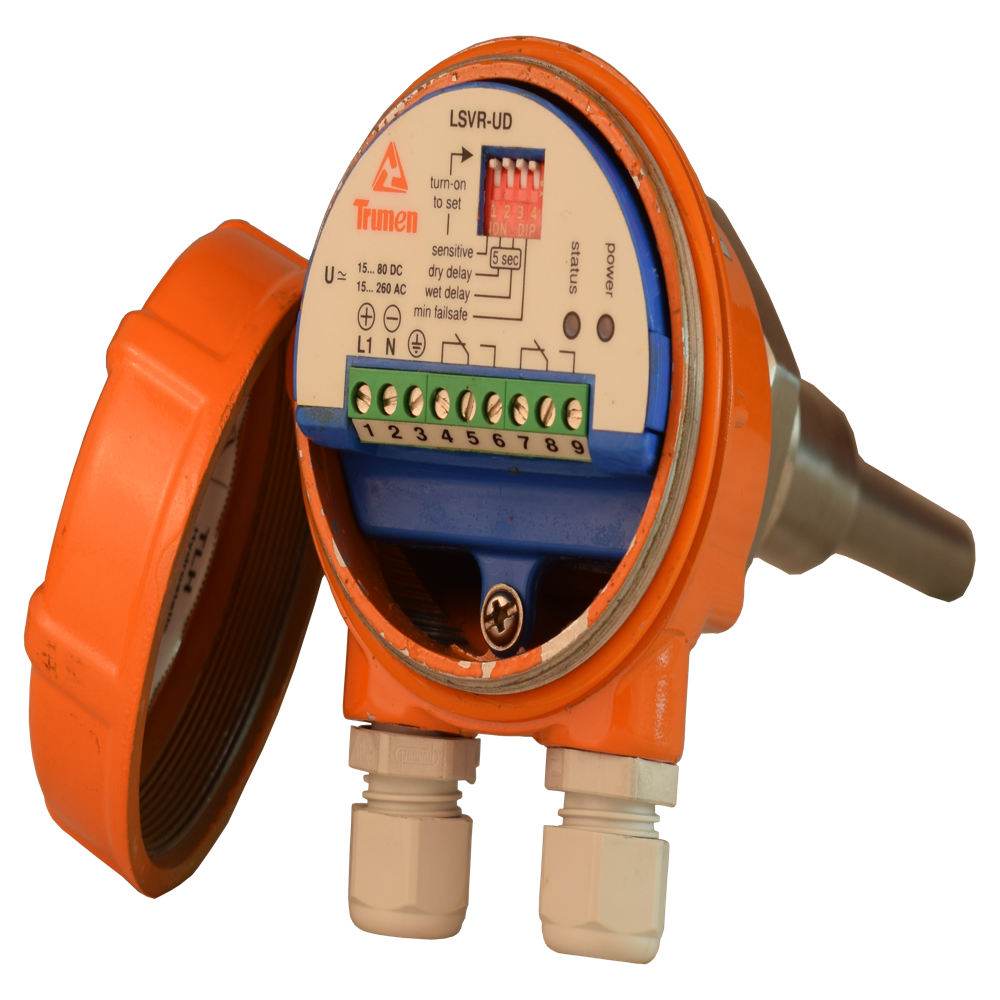

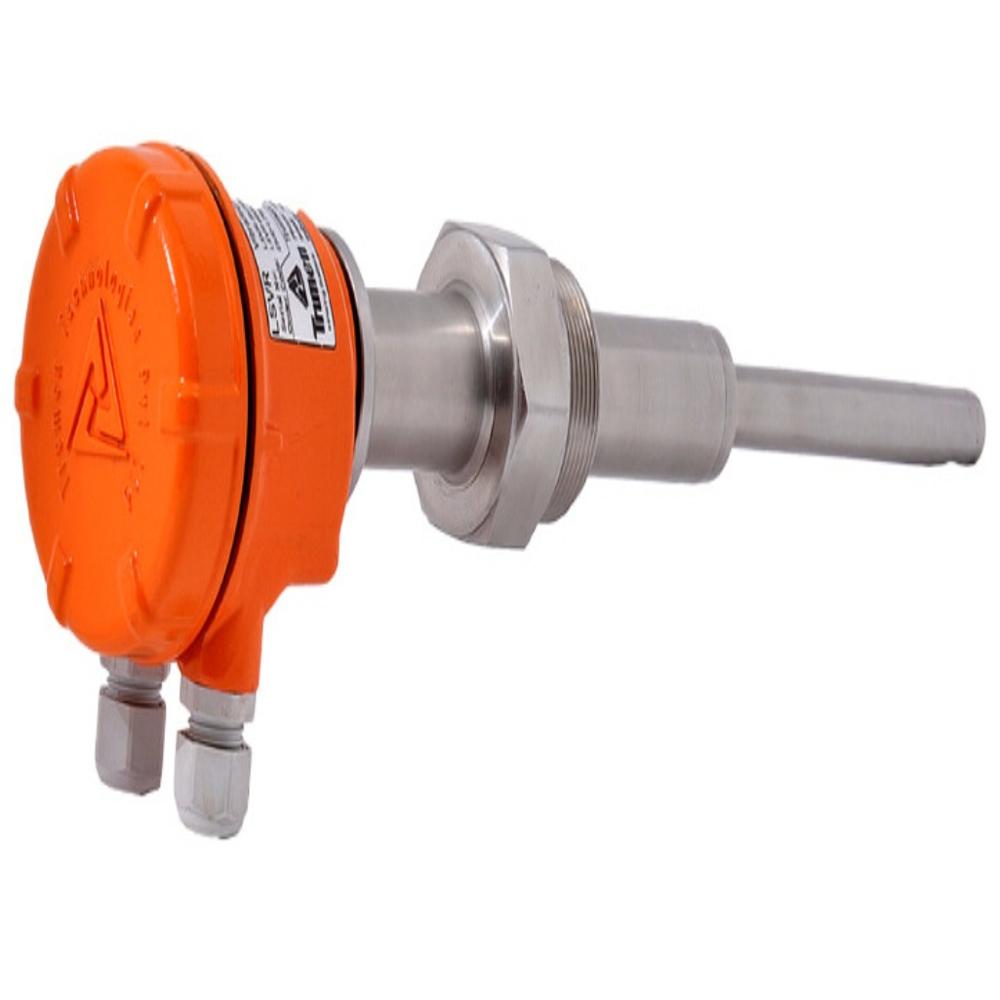

Vibrating Rod level switch LSVR

Counted as one of the reputed firms in this domain, we are engrossed to manufacture, export and supply an optimum grade assortment of 220-260 Volts (V) Solid Level Switch. The offered switch is manufactured using quality approved components with the aid of sophisticated techniques by our diligent professionals. Admired for its robustness, this switch is available for our valuable clients in bulk at competitive prices. Moreover, the provided Level Switch for Solid is used in cement plant and fly ash level detection in ESP hoppers.

Features:

High sensitivity
Requires less maintenance
Robust design
Easy installation

Product details

Material/Body	Metal
Media Type	Liquid, Dry Material
Mounting Options	Side Mount, Top Mount
Process pressure	Max 15 bars
Process temperature	Max 250 degree celsius
