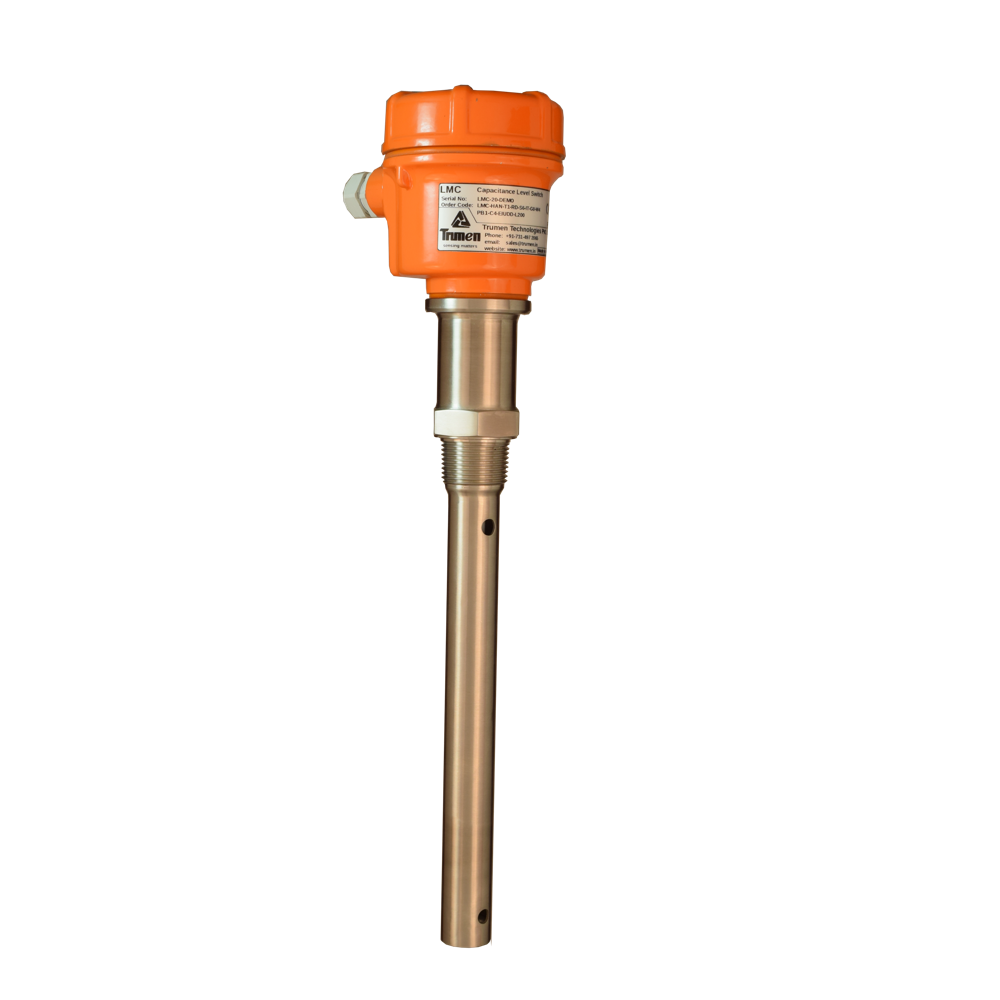

RF Capacitance Level Switch

Name: RF Capacitance Level Switch
Brand: TRUMEN TECHNOLOGIES PVT. LTD.
Price: 12500.0 INR
Availability: InStock

12500.0 INR/Piece

Get a Price/Quote

Product Details:

Temperature Range -30 to 200 degree centigrade Celsius (oC)
Protection Level IP67/68
Power Rating 15 to 80 VDC and 15 to 260 VAC (50/60Hz)
Product Type Level Limit Switch
Material SS 316, SS 316L, PTFE, Part ceramic
Stoke 10
Rated Voltage 260 Volts AC Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

RF Capacitance Level Switch Price And Quantity

Price 12500.0 INR/Piece
Minimum Order Quantity 1 Piece

RF Capacitance Level Switch Product Specifications

Operating Temperature -20 C ... 100 C Celsius (oC)
Current Rating 5A at 230VAC or 5mA at 24VDC
Power Rating 15 to 80 VDC and 15 to 260 VAC (50/60Hz)
Display Type Analog
Frequency 10-55Hz Hertz (HZ)
Material SS 316, SS 316L, PTFE, Part ceramic
Rated Current 5 Amps Ampere (amp)
Rated Voltage 260 Volts AC Volt (V)
Features Compact size, Fast switching response, Process temperature max 600 C, Process pressure max. 20 bar
Temperature Range -30 to 200 degree centigrade Celsius (oC)
Stoke 10
Phase Single Phase
Color Orange
Product Type Level Limit Switch
Size Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 20,000mm
Protection Level IP67/68

RF Capacitance Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 1 Piece Per Week
Delivery Time 4 Week
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Corrugated Box
Main Domestic Market All India
Certifications ISO, MSME, GST, Performance CE

Product Description

https://trumen.in/capacitnace-point-level-switch-manufacturers.html

Capacitance Level Switch -LMC

RF Capacitance Level Switch has wide application in nuclear power generation arena. This stainless steel product can be used under -20 degree C to 80 degree C operating temperature. Compact in shape, this switch adopts advanced surface mounting technology for error free operation. Integral metering points of this RF switch promote trouble free local measurement of loop current. As part of its operating principle, generated capacitance of ground reference and sensing probe tends to rise and fall with the status of stored media in the tank. This RF Capacitance Level Switch is acknowledged for its error free operation, accurate diameter, user friendly design, ease of handling and low operating cost.

Features:

Operating temperature of this product ranges between -20 degree C to 80 degree C.
Useful for determining loop current
Compact shape, ergonomic look, easy to handle
Application of surface mounting technology

Product details

Process pressure	Max. 15 bars
Process temperature	Max. 200 degree celsius
Material/Body	Metal
Mounting Options	Top Mount,Side Mount
Media Type	Dry Material, Liquid
Process pressure	Max. 15 bars
