Capacitance Level Sensor
Capacitance Level Sensor Capacitance Level Sensor Capacitance Level Sensor Capacitance Level Sensor Capacitance Level Sensor

Capacitance Level Sensor

Product Details:

  • Temperature Range -20 to 100 Celsius (oC)
  • Mechanical Life 2 Years
  • Circuit Type Electronic Type
  • Response Time 1 sec
  • Rated Voltage 15 to 80 VDC and 15 to 260 VAC Volt (V)
  • Protection Level IP67/68
  • Max. Current 150mA to 250mA
  • Click to View more
X

Capacitance Level Sensor Price And Quantity

  • 1 Piece

Capacitance Level Sensor Product Specifications

  • 10
  • 150mA to 250mA
  • 1.3 Kilograms (kg)
  • 50mm to 3,000mm
  • Orange
  • -20 to 100 Celsius (oC)
  • 2 Years
  • IP67/68
  • 1 sec
  • 15 to 80 VDC and 15 to 260 VAC Volt (V)
  • Electronic Type
  • sensing the change in capacitance between a sensing rod and an earth extension.
  • 3
  • Top/ Side
  • 5 A or 6 A @ 24 VDC or 230 VAC
  • harsh environments, high temperatures
  • 15 to 80 VDC and 15 to 260 VAC Volt (V)
  • SS
  • 1 or 2 poles
  • Point Level Switch
  • -20C ... 100C Celsius (oC)

Capacitance Level Sensor Trade Information

  • Cash Against Delivery (CAD) Cash in Advance (CID) Cheque
  • 200 Piece Per Month
  • 4 Week
  • No
  • If order is confirmed we will reimburse the sample cost
  • Cartoon box
  • Central America South America
  • All India
  • MSME, ISO, GST, Performance Certificate

Product Description

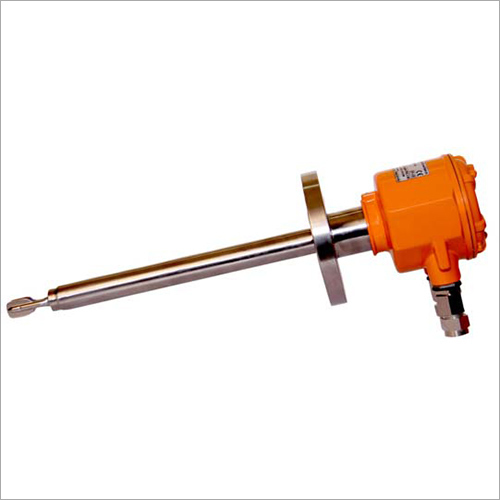

Our organization is dedicated to offer an excellent quality 12 Volt Capacitance Level Sensor, which is manufactured using high grade raw material and advanced quality. The offered 1.2 kg Capacitance Level Sensor is perfect for non-sticky liquids and solids, single point/multipoint/pump control switching on single probe. This point level switch is rigorously inspected by the team of our professionals. Furthermore, Exd version available-suitable for gas group IIC, T6 as per IEC 60079-1-2007 & IEC 600529-2001.

Features:

  • Easy dip switch calibration.
  • Minimum and maximum fail safe field selectable.
  • Customized process connections like Threaded/Flanged/Hygienic, etc.
  • Remote electronic version available on request.

Product details

Product Name:- Capacitance level switch-LMC

Ambient Temp

-20 to 60 deg C

High Temperature Probes

600 deg C

Material

Stainless steel

PNP with DC Supply

15 to 60 VDC

Power supply

15 to 80 VDC

Process pressure

Max. 15 bars

Process Temp

-20 to 100 deg C

Universal In DPDT Output

15 to 80 VDC

Universal In SPDT Output

15 to 80 VDC

Sensing Distance

50mm - 3m

Brand

Trumen
