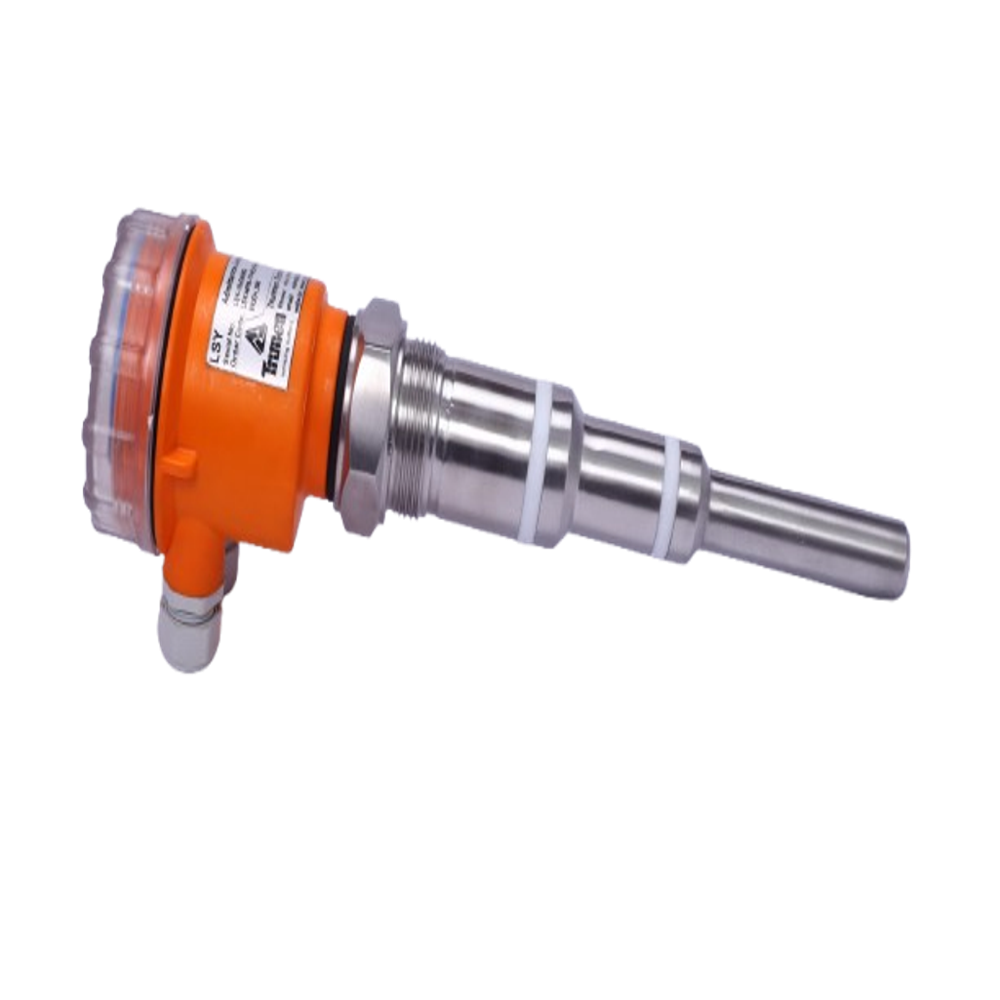

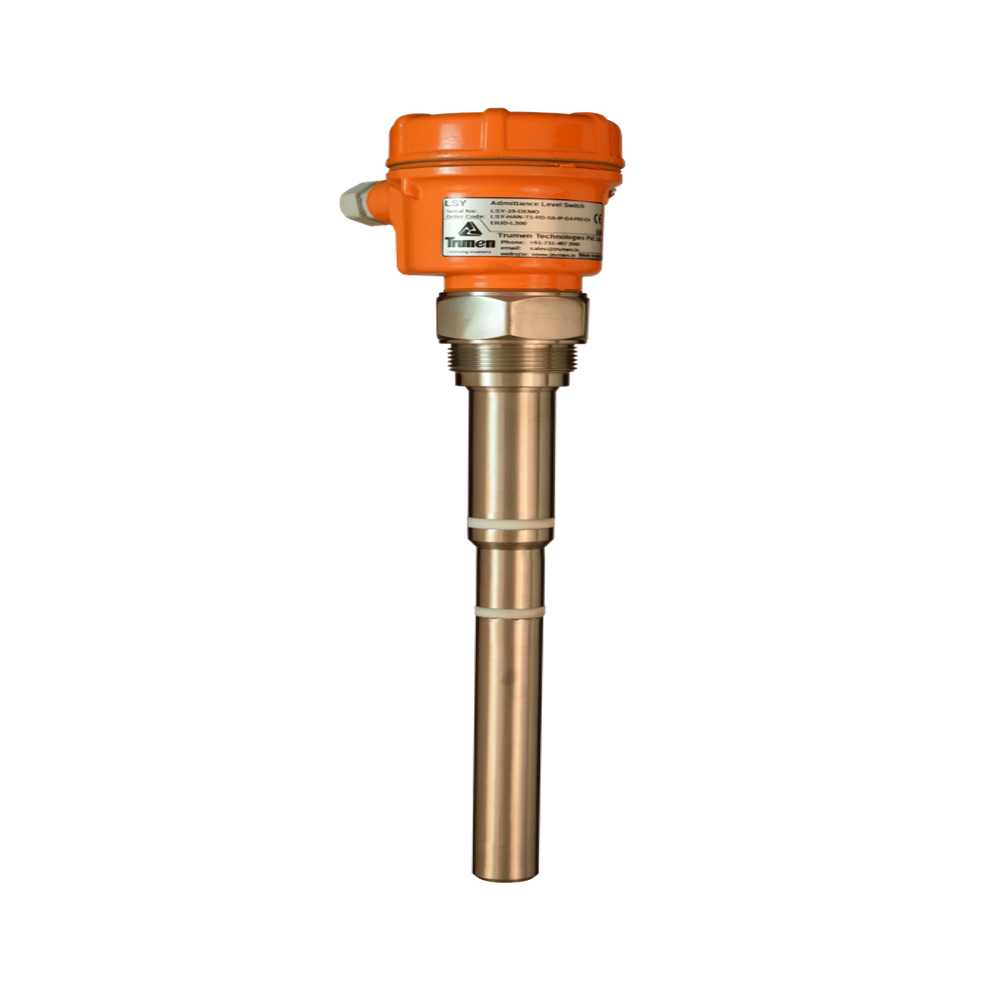

Ash Level Switch

16500.00 INR/Piece

Get a Price/Quote

Product Details:

Frequency 10-50KHz
Finish Type stainless steel
Features compact size, universal power supply, low power consumption, and active shield compensation against material buildup
IP Rating IP67/68
Rated Voltage 260 Volts (V)
Usage & Applications primarily used for detecting the level of various materials, including sticky and non-sticky solids and liquids, in industrial settings
Protection Level IP67/68
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ash Level Switch Price And Quantity

Price 16500.00 INR/Piece
Minimum Order Quantity 1 Piece

Ash Level Switch Product Specifications

Rated Current 5mA at 24VDC or 220VAC
Circuit Type PNP, NPN, NAMUR, etc.
Mounting Type Top /Side
Display Type No
Mechanical Life Long
Temperature Range Max 600 degree celsius Celsius (oC)
Power Rating 15 to 80 VDC and 15 to 260 VAC, 50/60Hz
Max. Voltage 15-80 VDC Volt (V)
Operating Temperature -20C to 80C Celsius (oC)
Max. Current 5 Amps
Response Time 1 sec
Material stainless steel
Product Type Level Switch
Current Rating 5mA at 24VDC or 220VAC
Usage & Applications primarily used for detecting the level of various materials, including sticky and non-sticky solids and liquids, in industrial settings
Stoke 10
Protection Level IP67/68
No Of Poles 1 to 4
IP Rating IP67/68

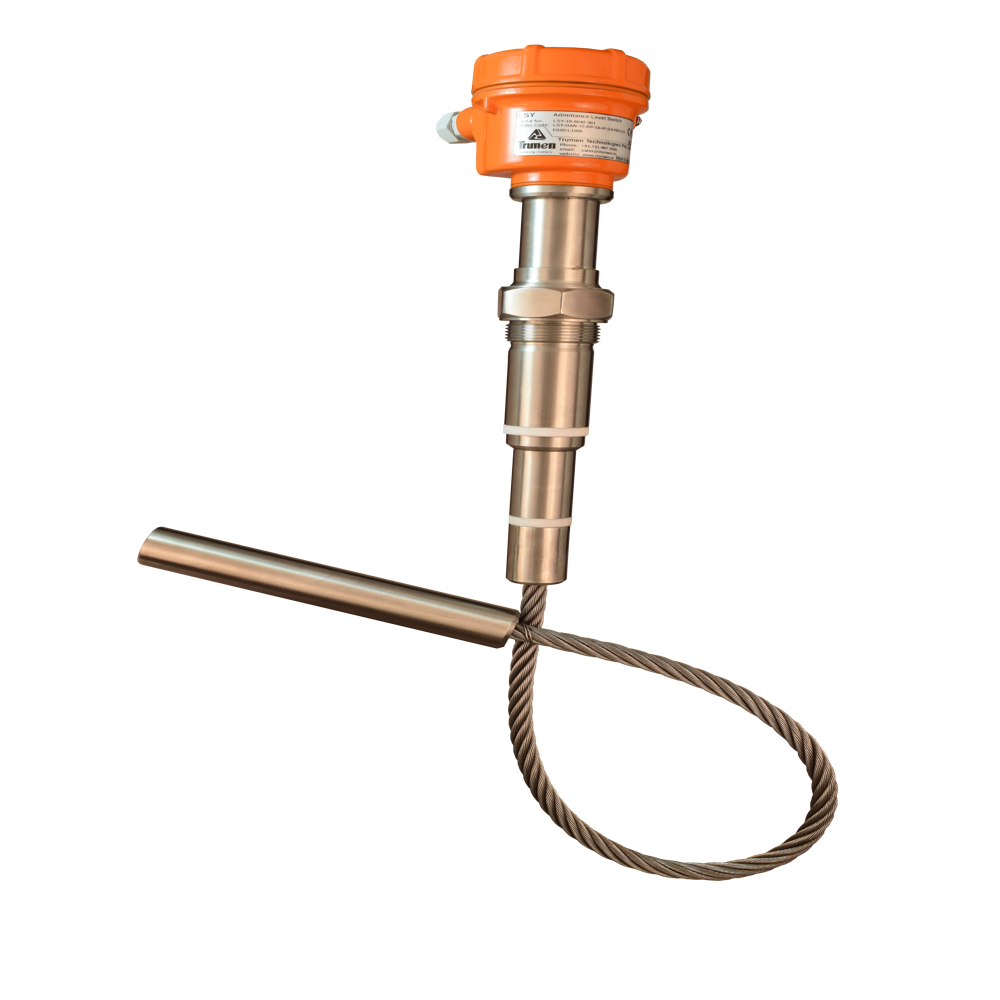

Size Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 10,000mm
Rated Voltage 260 Volts (V)
Frequency 10-50KHz
Weight 500 Grams (g)
Color Orange And Silver
Finish Type stainless steel

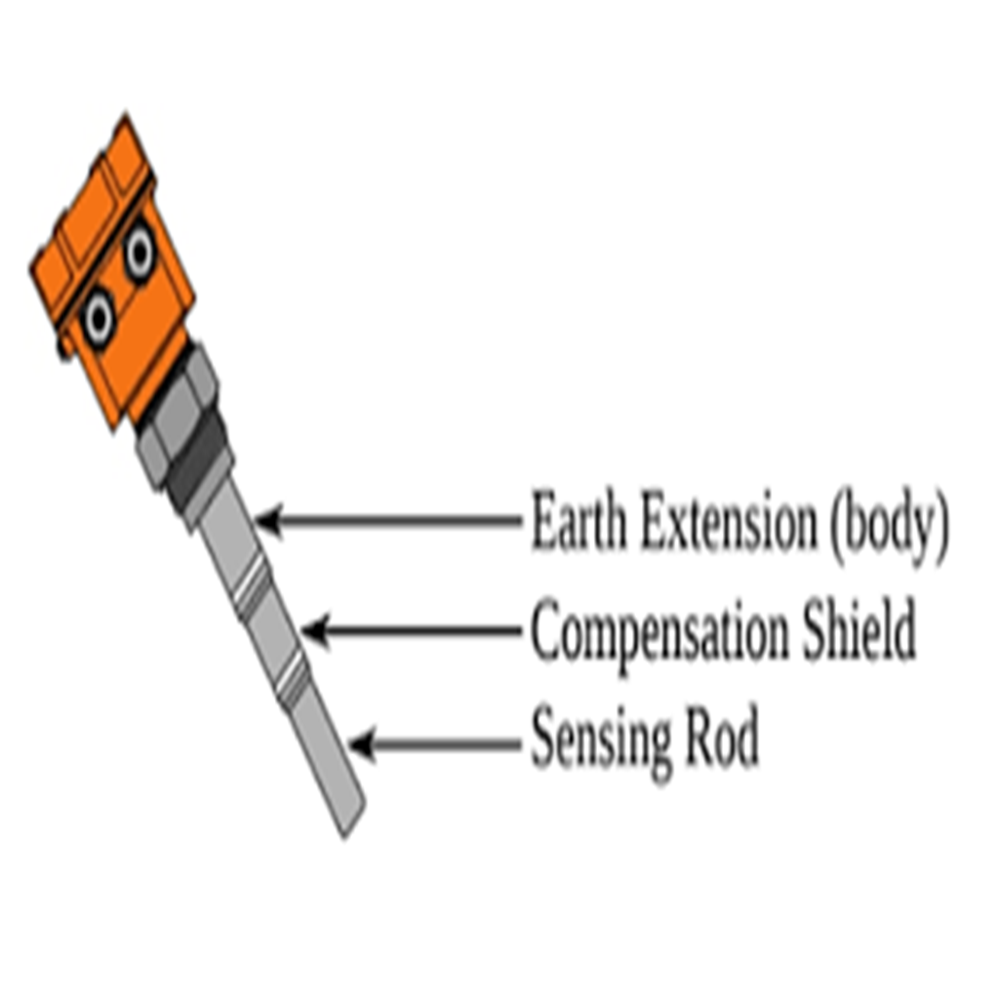

Features compact size, universal power supply, low power consumption, and active shield compensation against material buildup

Ash Level Switch Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 120 Piece Per Month
Delivery Time 4 Week
Sample Policy Contact us for information regarding our sample policy
Packaging Details as per product dimensions
Main Domestic Market All India
Certifications MSME, ISO, GST, Performance certificates

Product Description

https://trumen.in/admittance-point-level-switch-manufacturers.html

Admittance level switch-LSY

Ash Level Switch can be used under 15 bar of working pressure and maximum 600 degree C of operating temperature level. Due to its moving parts free design, this level switch remains unaffected during friction. Sensitivity level and timing delay of this product can be adjusted. Enclosure of this standard grade product has IP67 protection rating. Due to its anti static design, this product remains unaffected under working environment where electrostatic discharge is common occurrence. Quality of offered Ash Level Switch has been verified on the basis of its performance, operating principle, sensitivity range, design, operating charge and service life.

Features:

Offered level switch can endure maximum 15 bar of operating pressure.
It can be used under up to 600 degree C operating temperature.
IP67 protection rating, accurate dimension, stable performance

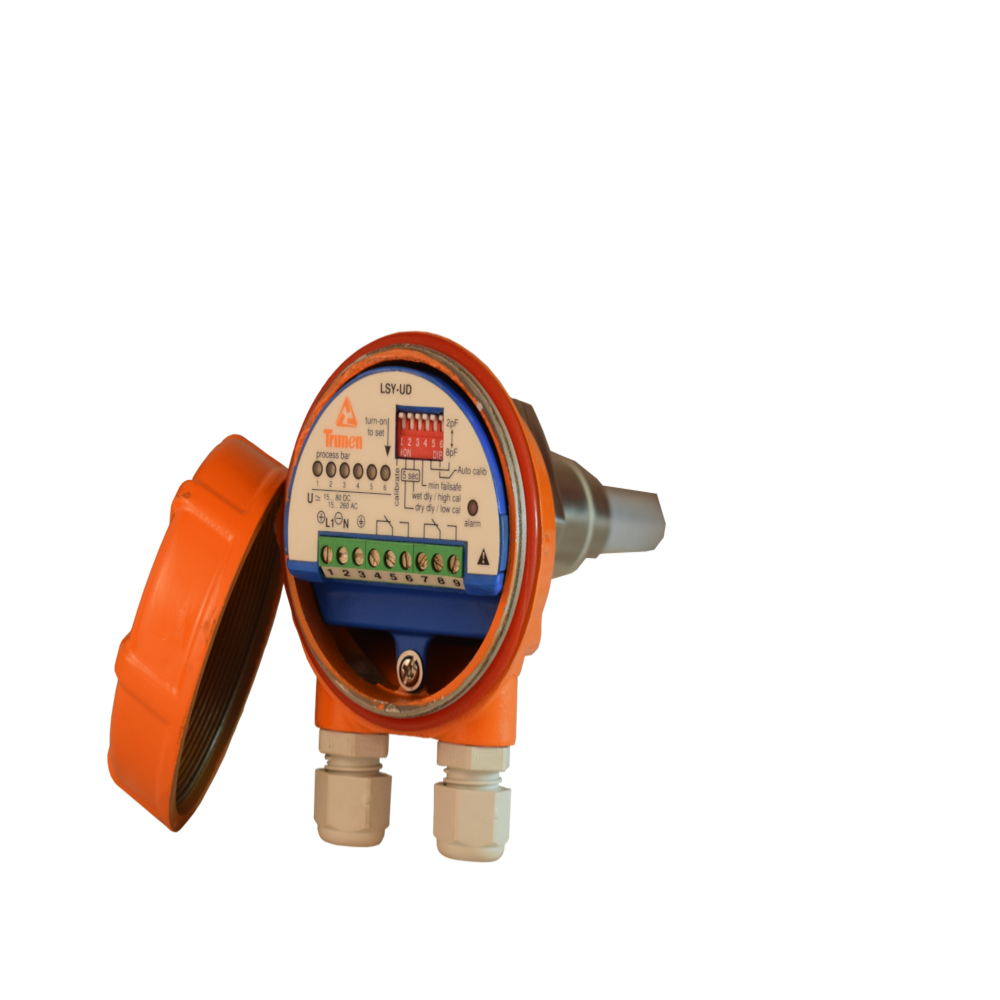

Adjustable parameters, long lasting quality, ability to resist electrostatic discharge

Product details

Insertion length	100mm to 10000mm for flexible rope probe
Material	Stainless Steel
Power supply	15-80 VDC
Process pressure	Max 15 bars
Process temperature	Max 600 degree celsius
Brand	Trumen
Mounting Options	Side Mount
