Level Sensing Controllers For Material Handling Industries

Level Sensing Controllers For Material Handling Industries

Name: Level Sensing Controllers For Material Handling Industries
Brand: TRUMEN TECHNOLOGIES PVT. LTD.
Price: 14500.0 INR
Availability: InStock

14500.0 INR/Piece

Get a Price/Quote

Product Details:

Circuit Type Electronic
Max. Current 5 Ampere (amp)
Rated Voltage 24 V DC or 230 V AC Volt (V)
Protection Level IP 67/68
Temperature Range max. 200 deg C Celsius (oC)
Product Type Level Sensing Controllers
Power Rating 15 to 80 VDC and 15 to 260 VAC ranges
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Level Sensing Controllers For Material Handling Industries Price And Quantity

Price 14500.0 INR/Piece
Minimum Order Quantity 1 Piece

Level Sensing Controllers For Material Handling Industries Product Specifications

Max. Current 5 Ampere (amp)
Color orange, silver
Size compact
Frequency 55 Hertz (HZ)
Circuit Type Electronic
Usage & Applications Industrial use
Features Compact in size, max Temperature-600 DegC
Material SS
Current Rating 24VDC or 220VAC.
Max. Voltage 24 V DC or 230 V AC Volt (V)
Display Type Analog
Phase single
Stoke 10
Operating Temperature 100 Celsius (oC)
Protection Level IP 67/68
Mounting Type top/side
Power Rating 15 to 80 VDC and 15 to 260 VAC ranges
Product Type Level Sensing Controllers
Rated Voltage 24 V DC or 230 V AC Volt (V)
Temperature Range max. 200 deg C Celsius (oC)

Level Sensing Controllers For Material Handling Industries Trade Information

Payment Terms Cash Against Delivery (CAD), Cash in Advance (CID), Cheque
Supply Ability 100 Piece Per Month
Delivery Time 3 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details corrugated box
Main Export Market(s) North America, Asia
Main Domestic Market All India
Certifications MSME, GST, ISO, Performance certificate

Product Description

https://trumen.in/admittance-point-level-switch-manufacturers.html

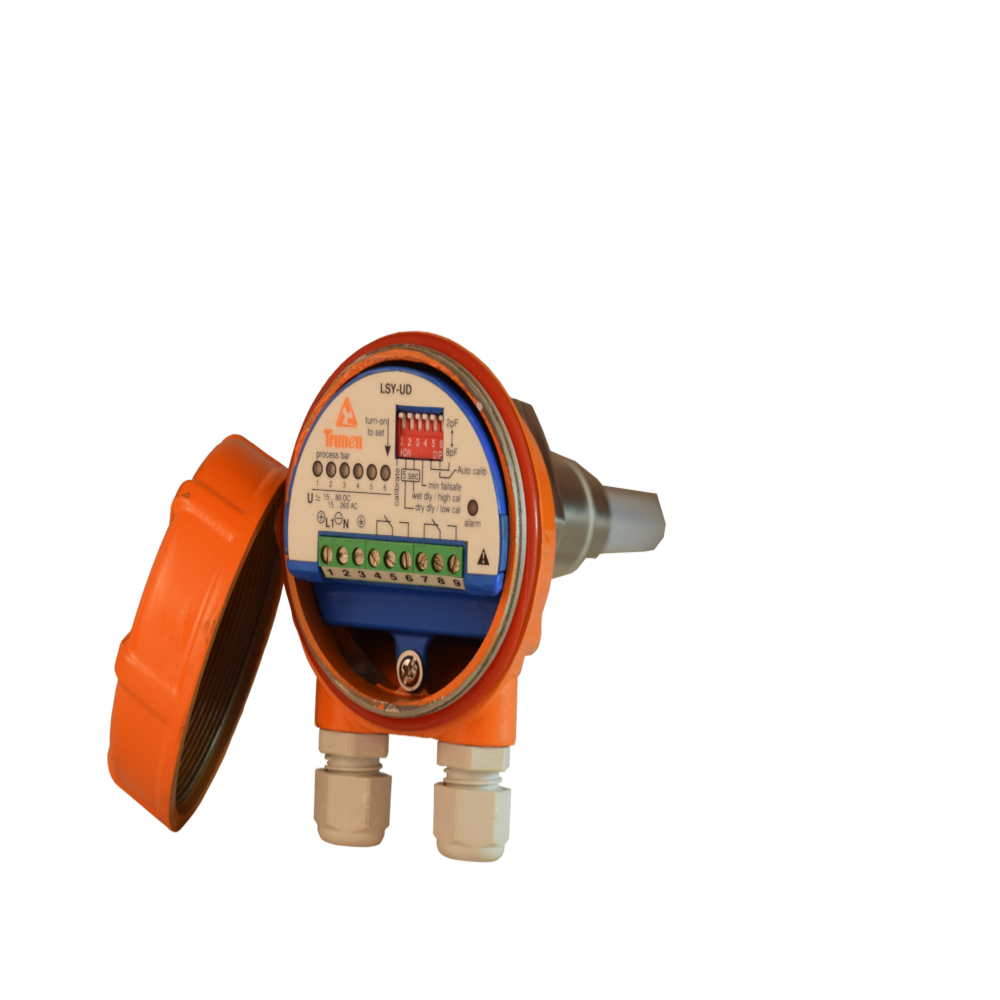

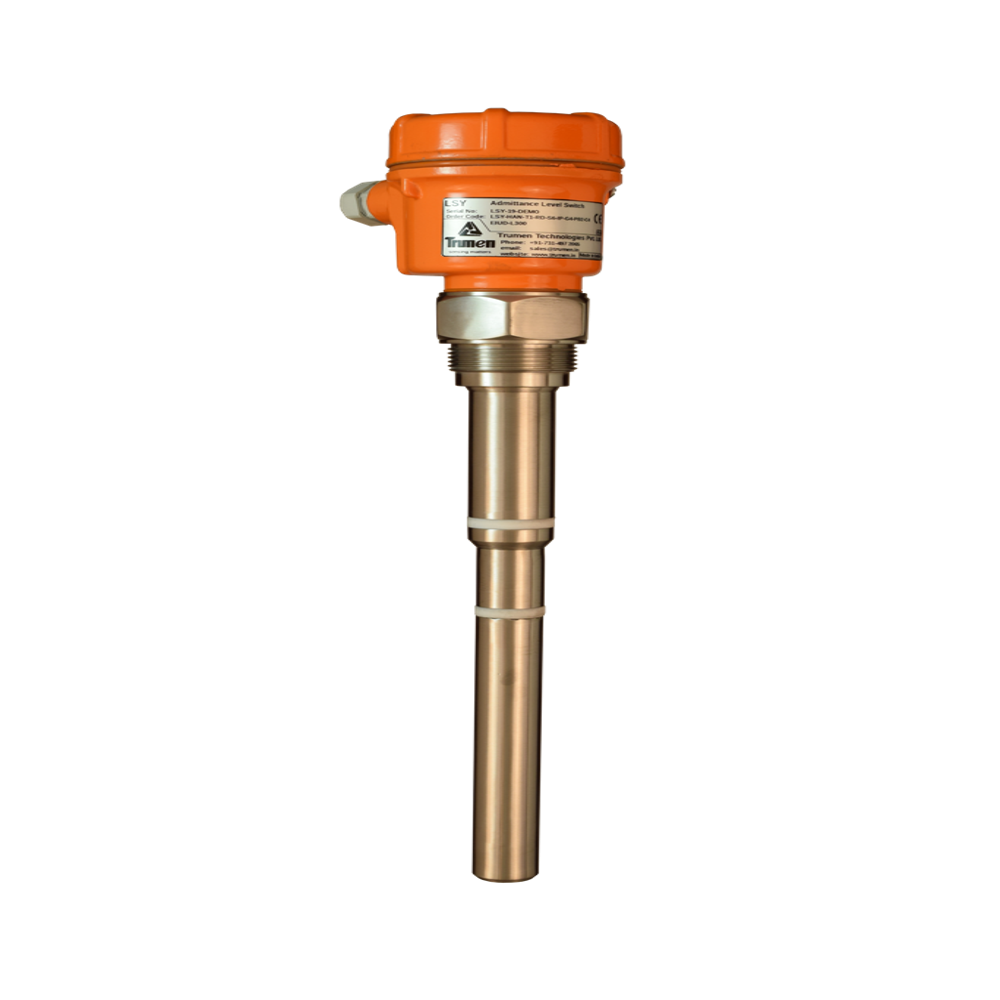

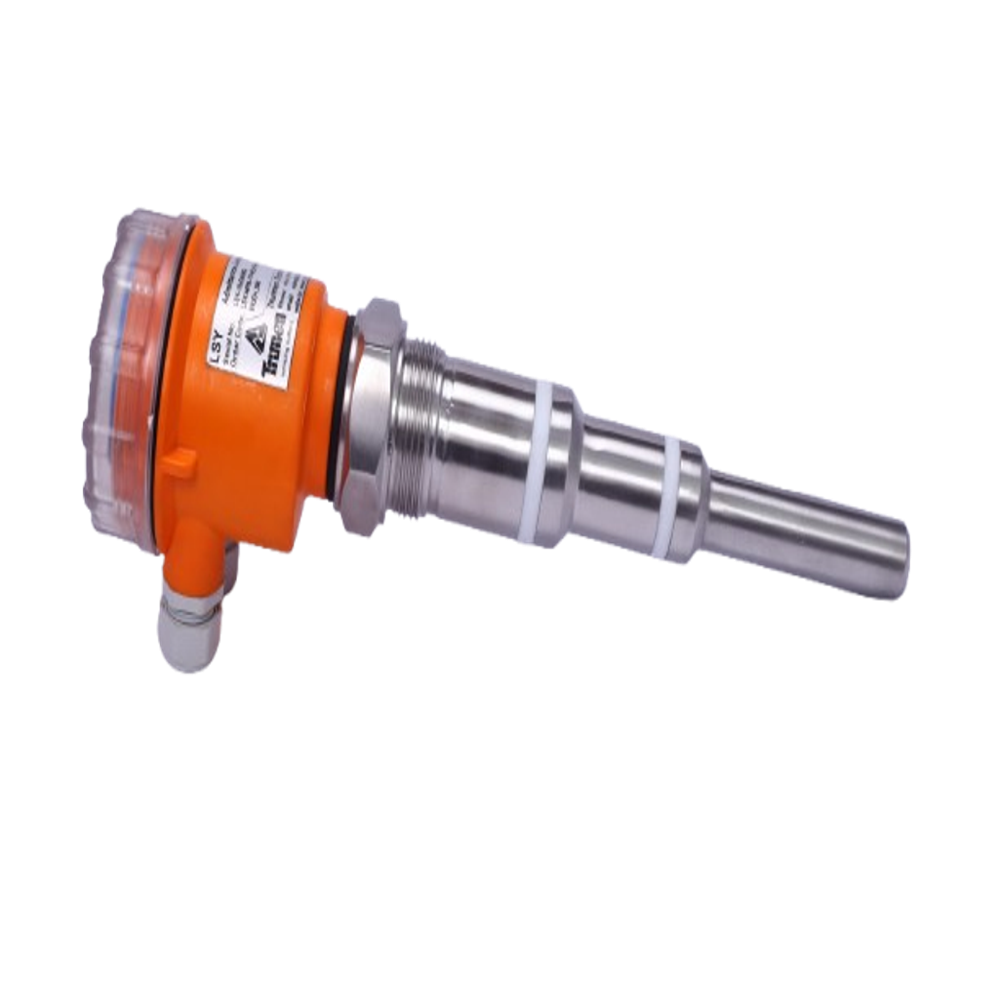

Admittance Level switch- lSY

Level Sensing Controller For Material Handling Industries can be operated under maximum 200 degree C operating temperature level. It can endure up to 230 V AC voltage level. It can be used for determining exact level of granular and powder based substances. Free from calibration, this controller is accessible in top and side mounting design choice. We also offer this product in remote electronic variant as per precise needs of clients. Application of SPDT switch, multipoint level measurement method and 15 bar of operating pressure are the key characteristics of this standard grade Level Sensing Controller For Material Handling Industries.

Features:

The operator can easily select minimum and maximum fail safe parameter of this product.
Energy efficient operation, calibration free operating principle
Ability to endure maximum 15 bar of operating pressure
Long working life, ergonomic design, affordable price, utilization of SPDT switch

Product details

Level Measurement Type	Point Level, Multi-Point Level
Media Type	Dry Material
Process Pressure	max. 15 bar
Process Temperature	max. 200 deg C
Switching Voltage	24 V DC or 230 V AC
Switch Type	SPDT
Working Pressure	15 bar
Brand	Trumen
Output Type	Current

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'RF Admittance Level Switch' category

Threaded Connection RF Admittance Point Level Switch Price : 13500.0 INR/Piece Minimum Order Quantity : 1 Color : Orange And Silver Size : compact Stoke : 10 Operating Temperature : Max. 200 degree celsius Celsius (oC) Material : SS304, SS 316, SS316L, PTFE, Part ceramic Max. Current : 5 Ampere (amp) Product Type : Level Switch Rated Voltage : 230 VAC Volt (V) Protection Level : IP65 Response Time : 1 Seconds Temperature Range : 20 to 100Deg C Celsius (oC) Current Rating : 15 to 80 VDC Volt (v) Mounting Type : Top and Side Mechanical Life : 5 Years Power Rating : 15 to 80 VDC and 15 to 260 VAC ranges Phase : Single Phase Features : Compact size , Low power consumption, temperature max 600 C, pressure max. 20 bar Display Type : Analog

Send Inquiry

Admittance Point Level Switch Price : 13000.0 INR/Piece Minimum Order Quantity : 1 Color : Orange and Silver Size : Rigid Rod Probe: 50mm to 3,000mm, Flexible Rope Probe: 100mm to 10,000mm Stoke : 10 Operating Temperature : 30 to 250 Celsius (oC) Material : SS304, SS 316, SS316L, PTFE, Part ceramic Max. Current : 15 to 80 VDC Volt (v) Volt (v) Product Type : Point Level Switch Rated Voltage : 230 VAC Volt (V) Protection Level : IP67/68 Response Time : 1 Seconds Temperature Range : 20 to 100 Celsius (oC) Current Rating : 5A at 24 VDC or 230 VAC Max. Voltage : 230 VAC Volt (V) Mounting Type : top, side, or threaded positions Mechanical Life : 5 Years Power Rating : 15 to 80 VDC and 15 to 260 VAC ranges Phase : Single Phase Circuit Type : PNP/NPN Features : process Temperature 600Deg C, Pressure 20bar, Compact size, Threaded / flanged / customized process connections Display Type : Analog

Send Inquiry

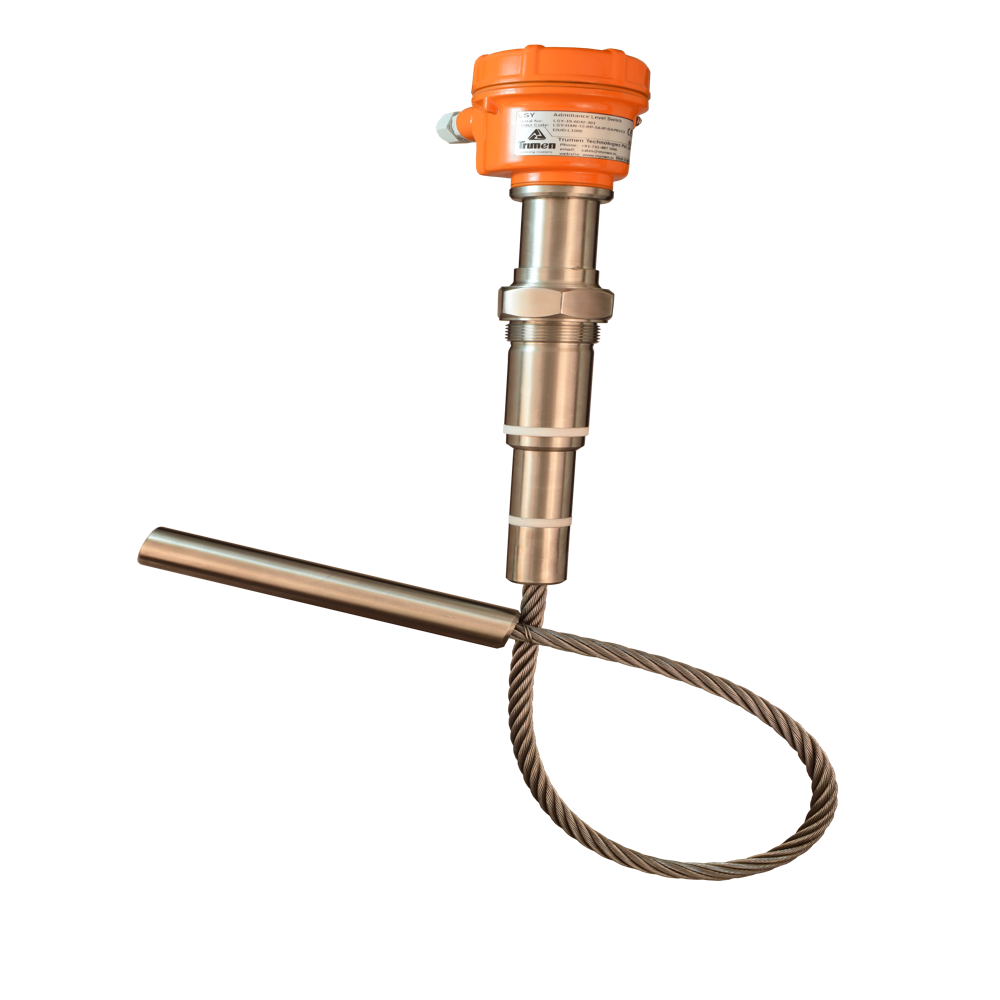

Flexible Rope Probe RF Admittance Level Switch Price : 14700.0 INR/Piece Minimum Order Quantity : 1 Color : Orange And Silver Size : Standard Stoke : 10 Operating Temperature : 600 Celsius (oC) Material : Steel Max. Current : 5 Ampere (amp) Product Type : Level Switch Rated Voltage : 230 Volt (V) Protection Level : IP67/68 Response Time : 1 Seconds Temperature Range : 600 C Celsius (oC) Current Rating : 5mA at 24VDC or 220VAC Max. Voltage : 220 Volt (V) Mounting Type : top and side Circuit Type : electronic type
